4 - 16

4. HOW TO MONITOR REDUNTANT SYSTEM

4.2 Direct CPU Connection

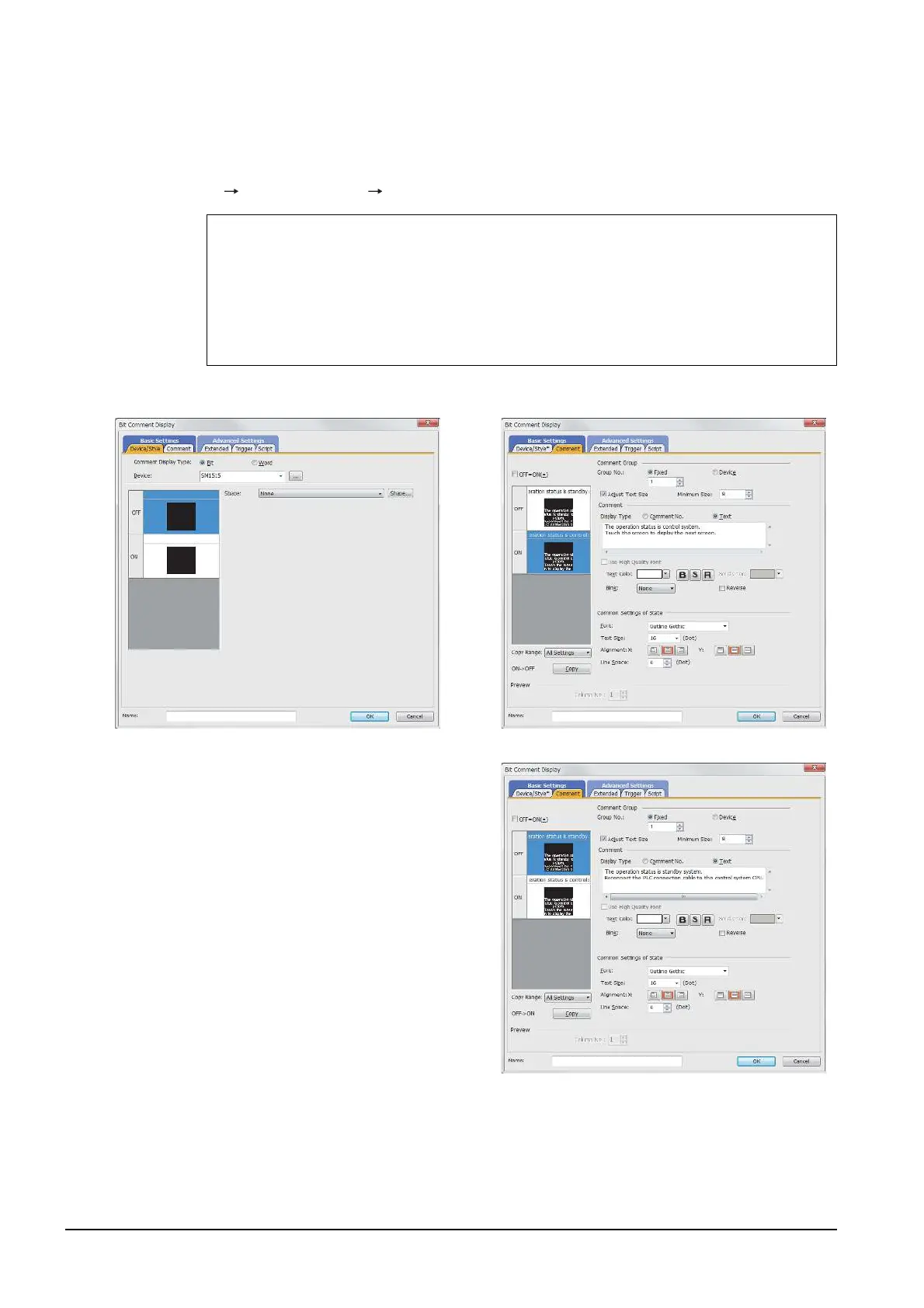

3. Set the comment display on the base screen 1.

Set a comment to be displayed on the base screen 1 depending on the system status (ON/OFF of the SM1515) of

the connected PLC CPU using the Comment Display (Bit).

Select [Object] [Comment Display] [Bit Comment] and set Comment Display (Bit).

Device/Style tab

Device : SM1515

Shape : None

Comment tab : Basic Comment

Comment Display Type Text (ON) : The operation status is control system.

Touch the screen to display the next screen.

Comment Display Type Text (OFF) : The operation status is standby system.

Reconnect the PLC connection cable to the control system CPU.

1) Device/Style tab screen 2) Comment tab screen (ON status)

3) Comment tab screen (OFF status)
