4. HOW TO MONITOR REDUNTANT SYSTEM

4.2 Direct CPU Connection

4 - 17

HOW TO MONITOR REDUNTANT SYSTEM

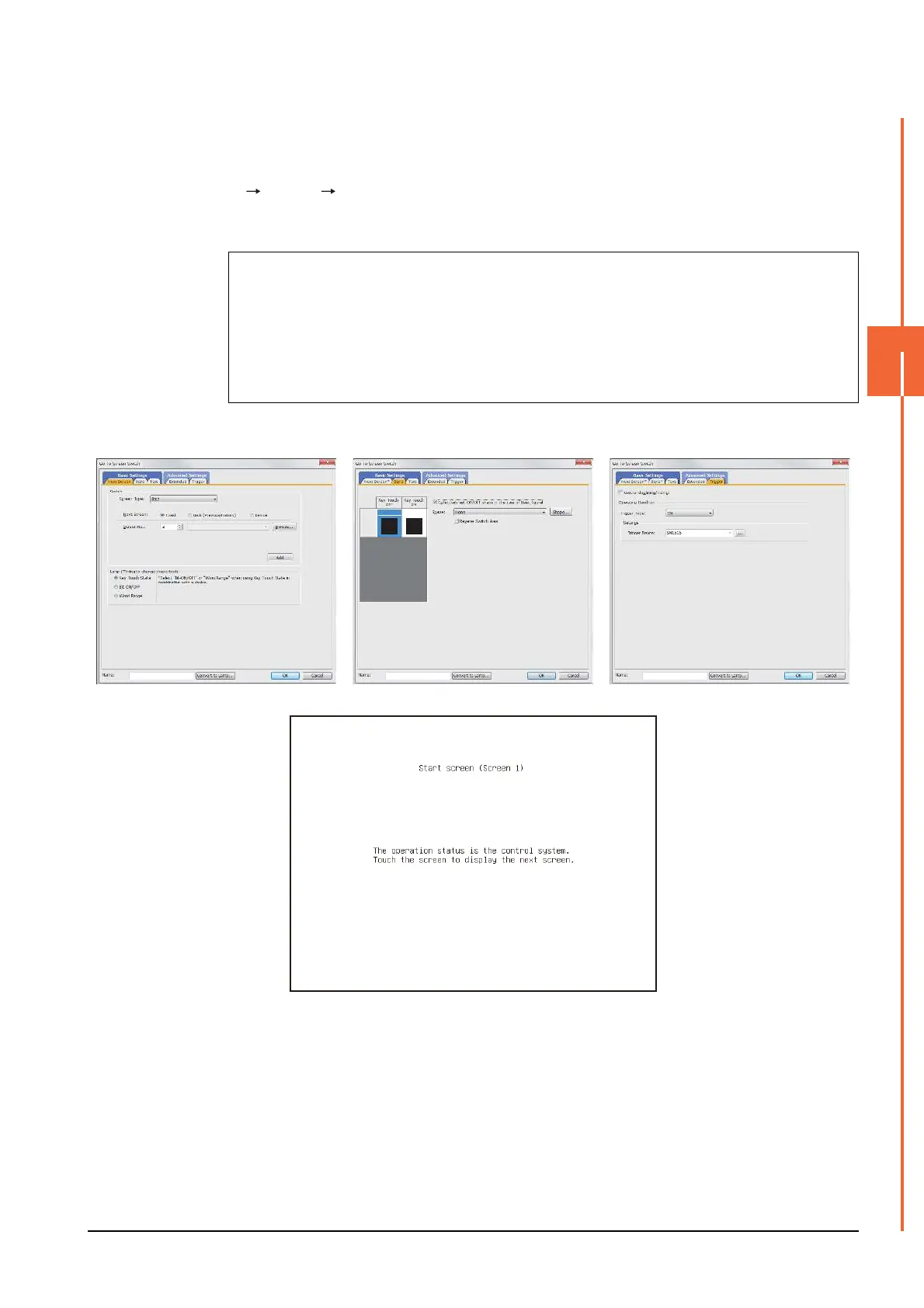

4. Set the touch switches on the base screen 1.

By using the go to screen switch function, set a touch switch for shifting the screen to the next screen with a screen

touch, when the connected PLC CPU is the control system (SM1515 is ON).

Select [Object] [Switch] [Go To Screen Switch] and set the screen switching function.

Set the same size for the touch switch as the base screen size so that touching any place of the screen enables the

switch operation.

Next Screen tab

Screen Type : Base

Go To Screen : Fixed 2

Style tab

Display Style : None (Shape)

Trigger tab

Trigger Type : ON

Trigger Device : SM1515

1) Next Screen tab 2) Style tab screen 3) Trigger tab screen

The following shows the created base screen 1.
