4. HOW TO MONITOR REDUNTANT SYSTEM
4.9 Q Redundant Setting
4 - 29
4
HOW TO MONITOR REDUNTANT SYSTEM
4.9 Q Redundant Setting
The following explains the setting for automatically change the monitoring target of the GOT when monitoring a QCPU
redundant system.
Before making the Q redundant setting
In the Q redundant setting, do not set stations other than redundant CPUs.

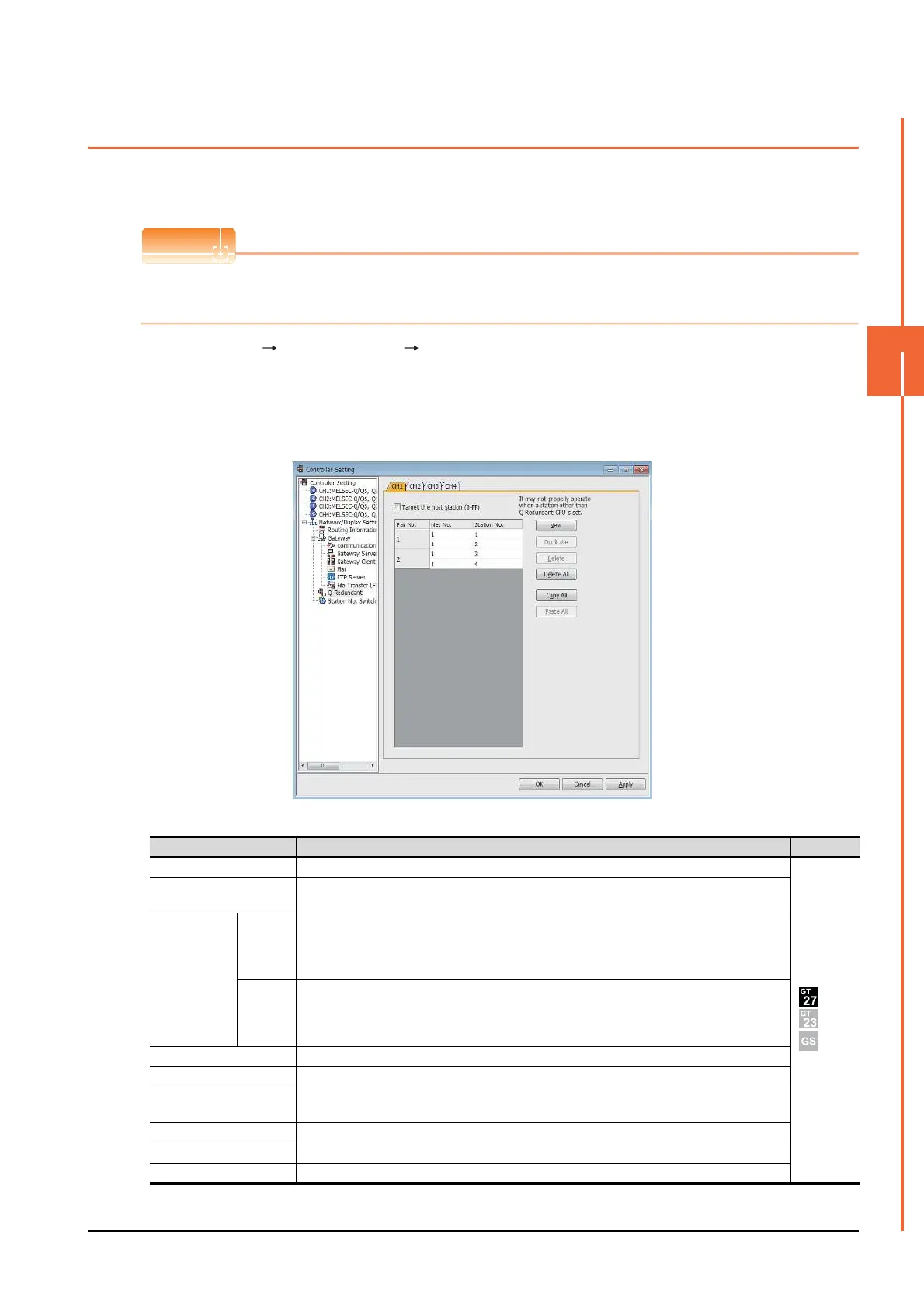

1. Select [Common] [Controller Setting] [Q Redundant] from the menu.
2. The setting dialog box appears. Make the settings with reference to the following explanation.
3. Make the settings for the Q redundant setting.
In the Q Redundant Setting dialog box, settings can be made for each channel of the controller.
(Example: Ethernet connection (Station No. 5), redundant CPU pair No. 1 and No. 2, redundant CPU station No. 1 to 4)
For details of *1, refer to the explanation below.
Item Contents Model
CH1 to CH4 Select a tab of the CH No. for the Q redundant setting.
Target at its own Station
(0-FF)
Select this item to monitor the control system as a host station.
(In Ethernet connection, not available even when selected)
Pair No.
*1
NW No.
Set the network No. (1 to 225) for each of pair numbers (1 to 64).
Upper row: Setting for the first redundant CPU.
Lower row: Setting for the second redundant CPU.
(The same value as the value set for the first redundant CPU is displayed)
Station
No.
Set the station No. (1 to 63) of the redundant CPU for each of pair numbers (1 to 64).
Upper row: Setting for the first redundant CPU.
Lower row: Setting for the second redundant CPU.
(The value of "Setting for the first redundant CPU" + 1 is displayed)
New Create a new pair No.
Duplicate Copies one setting of the selected pair number to append it at the last line.
Delete
Deletes one setting of the selected pair.
After deletion, the succeeding pair numbers are renumbered to fill the deleted pair number.
Delete All Deletes the setting of all pair numbers.
Copy All Copies the Q redundant setting on the selected CH No. tab.
Paste All Pastes the copied Q redundant setting in the selected CH No. tab.
To Next Page
