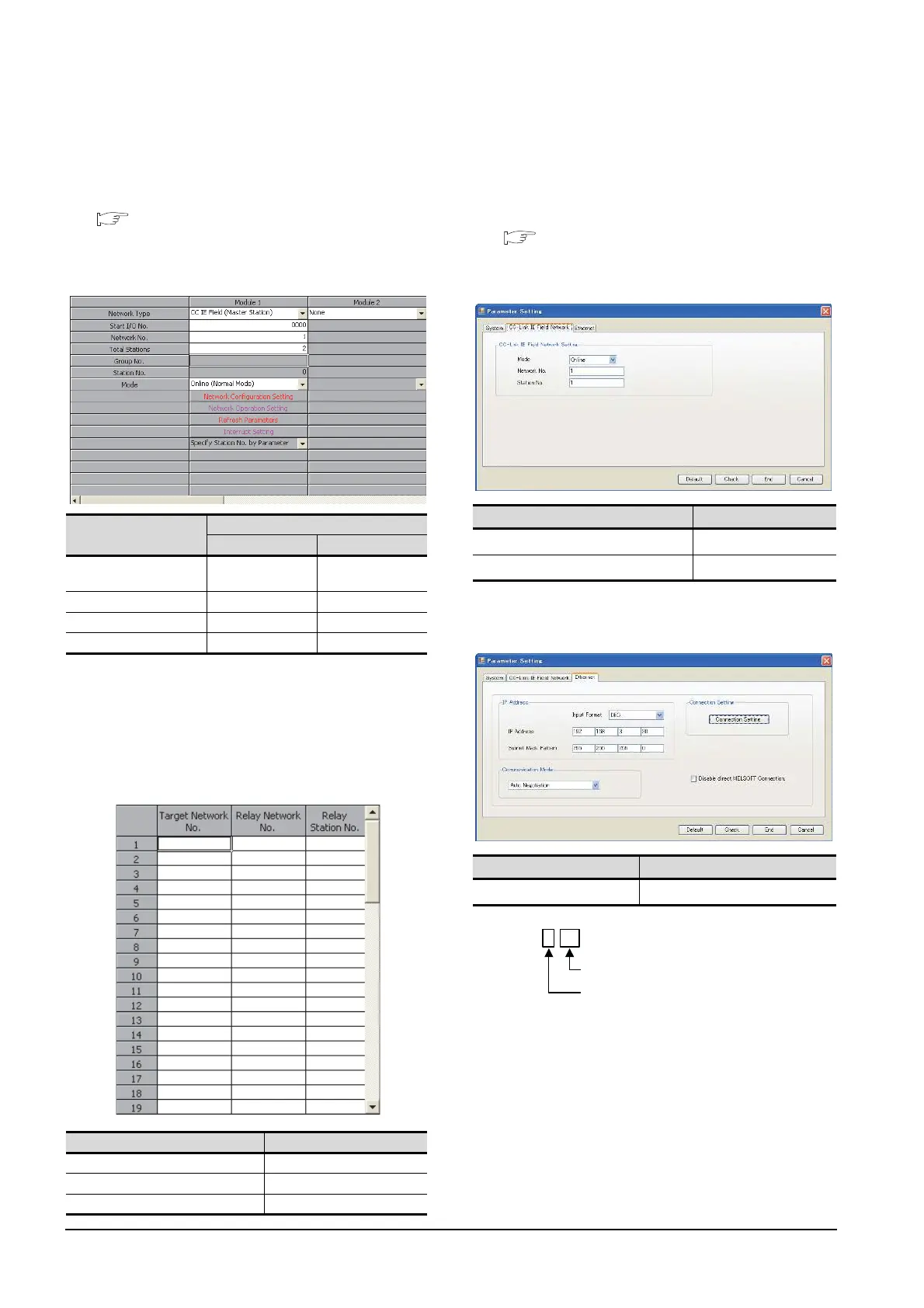

5 - 46
5. ETHERNET CONNECTION
5.4 PLC Side Setting
GX Works2 network parameter
Ethernet/CC IE/MELSECNET
For details of the setting contents of PLC side, refer to the
following manual.
MELSEC-Q CC-Link IE Field Network Master/
Local Module User's Manual
(1) Network Type, Network No., Total Stations setting
Example: Master station setting
(2) Routing parameter setting
Set the followings as necessary.
Up to 64 [Transfer Network No.]s can be set.
However, the same transfer network number cannot be
set twice or more (multiple times).
Therefore, the one that can access to other station from
the request source host GOT is 64 kinds of [Transfer
Network No.]s.
Ethernet Adapter Module setting
Set the parameter with the Ethernet adapter module
setting tool.
For details of the setting method, refer to the following
manual.
CC-Link IE Field Network Ethernet Adapter
Module User's Manual
(1) CC-Link IE Field Network setting
*1 Set the same value as the network No. set on the PLC side.
*2 Set a value other than the network No. set on the PLC side.
(2) Ethernet setting
*1 Set the IP address within the following range.
Item
Set value
Master station Local station
Network type
CC IE Field
(Master station)
CC IE Field
(Local station)
Network No. 1 1
Tota l Stat i o n s 2 -
Station No. 0 (fixed) 2
Item Range
Transfer Network No. 1 to 239
Relay Network No. 1 to 239
Relay Station No. 1 to 64
Item Set value
Network No.
1
*1
Station No.
1
*2
Item Set value
IP address
192.168.3.30
*1
192.168. 3. 30
Set the fourth octet within the range from 1 to 64.
Set the third octet within the range from 1 to 239.
