Mitsubishi GOT2000 Series Connection Manual

9 - 18
9. MELSECNET/H CONNECTION (PLC TO PLC NETWORK), MELSECNET/10 CONNECTION (PLC TO
PLC NETWORK)

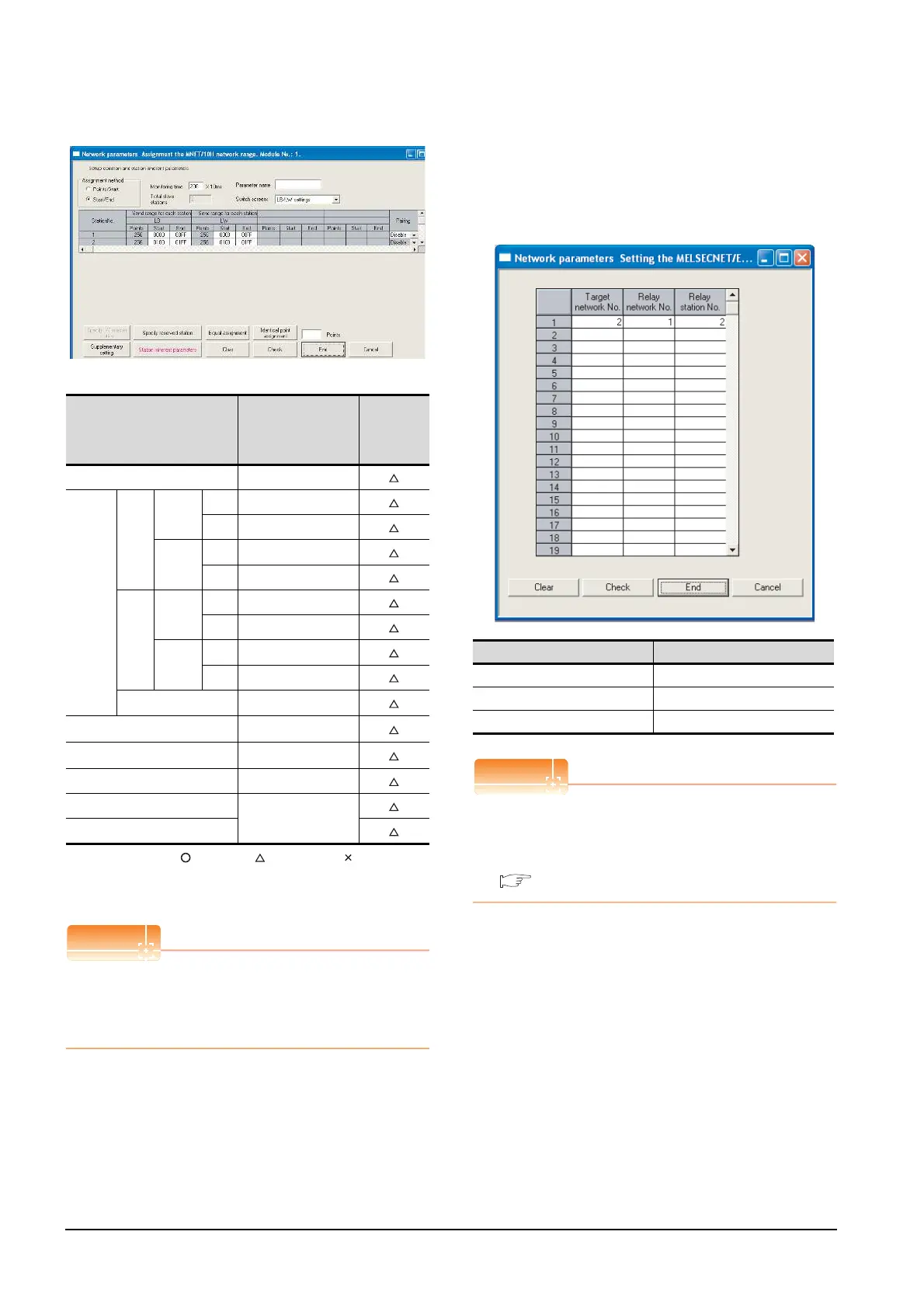

(b) Network range assignment
: Necessary : As necessary : Not necessary
*1 Be sure to set the setting to perform the cyclic transmission.
*2 Set it when the MELSECNET/H network module is used in
the redundant QnPRHCPU system.
POINTPOINTPOINT
When changing the network parameter
After writing the network parameter to the PLC CPU,
operate the PLC CPU ether turning OFF and then ON
or resetting.
(c) Routing parameter setting
Up to 64 [Transfer Network No.]s can be set.
However, the same transfer network number
cannot be set twice or more (multiple times).
Therefore, the one that can access to other station
from the request source host GOT is 64 kinds of
[Transfer Network No.]s.
POINTPOINTPOINT
Routing parameter setting of request source
Routing parameter setting is also necessary for the
request source GOT.
For the setting, refer to the following.
9.3.3 Routing parameter setting
Item Set value
Setting
necessity at
GOT
connection
Monitoring time 200
LB/LW
setting
*1
Send
range
for
station
(LB)
Station
No.1
Start 0000H
End 00FFH
Station
No.2
Start 0100
H
End 01FFH
Send
range
for
station
(LW)
Station
No.1
Start 0000
H
End 00FFH
Station
No.2
Start 0100
H
End 01FFH
Pairing setting
*2
Disable
LX/LY setting
*1
No setting
Specify I/O master station
*1
No setting
Specify reserved station No setting
Supplementary setting
(Use default value)
Station inherent parameters
Item Range
Target network No. 1 to 239
Relay network No. 1 to 239
Relay station No. 1 to 64
