Mitsubishi GOT2000 Series Connection Manual

9. MELSECNET/H CONNECTION (PLC TO PLC NETWORK), MELSECNET/10 CONNECTION (PLC TO
PLC NETWORK)
9 - 33
MELSECNET/H CONNECTION (PLC TO PLC NETWORK), MELSECNET/10 CONNECTION (PLC TO PLC NETWORK)
9

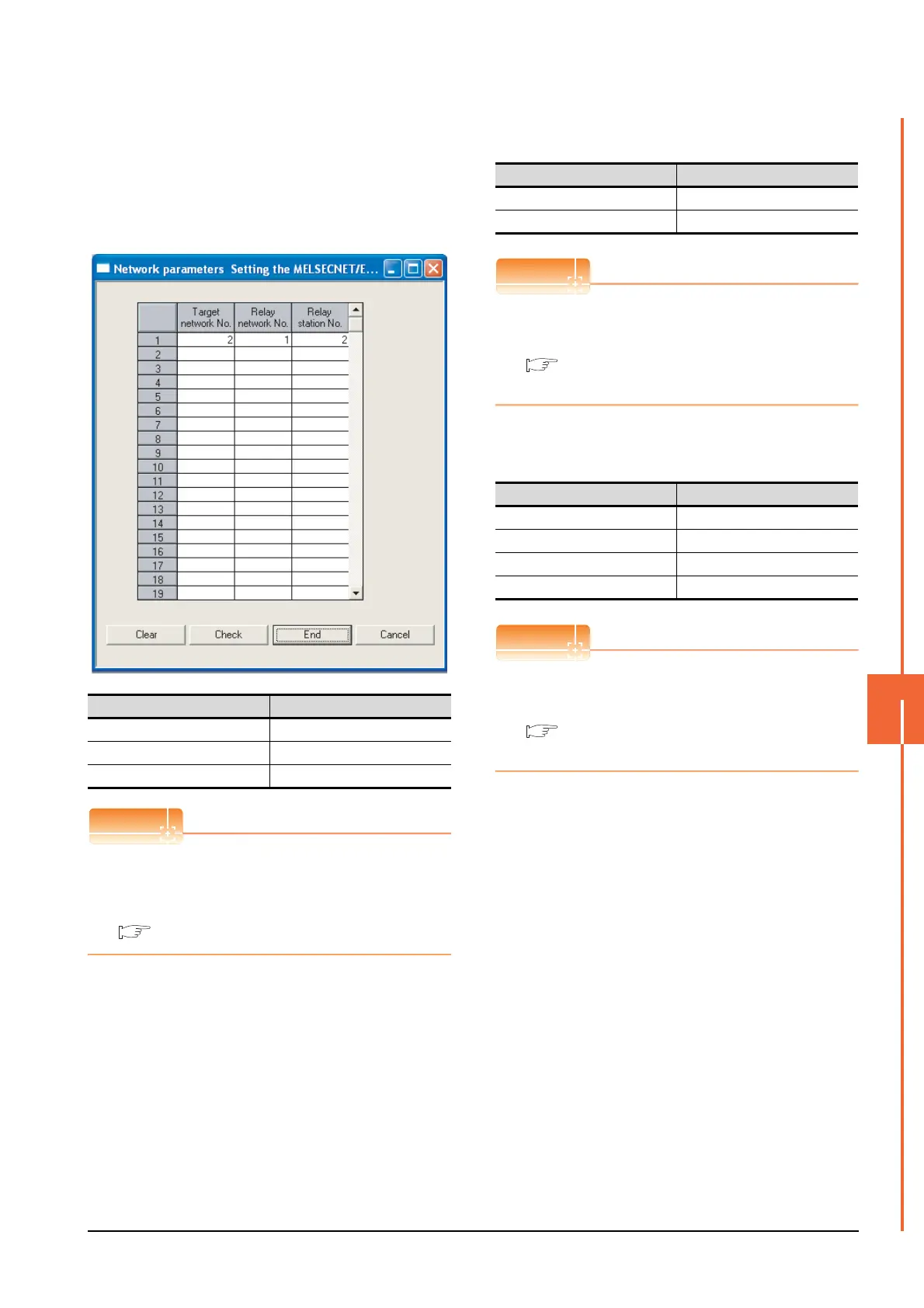

(3) Routing parameter setting
Up to 64 [Transfer Network No.]s can be set.
However, the same transfer network number cannot be
set twice or more (multiple times).
Therefore, the one that can access to other station from
the request source host GOT is 64 kinds of [Transfer
Network No.]s.
POINTPOINTPOINT
Routing parameter setting of request source
Routing parameter setting is also necessary for the
request source GOT.
For the setting, refer to the following.
9.3.3 Routing parameter setting
 [Controller Setting] of GT Designer3
POINTPOINTPOINT
[Controller Setting] of GT Designer3
For the setting method of [Controller Setting] of GT
Designer3, refer to the following.
9.3.1 Setting communication interface
(Communication settings)
 Setting of the MELSECNET/10
communication unit
POINTPOINTPOINT
Setting of the MELSECNET/10 communication unit
For the setting method of the MELSECNET/10
communication unit, refer to the following.
9.3.1 Setting communication interface
(Communication settings)
Item Range
Target network No. 1 to 239
Relay network No. 1 to 239
Relay station No. 1 to 64
Item Set value (Use default)
Retry 3times
Timeout Time 3sec
Item Set value
Network number setting switch 1: Network No.1
Group number setting switch 0: No group setting (fixed)
Station number setting switch 2: Station No.2
Mode setting switch 0: Online (fixed)

Mitsubishi GOT2000 Series Specifications

General

Power Supply	24VDC
Software	GT Works3
Processor	RISC CPU
Interface	Ethernet, USB, RS-232, RS-422/485
Operating Temperature	0°C to 50°C
Display Type	TFT LCD
Storage Temperature	-20°C to 60°C
Humidity	10% to 90% (non-condensing)
Shock Resistance	147 m/s² (15G), 11ms duration
Touch Panel	Analog Resistive
