Mitsubishi GOT2000 Series Connection Manual

9 - 32

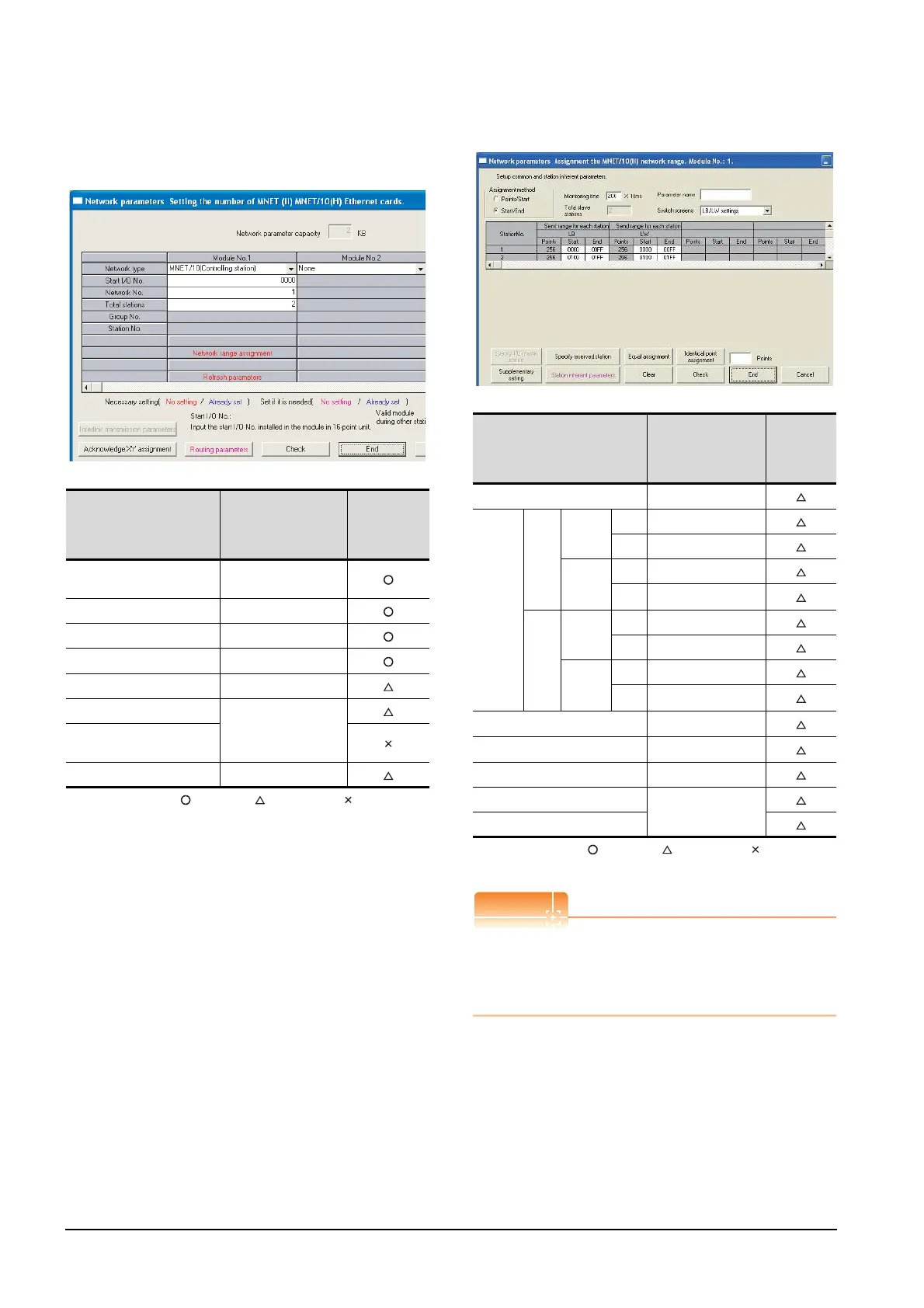

9. MELSECNET/H CONNECTION (PLC TO PLC NETWORK), MELSECNET/10 CONNECTION (PLC TO
PLC NETWORK)
 [Network parameter] of GX Developer
(1) Network parameter
: Necessary : As necessary : Not necessary
*1 Specify the same network No. as that of the network number
setting switch of the MELSECNET/10 network module.
(2) Network range assignment
: Necessary : As necessary : Not necessary
*1 Be sure to set it to perform the cyclic transmission.
POINTPOINTPOINT
When changing the network parameter
After writing the network parameter to the PLC CPU,
operate the PLC CPU ether turning OFF and then ON
or resetting.
Item Set value
Setting
necessity at
GOT
connection
Network type
MNET/10
(Control station) (fixed)
Start I/O No. 0000H
Network No.*1 1
Total stations 2
Network range assignment Refer to (2)
Refresh parameters
(Use default value)
Interlink transmission
parameters
Routing parameters Refer to (3)
Item Set value
Setting
necessity at
GOT
connection
Monitoring time 200
LB/LW
setting
*1
Send
range
for
each
station
(LB)
Station
No.1
Start 0000
H
End 00FFH
Station
No.2
Start 0100
H
End 01FFH
Send
range
for
each
station
(LW)
Station
No.1
Start 0000
H
End 00FFH
Station
No.2
Start 0100
H
End 01FFH
LX/LY setting
*1
No setting
Specify I/O master station*1 No setting
Specify reserved station No setting
Supplementary setting
(Use default value)
Station inherent parameters

Mitsubishi GOT2000 Series Specifications

General

Power Supply	24VDC
Software	GT Works3
Processor	RISC CPU
Interface	Ethernet, USB, RS-232, RS-422/485
Operating Temperature	0°C to 50°C
Display Type	TFT LCD
Storage Temperature	-20°C to 60°C
Humidity	10% to 90% (non-condensing)
Shock Resistance	147 m/s² (15G), 11ms duration
Touch Panel	Analog Resistive
