10. CC-Link IE CONTROLLER NETWORK CONNECTION
10.4 PLC Side Setting
 Parameter setting (when connecting to C
Controller module)
Use SW3PVC-CCPU-E Ver.3.05F or later for the CC IE
Control utility.

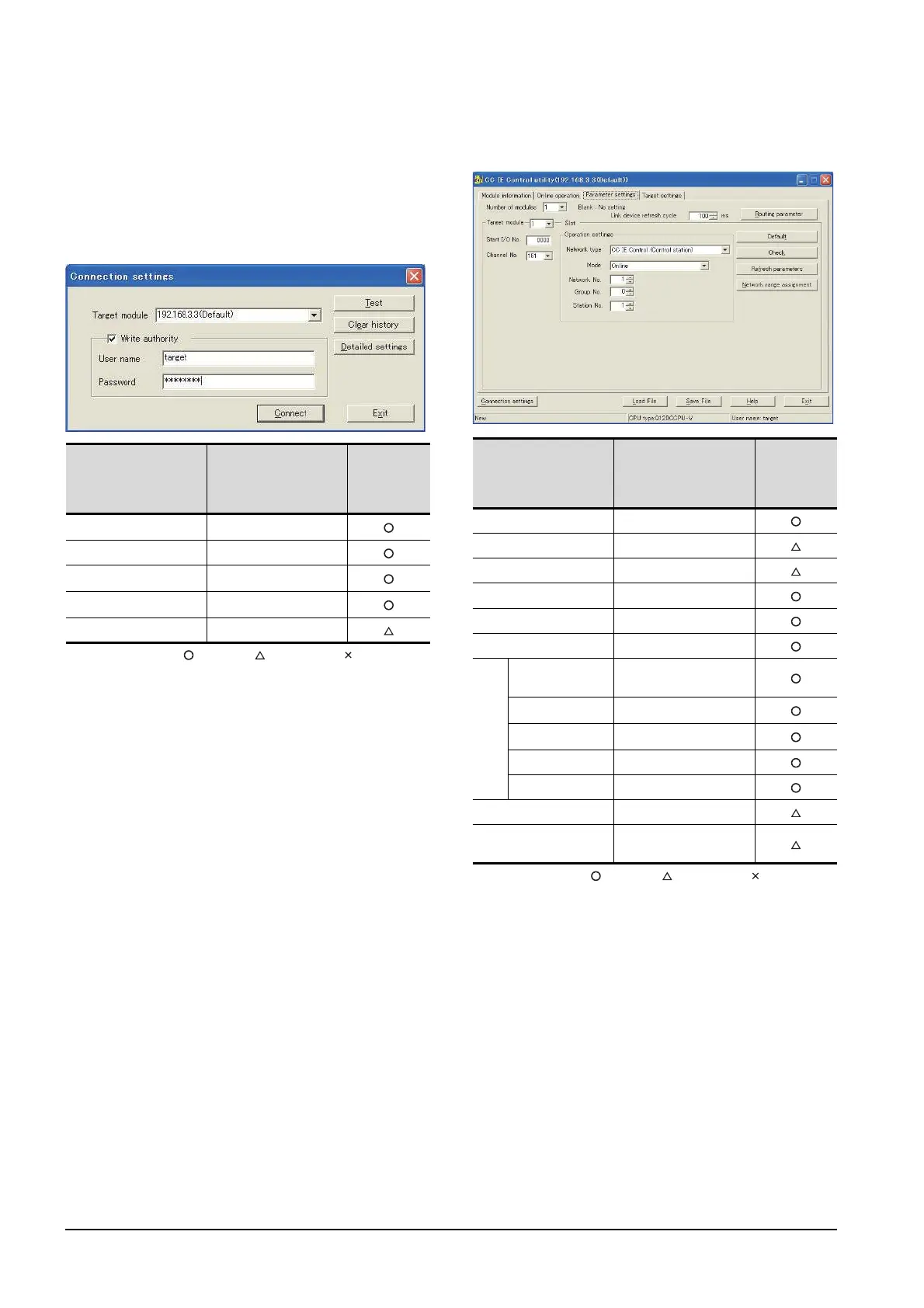

(1) Connection settings between personal computer
and C controller module
: Necessary : As necessary : Not necessary
*1 If the IP address of the C Controller module has been
changed, input the changed IP address or host name.
*2 If the account of the C Controller module has been changed,
input the changed user name and password.
(2) CC IE Control Utility's [Parameter Settings]
(a) Parameter settings
: Necessary : As necessary : Not necessary
*1 Set the same mode setting as that of the GOT.
*2 Specify the same network No. as that of the GOT.
Item Set value
Setting
necessity at
GOT
connection
Target module
*1
192.168.3.3 (Default)
Write authority Mark the checkbox
User name
*2
target
Password
*2
password
Detailed settings -
Item Set value
Setting
necessity at
GOT
connection
Number of modules 1
Link device refresh cycle (Use default value)
Routing parameter Refer to (c)
Target module 1
Start I/O No. 0000
H
Channel No. 151
Operation settings
Network type
CC IE Control
(Control station)
Mode
*1
Online
Network No.
*2
1
Group No. 0
Station No. 1
Refresh parameters (Use default value)
Network range
assignment
Refer to (b)
