Mitsubishi GOT2000 Series Connection Manual

10. CC-Link IE CONTROLLER NETWORK CONNECTION
10.4 PLC Side Setting
10 - 15
CC-Link IE CONTROLLER NETWORK CONNECTION
10

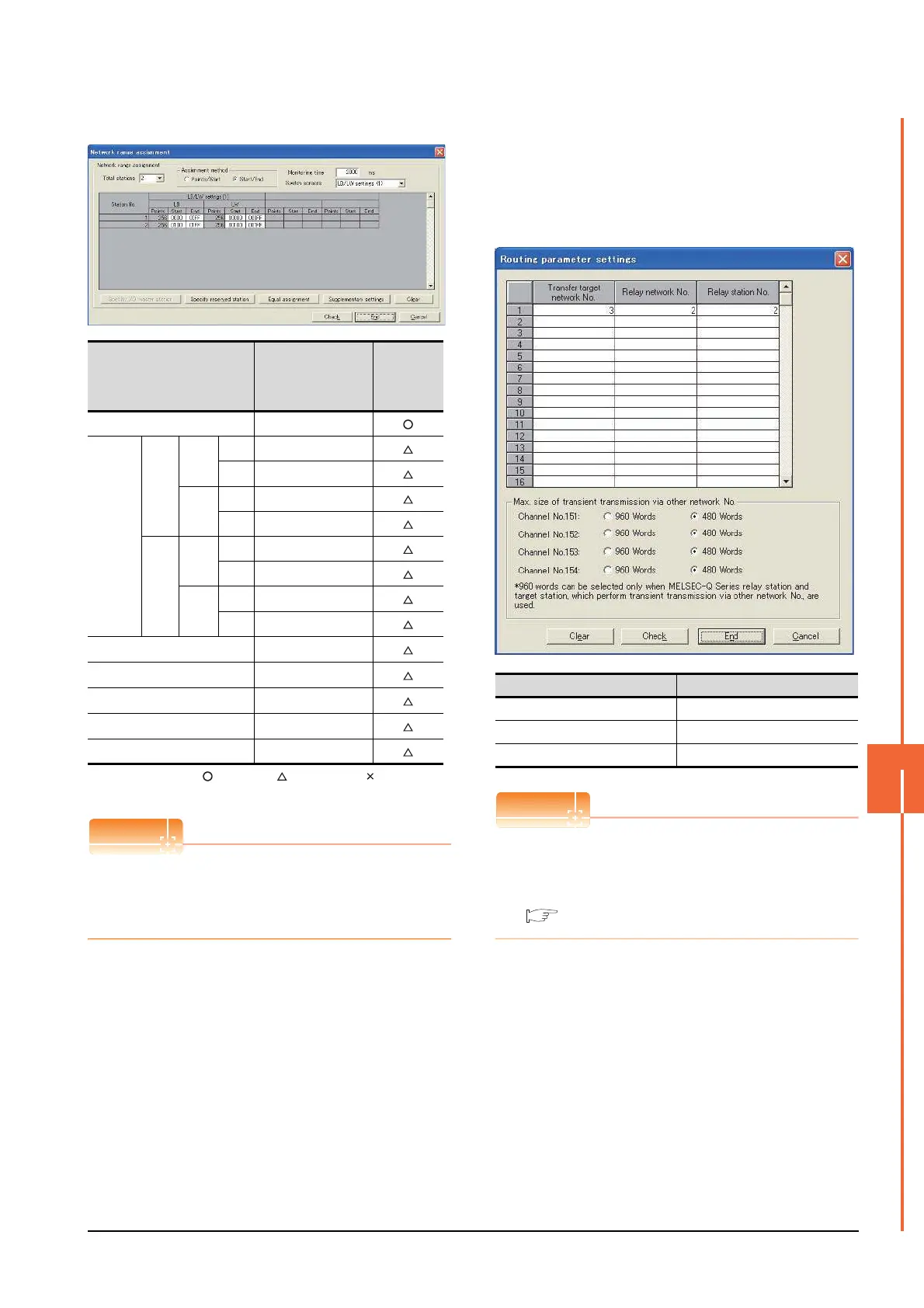

(b) Network range assignment
: Necessary : As necessary : Not necessary
*1 Be sure to set it to perform the cyclic transmission.
POINTPOINTPOINT
When changing the network parameter
After writing the network parameter to the C Controller
module, either turn the C Controller module OFF and
then ON or reset it.
(c) Routing parameter setting
Up to 64 [Transfer Network No.]s can be set.
However, the same transfer network number
cannot be set twice or more (multiple times).
Therefore, the one that can access to other station
from the request source host GOT is 64 kinds of
[Transfer Network No.]s.
POINTPOINTPOINT
Routing parameter setting of request source
Routing parameter setting is also necessary for the
request source GOT.
For the setting, refer to the following.
10.3.3 Routing parameter setting
Item Set value
Setting
necessity at
GOT
connection
Total stations 2
LB/LW
settings (1)
LB
Station
No.1
Start 0000
H
End 00FFH
Station
No.2
Start 0100
H
End 01FFH
LW
Station
No.1
Start 00000
H
End 000FFH
Station
No.2
Start 00100
H
End 001FFH
LX/LY settings
*1
No setting
Monitoring time (Use default value)
Specify I/O master station
*1
No setting
Specify reserved station No setting
Supplementary settings (Use default value)
Item Range
Transfer target network No. 1 to 239
Relay network No. 1 to 239
Relay station No. 1 to 120
