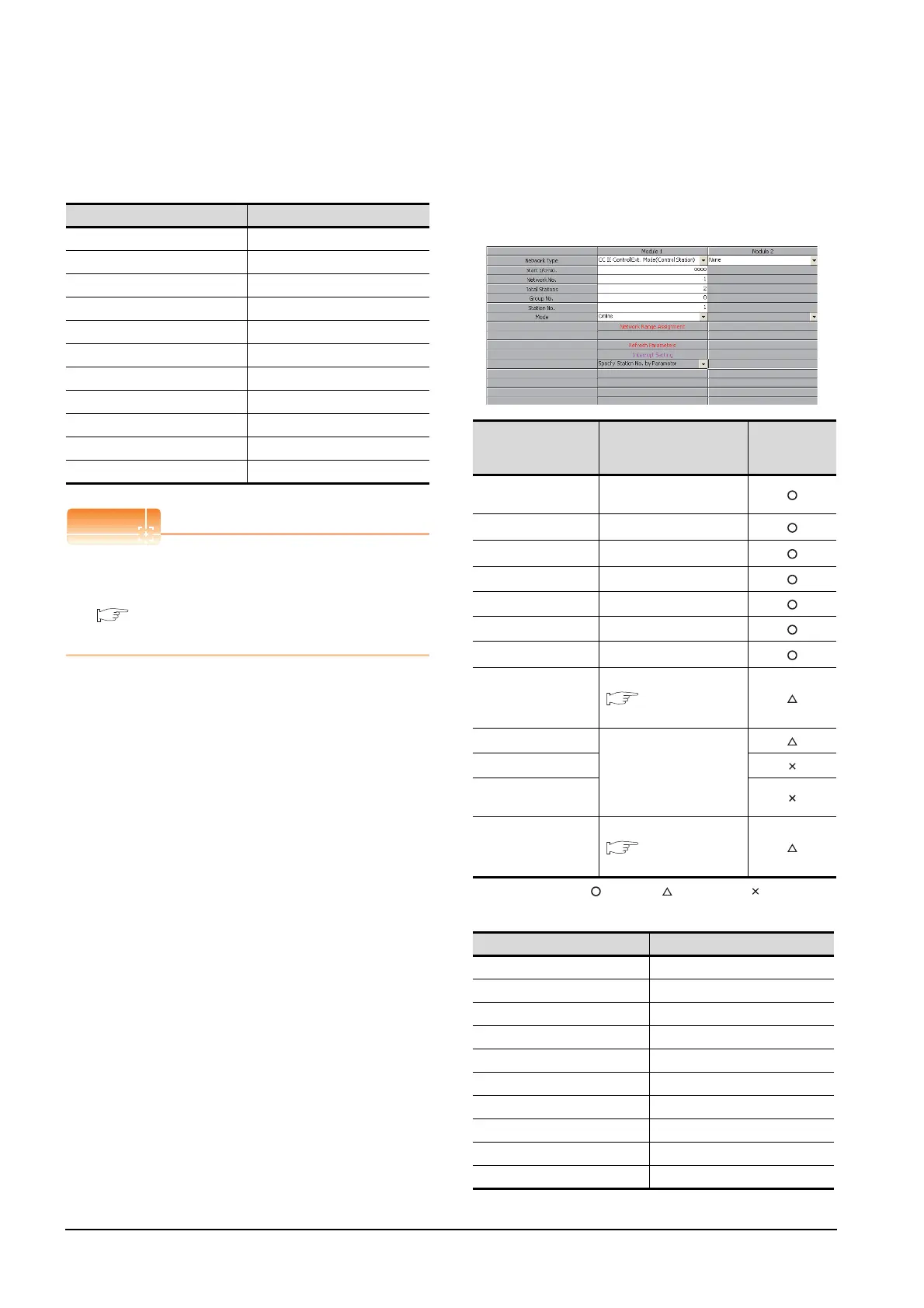

10. CC-Link IE CONTROLLER NETWORK CONNECTION
10.4 PLC Side Setting
 GT Designer3 [Communication settings] of
System configuration1 (Network Type: CC IE
Control)
POINTPOINTPOINT
[Controller Setting] of GT Designer3
For the setting method of [Controller Setting] of GT
Designer3, refer to the following.
10.3.1 Setting communication interface
(Communication settings)
 Parameter settings (Connection to Universal
model QCPU) of System configuration2
(Network Type: Extended mode)
(1) [Network parameter] of GX Works2
(a) Network parameter
: Necessary : As necessary : Not necessary
(2) [Controller Setting] of GT Designer3
Item Set value
Network Type CC IE Control
Network No. 1: Network No.1
Station No. 2: Station No.2
@@@ 0 (fixed)
Mode Setting Online (auto. reconnection)
@@@ 1 Gbps (fixed)
Refresh Interval 1ms (Use default value)
Retry 3times (Use default value)
Timeout Time 3sec (Use default value)
Delay Time 0ms (Use default value)
Monitor Speed High (@@@) (Use default value)
Item Set value
Setting necessity
at GOT
connection
Network Type
CC IE Control Ext. Mode
(Control station) (fixed)
Start I/O No.
*1
0000H
Network No.
*2
1
Tota l Stat i o n s 2
Group No. 0 (Fixed)
Station No. 1
Mode
*3
Online
Network Range
Assignment
Same as the following setting
[Network parameter]
of GX Developer
Refresh Parameters
(Use default value)
Interrupt Setting
Interlink transmission
parameters
Routing parameters
Same as the following setting
[Network parameter]
of GX Developer
Item Set value
Network type CC IE Control extended mode
Network No. 1: Network No.1
Station No. 2: Station No.2
@@@ 0 (Fixed)
Mode Online (auto. reconnection)
Refresh Interval High (Use default value)
Retry 3times (Use default value)
Timeout Time 3sec (Use default value)
Delay Time 1ms (Use default value)
Monitor Speed High (@@@) (Use default value)
