1. PREPARATORY PROCEDURES FOR MONITORING
1.3 Option Devices for the Respective Connection
 When using a MELSECNET/H communication unit, CC-Link IE Controller Network
communication unit, CC-Link IE Field Network communication unit, or CC-Link communication
unit (GT15-J61BT13)
Install a MELSECNET/H communication unit, CC-Link IE Controller Network communication unit, CC-Link IE Field
Network communication unit, or CC-Link communication unit in the 1st stage of an extension interface.
If a bus connection unit is installed in the 2nd stage or above, the unit cannot be used.

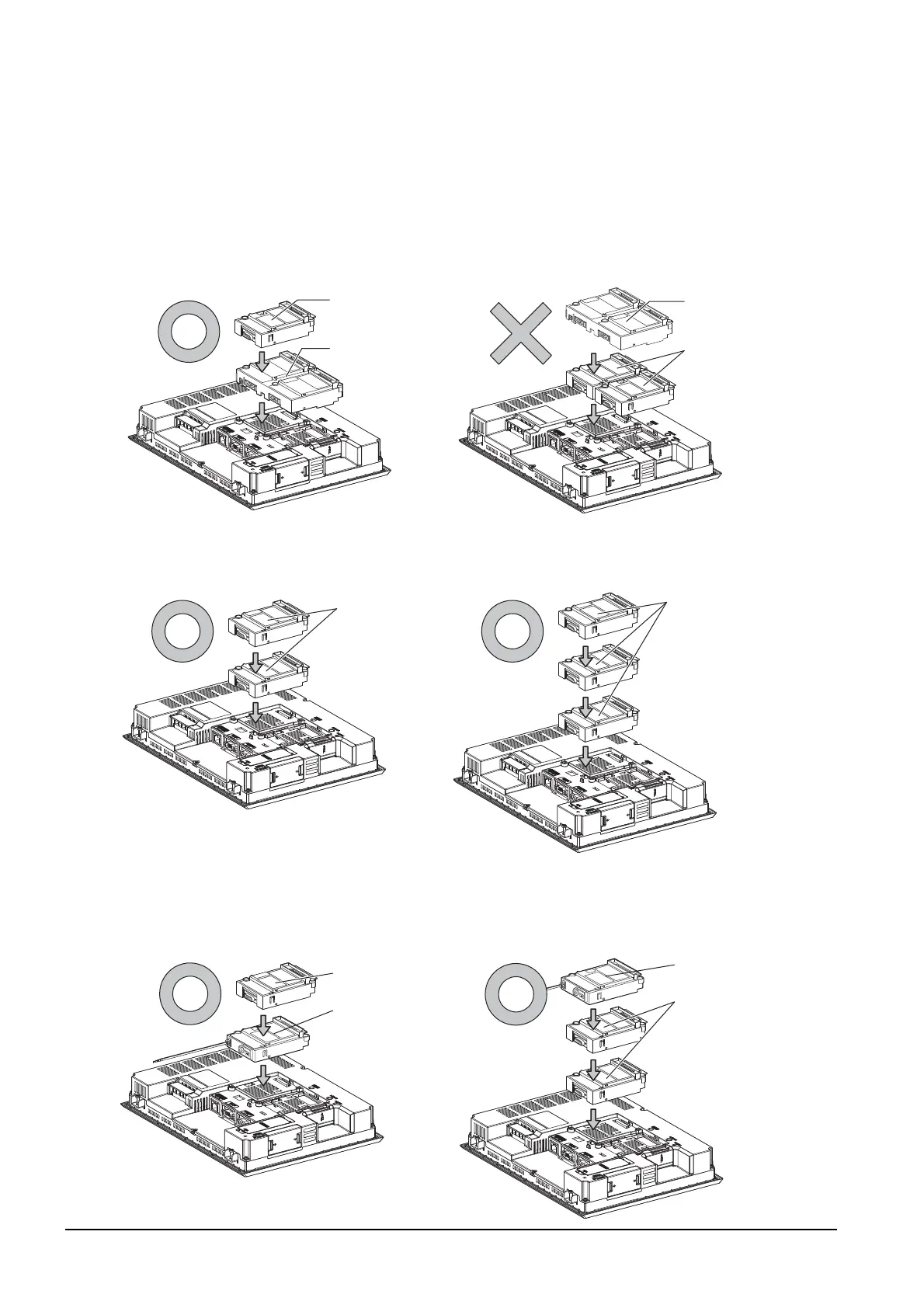

Example: When installing a MELSECNET/H communication unit and a serial communication unit
 When using a serial communication unit
A serial communication unit can be installed in any position (1st to 3rd stage) of the extension interface.
 When using the sound output unit or external I/O unit
The sound output unit or external I/O unit can be installed in any position (1st to 3rd stage) of the extension interface.
Example: When installing a sound output unit
Serial communication unit
MELSECNET/H
communication unit
MELSECNET/H
communication unit
Serial communication unit
Serial
communication
unit
Serial
communication
unit
Sound output
unit
Communication
unit
Sound output
unit
Communication
unit

Mitsubishi GOT2000 Series Specifications

General

Power Supply	24VDC
Software	GT Works3
Processor	RISC CPU
Interface	Ethernet, USB, RS-232, RS-422/485
Operating Temperature	0°C to 50°C
Display Type	TFT LCD
Storage Temperature	-20°C to 60°C
Humidity	10% to 90% (non-condensing)
Shock Resistance	147 m/s² (15G), 11ms duration
Touch Panel	Analog Resistive
