PREPARATORY PROCEDURES FOR MONITORING
 When using the video input unit, RGB input unit, video/RGB input unit, RGB output unit, or
multimedia unit

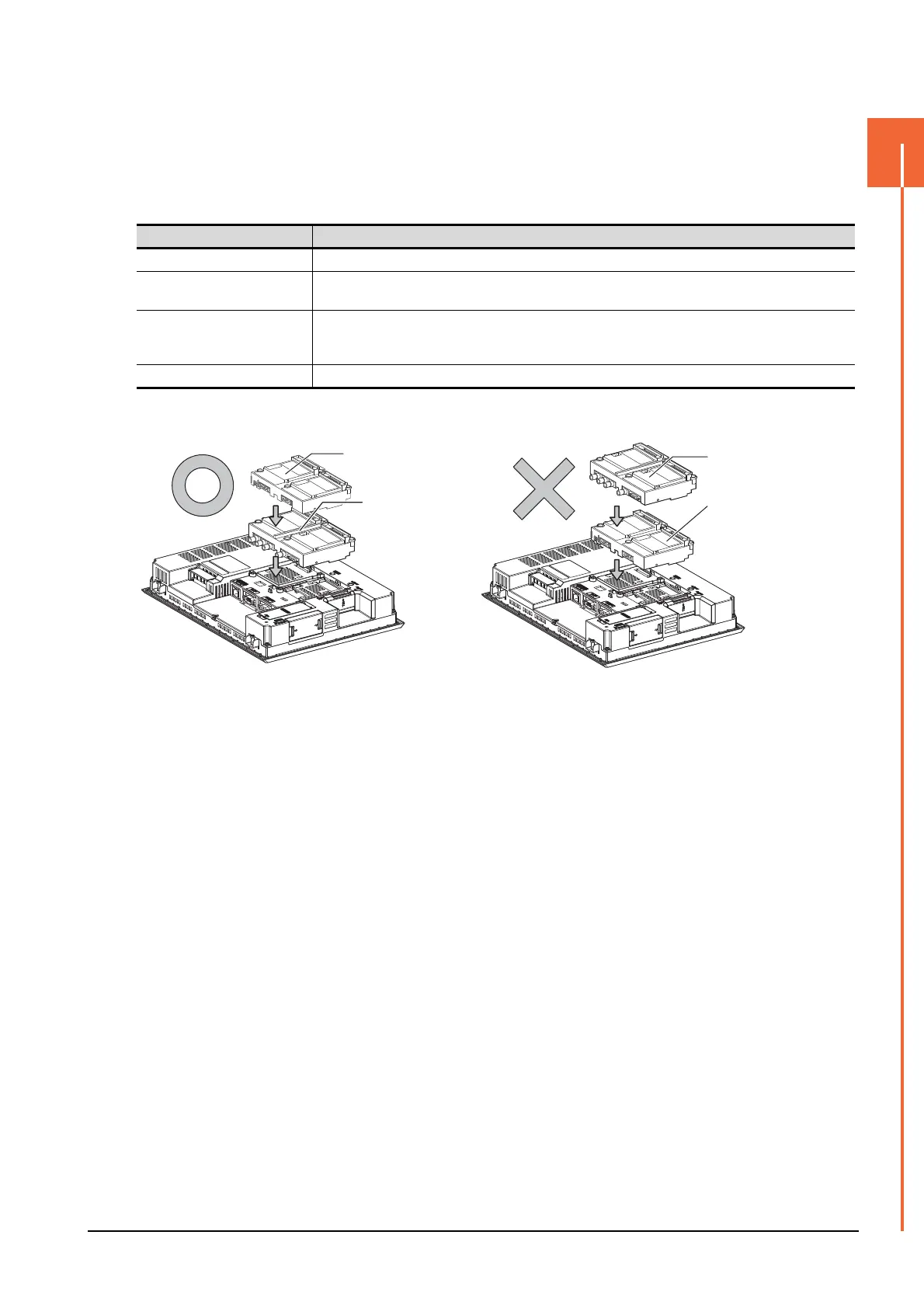

Install the video input unit, RGB input unit, video/RGB input unit, RGB output unit, or multimedia unit at the 1st stage
of the extension interface. These communication units cannot be used if installed in the 2nd or higher stage.
When any of these units is used, the communication units indicated below must be installed in the 2nd stage of the
extension interface.
Example: When installing a video input unit and a MELSECNET/H communication unit
Communication unit Model
Bus connection unit GT15-QBUS2, GT15-ABUS2
MELSECNET/H communication
unit
GT15-J71LP23-25, GT15-J71BR13
CC-Link IE Controller Network
connection GT15-J71GP23-SX
CC-Link communication unit GT15-J61BT13
MELSECNET/H
communication unit
Video/RGB
input unit
Video/RGB
input unit
MELSECNET/H
communication unit

Mitsubishi GOT2000 Series Specifications

General

Power Supply	24VDC
Software	GT Works3
Processor	RISC CPU
Interface	Ethernet, USB, RS-232, RS-422/485
Operating Temperature	0°C to 50°C
Display Type	TFT LCD
Storage Temperature	-20°C to 60°C
Humidity	10% to 90% (non-condensing)
Shock Resistance	147 m/s² (15G), 11ms duration
Touch Panel	Analog Resistive
