17. CNC CONNECTION
17.4 GOT Side Settings
17 - 9
17
CNC CONNECTION
(2) MELSECNET/H (used in the MNET/10 mode)
*1 For details, refer to the following manual.
Q corresponding MELSECNET/H Network System
Reference Manual (PLC to PLC network)
When MELSECNET/H communication unit is used
When connecting to the MELSECNET/10 network
using the MELSECNET/H communication unit,
specify [MNET/10 mode] as [Network Type].

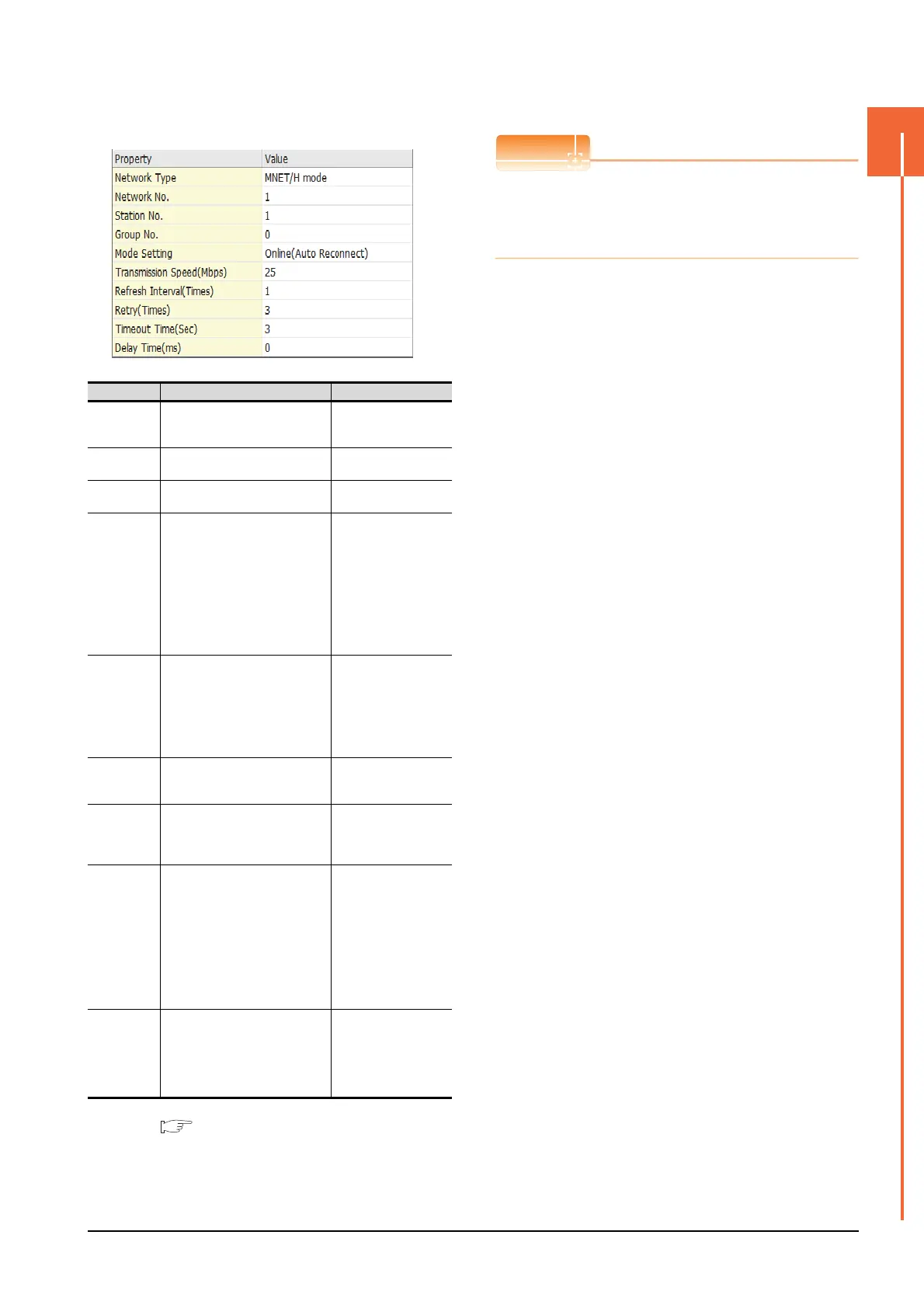

Item Description Range
Network Type
Set the network type.
(Default: MNET/H mode)
• MNET/H mode
• MNET/10 mode
• MNET/H EXT mode
Network No.
Set the network No.
(Default: 1)
1 to 239
Station No.
Set the station No. of the GOT.
(Default: 1)
1 to 64
Mode Setting
Set the operation mode of the
GOT.
(Default:
Online (auto. reconnection))
• Online
(auto. reconnection)
• Offline
• Test between
slave station
*1
• Self-loopback test
*1
• Internal self-
loopback test
*1
• H/W test
*1
Retry
Set the number of retries to be
performed when a communication
timeout occurs.
When receiving no response after
retries, the communication times
out.
(Default: 3times)
0 to 5times
Timeout Time
Set the time period for a
communication to time out.
(Default: 3sec)
1 to 90sec
Delay Time
Set the delay time for reducing the
load of the network/destination
PLC.
(Default: 0ms)
0 to 300ms
Refresh
Interval
Set the number of refreshes to
secure the send/receive data in
station units during
communication.
(Default: 1time)
Valid when [Secured data send/
Secured data receive] is marked
by the control station side network
parameters of the MELSECNET/H
network system.
1 to 1000times
Transmission
Speed
Set the communication
transmission speed.
(Default: 25Mbps)
When specifying [MNET/10 mode]
as the network type, only 10Mbps
can be set applicable.
10Mbps/25Mbps
To Next Page
