19. MULTI-CHANNEL FUNCTION
19.3 GOT Side Settings
Determining the channel No.
(1) Channel No. of PLC, motion controller, temperature controller, inverter, servo amplifier, CNC, robot
controller
After determining the connection type to be used, determine the channel Nos. (CH No. 1 to CH No. 4) to be
used for the respective connection types.
There are no special cautions to be attended to for determining channel Nos.
Set the channel No. by selecting [Common] [Controller Setting] from the menu.
1.1.1 Setting connected equipment (Channel setting)
(2) Channel No. of external devices (fingerprint unit, barcode reader, RFID controller, personal computer and
serial printer)
When connecting a barcode reader, RFID controller, or personal computer, select the channel No. (No. 5 to No.
8) for each external device.
(a) Number of external devices that can be connected to the GOT
One barcode reader, RFID controller, or personal computer can be connected to one GOT.
One driver must be set for one channel No. (No. 5 to No. 8) in the communication settings.
(b) Operator authentication (external authentication)
When using the operator authentication (external authentication), the RFID controller is available for the
channel No. 8 only.
(c) External devices that requires the power supply from the GOT
When using the barcode reader or RFID controller that requires the power supply from the GOT, set the
channel No.8.
When the channel No.5 to No.7 is set, the GOT cannot supply the power.
19.5

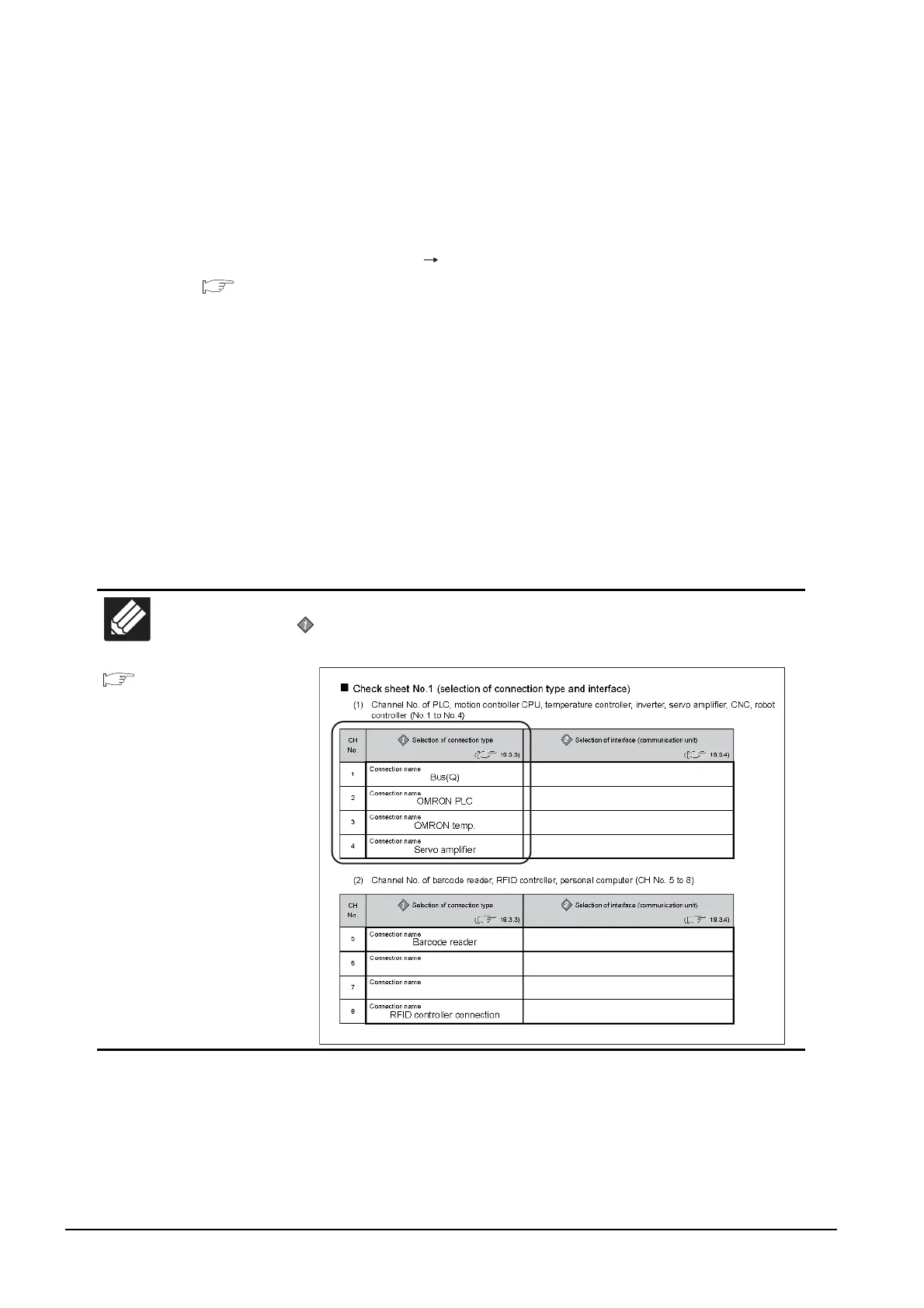

Multi-channel Function Check Sheet
Write down the following items selected in this section to the check sheet.
Selection of connection type
Write down the name of connection type to be used.
