20. FA TRANSPARENT FUNCTION

20.6 Personal Computer Side Setting

20 - 35

FA TRANSPARENT FUNCTION



Connecting the GOT and PLC in computer link

connection(when connected to the QJ71C24(N))

(GX Configurator is not supported.)

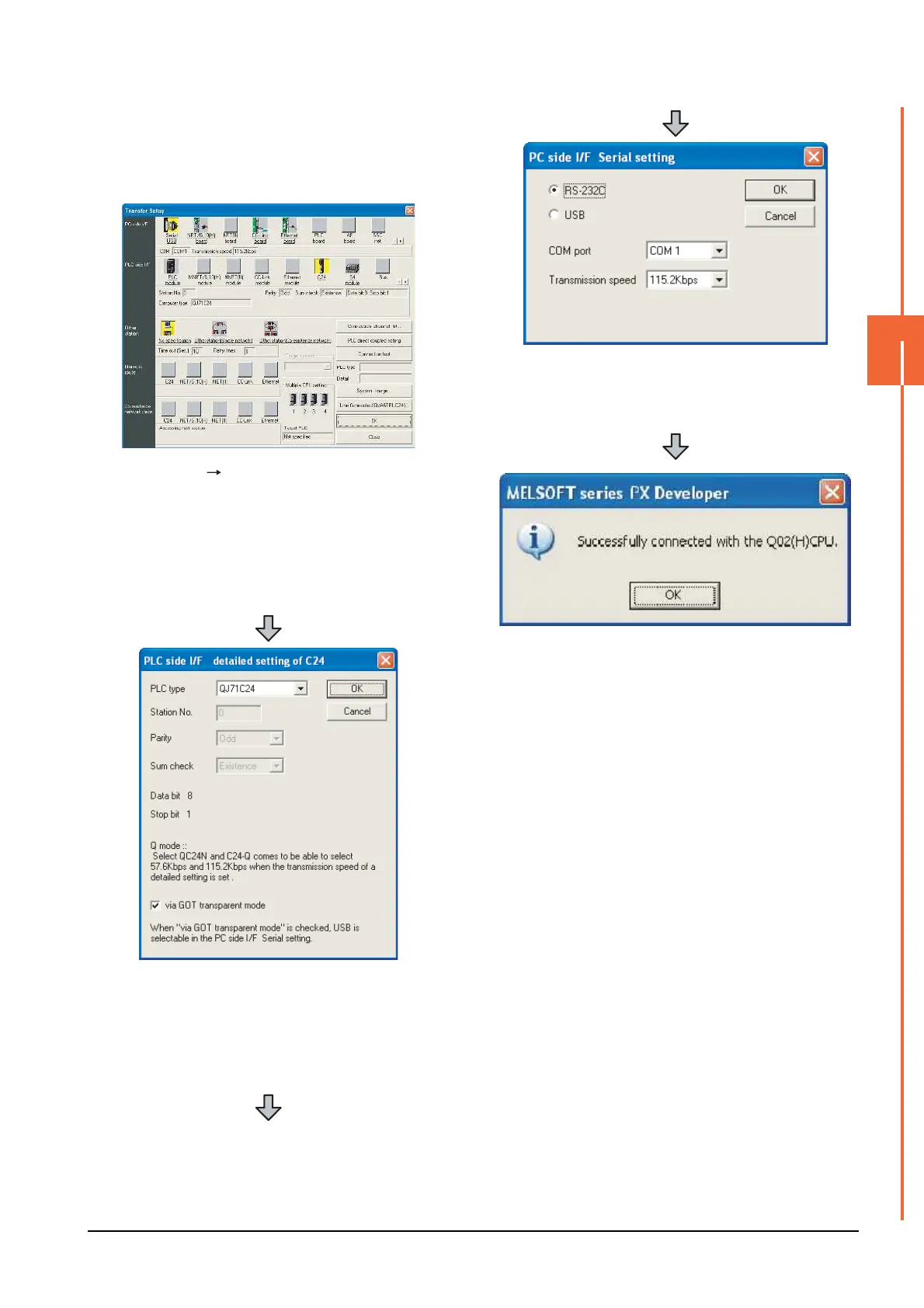

1. Click [Online] [Transfer Setup] in PX Developer.

2. The [Transfer Setup] is displayed.

3. Set the [Transfer Setup]:

PC side I/F : Serial

PLC side I/F : C24

Other station : No specification

4. Return to [Transfer Setup] and double-click [C24] of

the PLC side I/F to display [PLC side I/F detailed

setting of C24].

5. Check [via GOT transparent mode] for [PLC side I/F

detailed setting of C24].

6. Double-click [Serial] of the PC side I/F to display [PC

side I/F Serial setting].

7. Select [USB] in the [PC side I/F Serial Setting] dialog.

8. The screen returns to [Transfer Setup]. Click

[Connection Test] to check if PX Developer has been

connected to the QCPU (Q mode).
