20 - 44
20. FA TRANSPARENT FUNCTION
20.6 Personal Computer Side Setting

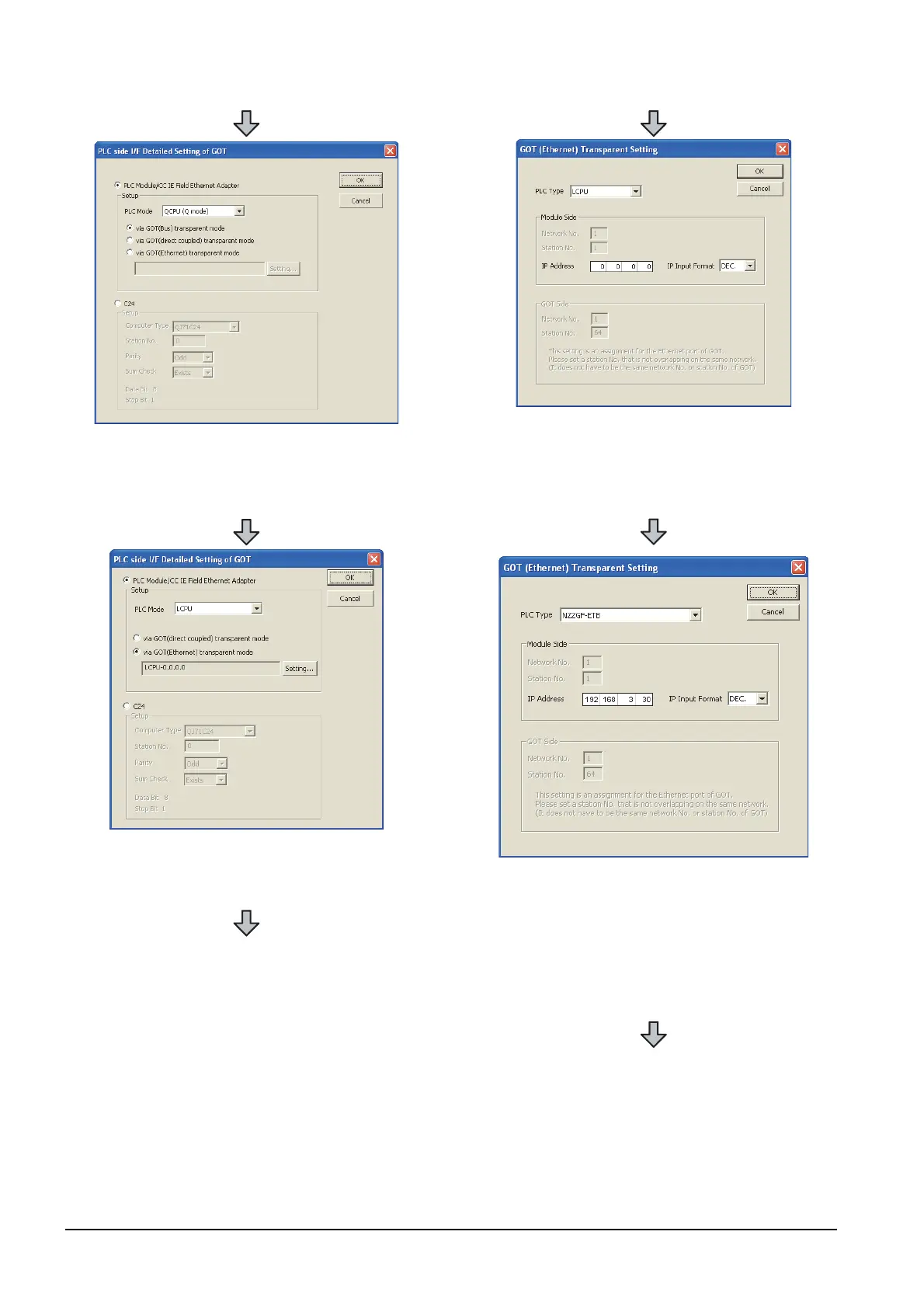

6. Double-click [GOT] of the PLC side I/F to display
[PLC side I/F Detailed Setting of GOT].
7. Set the [CPU mode] to [LCPU].
8. On the[PLC side I/F Detailed Setting of GOT], mark
the [via GOT(Ethernet) transparent mode] checkbox
and click [Setting...].
9. [GOT (Ethernet) Transparent Setting] is displayed.
Here, set the Ethernet module, which is firstly
connected via a GOT.
10.Set [NZ2GF-ETB] for [PLC Type].
11. Set the same number to [IP address] as the number
assigned to NZ2GF-ETB, and click [OK].
In the system configuration example, the setting is as
follows.
[IP address]: 192 168 3 30
12.Return to [PLC side I/F Detailed Setting of GOT], and
click [OK].
To Next Page
