20. FA TRANSPARENT FUNCTION
20.6 Personal Computer Side Setting
20 - 45
20
FA TRANSPARENT FUNCTION

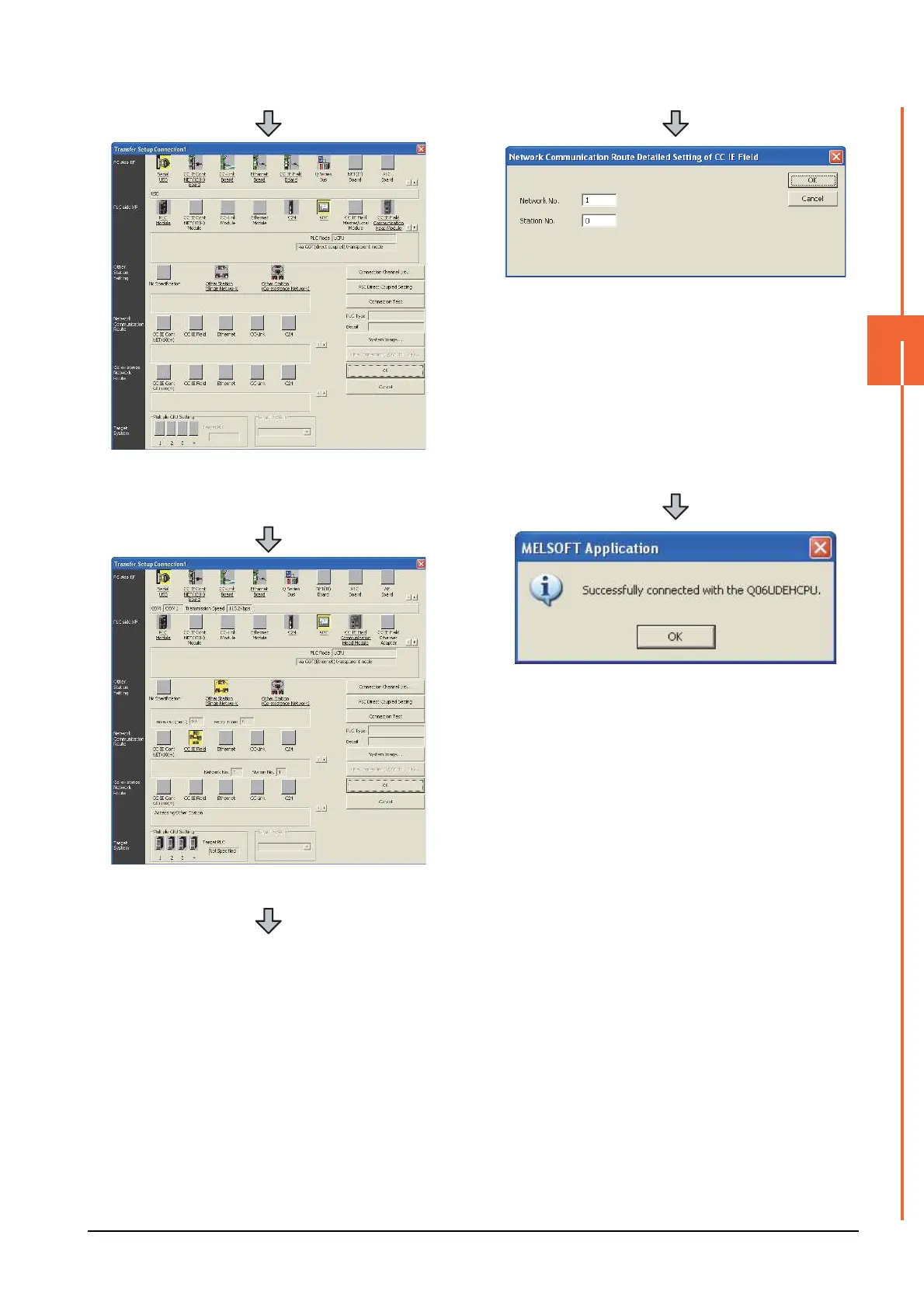

13.The [Transfer Setup Connection1] is displayed.
14.Click [Other station (Single network)].
15.Double-click [CC IE Field].
16.Network Communication Route Detailed Setting of
CC IE Field is displayed.
17.Set [Network No.] and [Station No.] assigned to CPU,
and click [OK].
When connecting to CC-Link IE Field Network
Master/Local module of the system configuration
example, the setting is as follows.
[Network No.] :1
[Station No.] :0
18.The screen returns to [Transfer Setup]. Click
[Connection Test] to check if GX Works2 has been
connected to the QCPU (Q mode).
To Next Page
