20. FA TRANSPARENT FUNCTION

20.6 Personal Computer Side Setting

20 - 47

FA TRANSPARENT FUNCTION

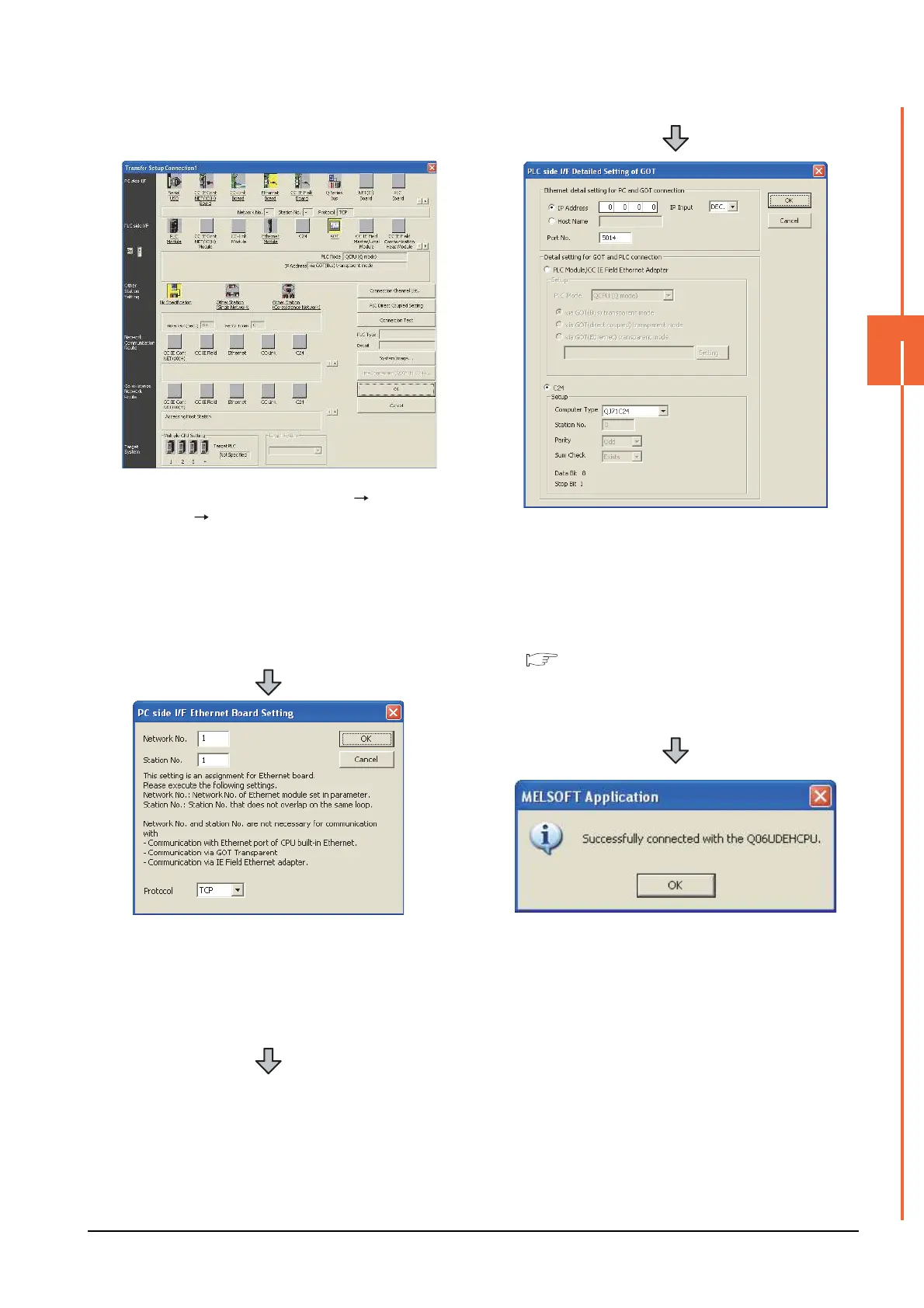

(2) Connecting the GOT and PLC in computer link

connection (when connecting to QJ71C24 (N))

1. Click the Connection Destination view [Connection

Destination] [(Connection target data name)] in the

Navigation window of GX Works2.

2. The [Transfer Setup] is displayed.

3. Set the [Transfer Setup]:

PC side I/F : Ethernet Board

PLC side I/F : GOT

Other Station Setting : No specification

4. Double-click [Ethernet Board] of the PC side I/F to

display [PC side I/F Ethernet Board Setting].

5. Set the protocol to TCP. Network No. and Station No.

are not required to be changed (default) because they

are not used.

6. Double-click [GOT] of the PLC side I/F to display

[PLC side I/F Detailed Setting of GOT].

7. Set the IP address and port No. in [Ethernet detail

setting for PC and GOT connection].

Set the IP address and port No. to the same as the

Ethernet download setting.

20.5.1 (b) Ethernet download setting

8. Check [C24] in [Detail setting for GOT and PLC

connection].

9. The screen returns to [Transfer Setup]. Click

[Connection Test] to check if GX Works2 has been

connected to the QCPU (Q mode).
