20 - 52

20. FA TRANSPARENT FUNCTION

20.6 Personal Computer Side Setting

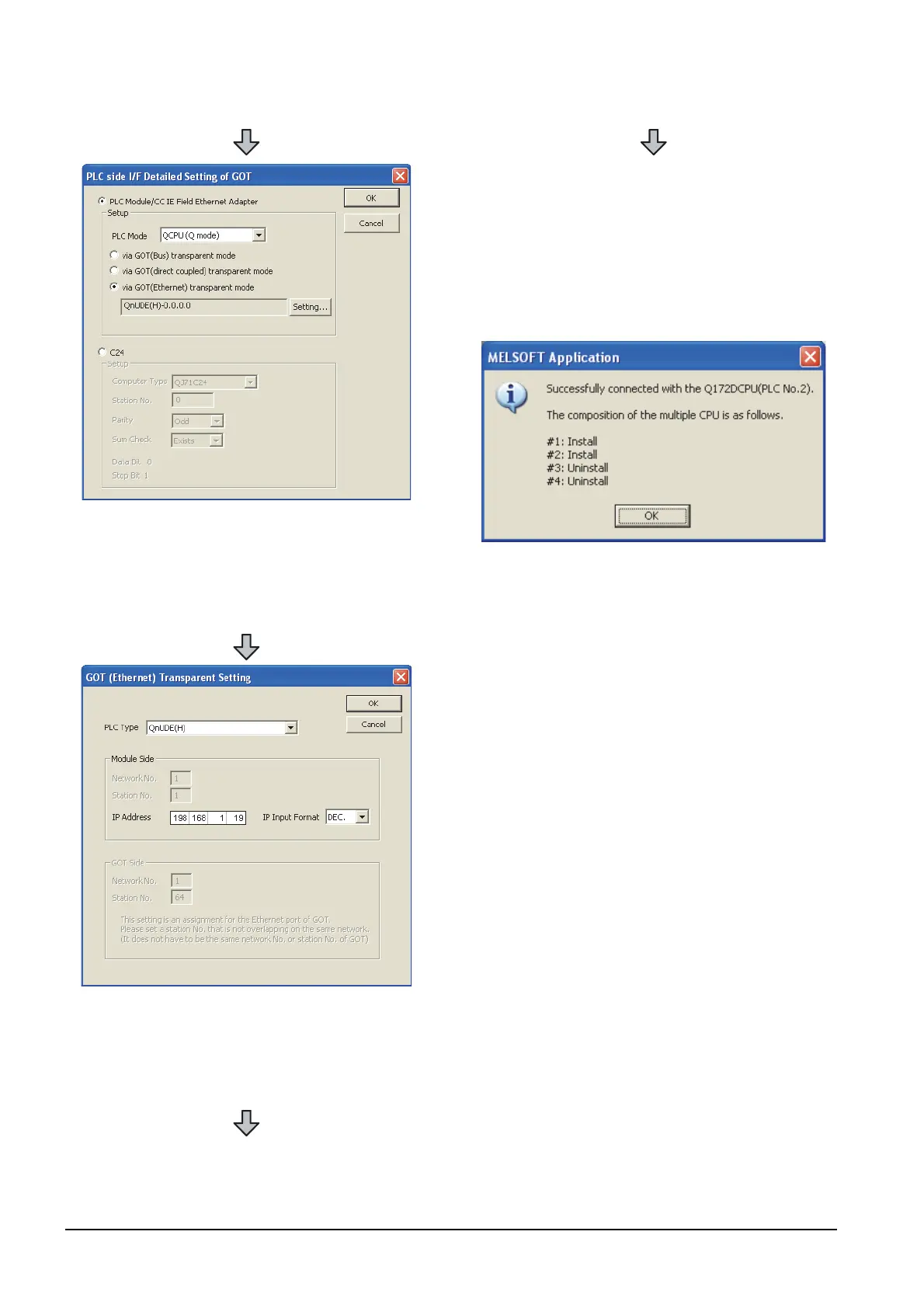

6. Double-click [GOT] of the PLC side I/F to display

[PLC side I/F Detailed Setting of GOT].

7. PLC side I/F Detailed Setting of GOT

Mark the [via GOT(Ethernet) transparent mode]

checkbox and click [Set].

8. By clicking [Set], the [GOT (Ethernet) Transparent

Setting] is displayed.

Here, set the built-in Ethernet port QCPU or Ethernet

module, which is firstly connected via a GOT.

9. Set [QnUDE(H)] or [QJ71E71] for [Type name].

10.Specify the number for [Network No.] and [Station

No.] same as the number assigned to the Ethernet

module.

When [QnUDE(H)] is set for [Type name], the setting

is not required.

11. Specify the IP address for [IP address] same as the

IP address assigned to the built-in Ethernet port

QCPU or Ethernet module.

12.The screen returns to [Transfer setup]. Click

[Connection Test] to check if MT Works2 has been

connected to the motion controller (Q mode).
