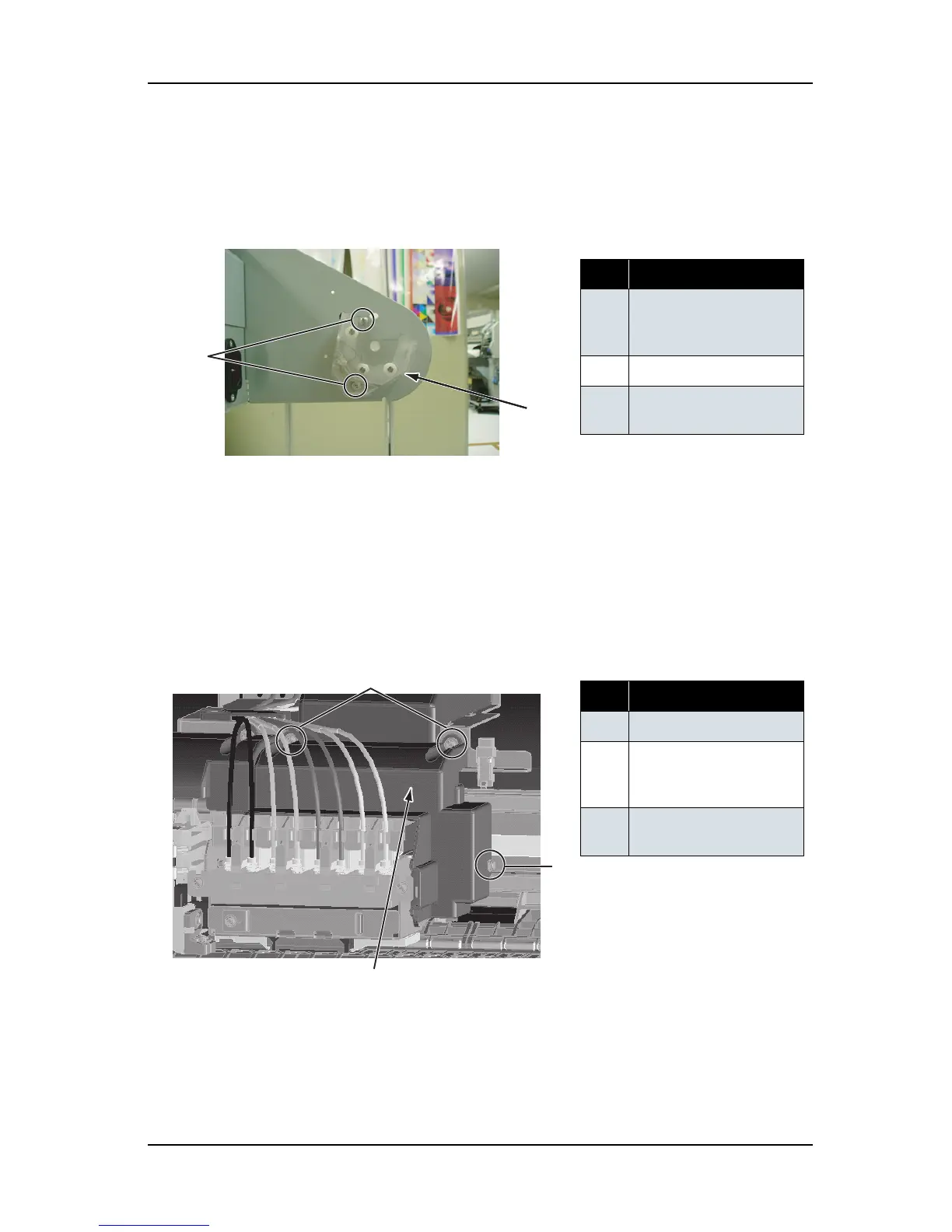

5. Remove the CR board cover.
6. Remove the cable cover L-retaining screw (
round head spring screw M3 × 8 W sems: 2) (tapping screw
M3
× 8, S tight cup: 1).
7. Remove the cable cover R-retaining screw (tapping screw M3
× 8, S tight cup: 2) (round head spring
screw M3
× 8 W sems: 1).
8. Remove the cable cover.
表 4-70
No. Part name
1 Cable cover L screw
(M3
× 8 round head
spring screw
W sems)
2
Cable cover L
3 Cable cover L screw
(M3
× 8, S tight cup)
表 4-71
No. Part name
1 Cable cover R
2
Cable cover R screw
(M3
× 8 round head
spring screw W sems: 1)
3 Cable cover R screw
(M3
× 8, S tight cup: 2)
1
2
3
2
1
