ValueJet 1304　Service manual
AP-74109 Rev 1.1 4-68
(2) Replacing Cutter Solenoid Assembly
1. Remove the cutter holder assembly.
2. Push the tab of the CR lock kicker with a sharp-pointed tool or a flat-head driver to remove the CR lock
kicker.
3. Remove the cutter solenoid assembly iron-core and the cutter solenoid spring.
4. While opening the cutter holder assembly upper tab, push out the cutter solenoid assembly from the cutter
holder assembly bottom with a flat-head driver, then remove it.
5. Remove the cutter solenoid terminal connector.
6. Replace the cutter solenoid assembly.
7. To reassemble the unit, reverse the removal procedure.

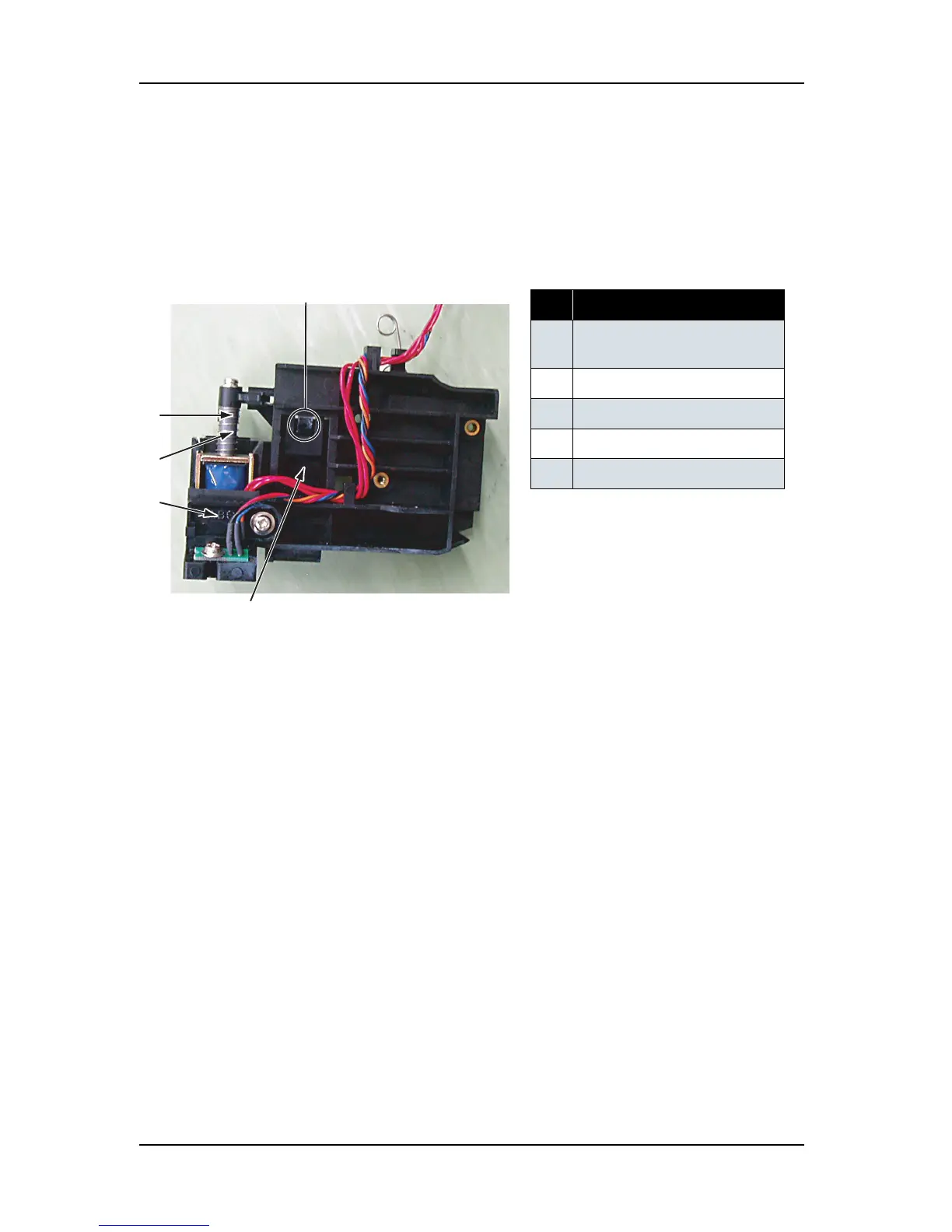

表 4-77
No. Part name
1 Cutter solenoid assembly iron-
core
2
Cutter solenoid spring
3 Cutter solenoid assembly
4 CR lock kicker
5 CR lock kicker tab
To Next Page
