ValueJet 1304　Service manual
AP-74109 Rev 1.1 4-76

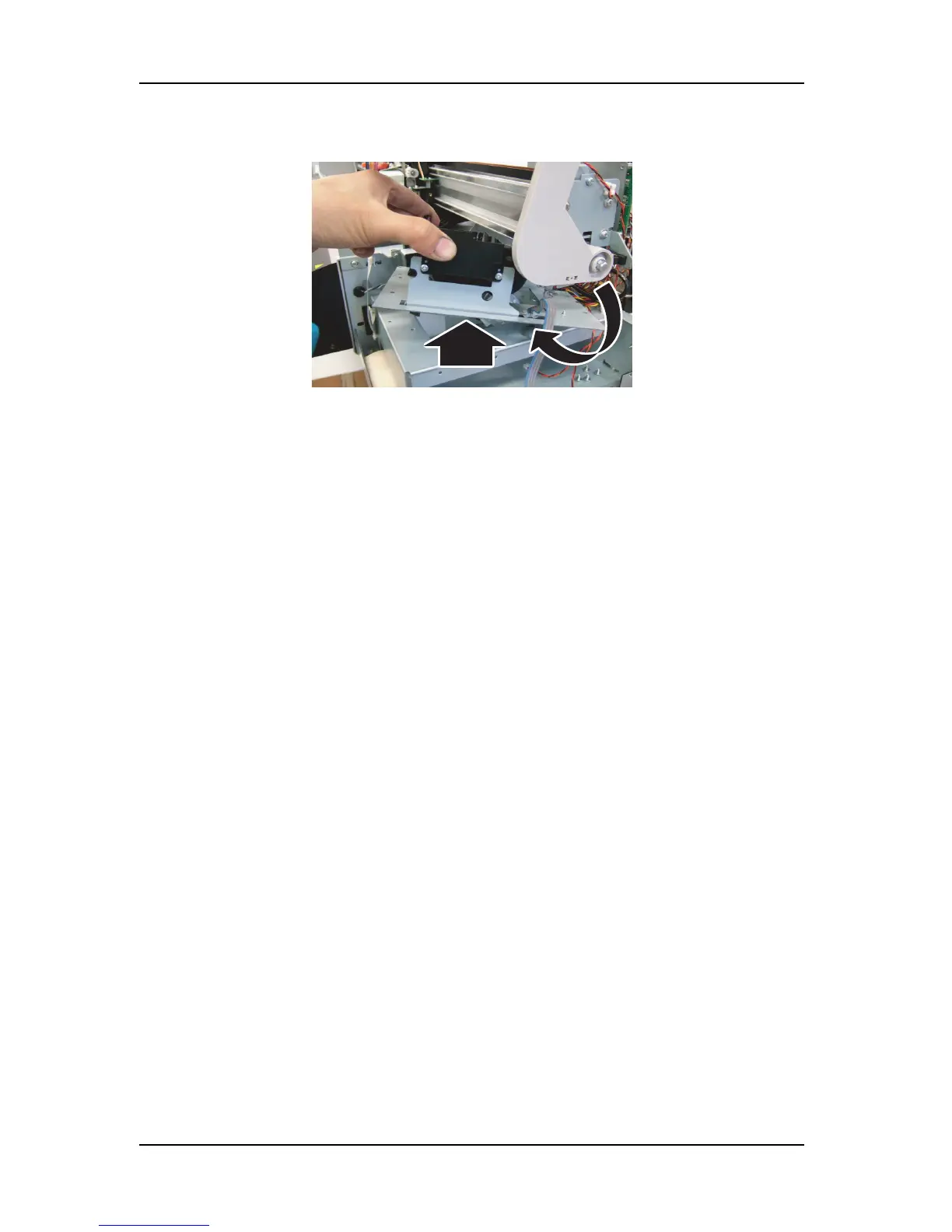

9. Hold the maintenance base 1 up and rotate it to remove as shown below.
10. To reassemble the unit, reverse the removal procedure.
