(2) Replacing VJ Take Up Unit CNT Board Assembly
NOTE
Remove the screw that retains the board chassis.
"(1) Removing Board Chassis" p.4-109

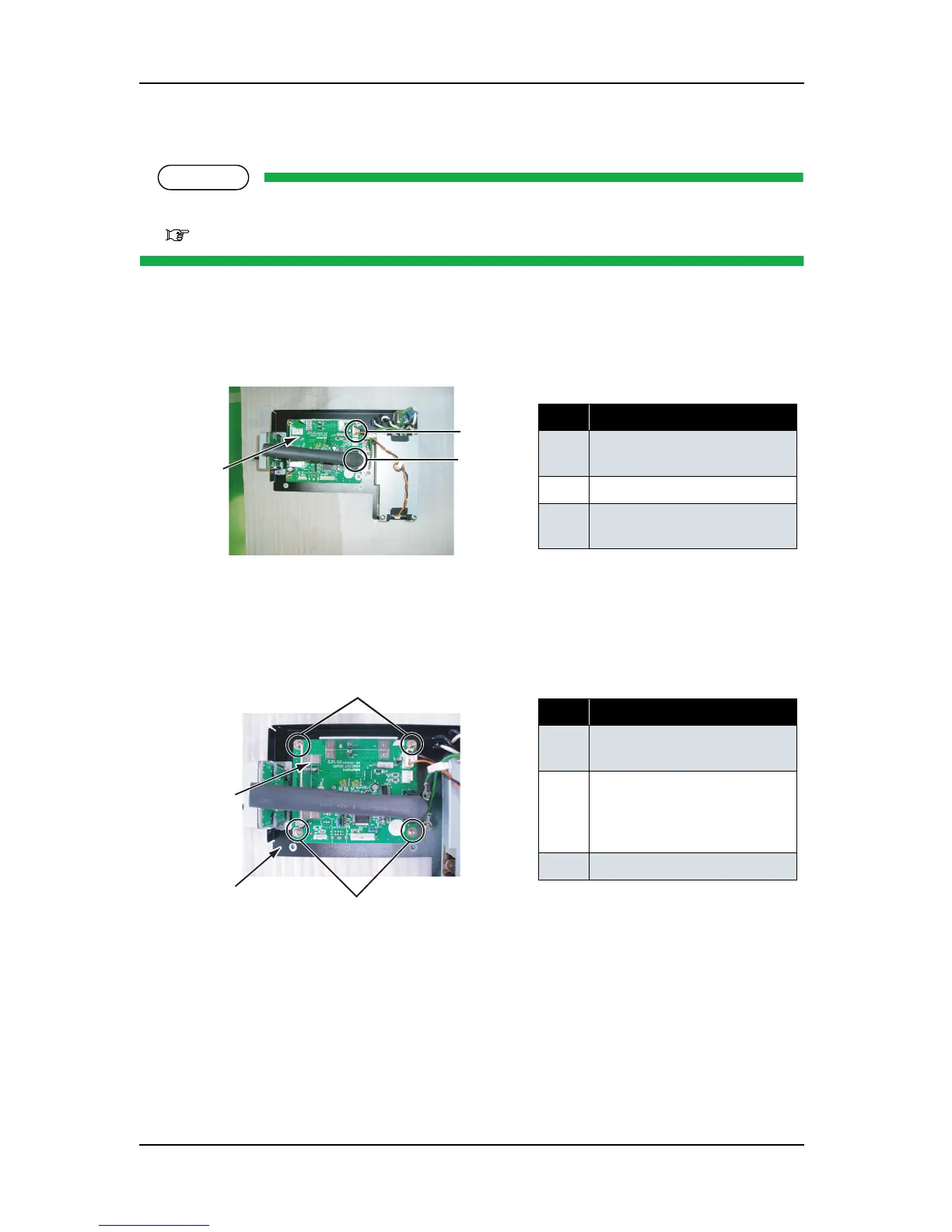

1. Remove the cable of the DC cable assembly and the VJ take up unit SW board assembly from the
connector to the VJ take up unit CNT board assembly.
2. Remove the screws (round head spring screw finishing M3 × 6: 4 pieces) that retain the VJ take up unit
CNT board assembly on the board chassis.
3. Remove the VJ take up unit CNT board assembly.
4. To reassemble the unit, reverse the removal procedure.
表 4-133
No. Part name
1 VJ take up unit CNT board
assembly
2 DC cable assembly
3 VJ take up unit SW board
assembly
表 4-134
No. Part name
1 VJ take up unit CNT board
assembly
2 Screws that retain the VJ take up
unit CNT board assembly
(round head spring screw
finishing M3
× 6)
3 Board chassis
1
2
3
3
1
2
2
