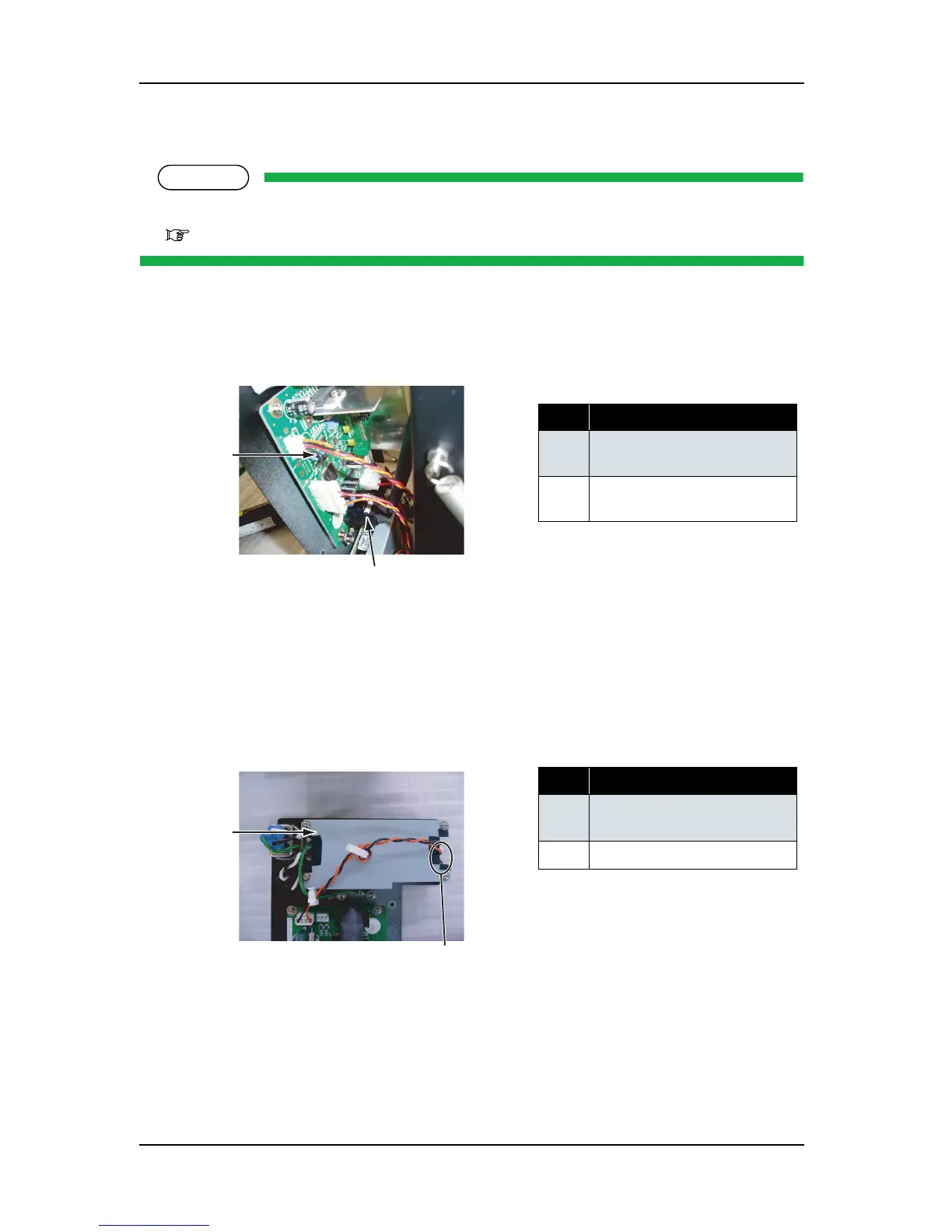

(5) Replacing AC Cable Assembly
NOTE
Remove the screws that retains the board chassis before replacing the AC cable assembly.
"(1) Removing Board Chassis" p.4-109
1. Remove the cable of the VJ take up unit SW board assembly from the connector to the VJ take up unit
CNT board assembly.
2. Detach the AC cable assembly from the connector to the power board assembly (of take up unit section
for foreign use).
3. Replace the AC cable assembly.
4. To reassemble the unit, reverse the removal procedure.
表 4-140
No. Part name
1 VJ take up unit CNT board
assembly
2 Cable of the VJ take up unit SW
board assembly
表 4-141
No. Part name
1
Power board assembly (of take
up unit section for foreign use)
2
AC cable assembly
1
2
1
2
