MUTOH ValueJet User Manual

ValueJet 1304 Service manual
4-115 AP-74109 Rev 1.1

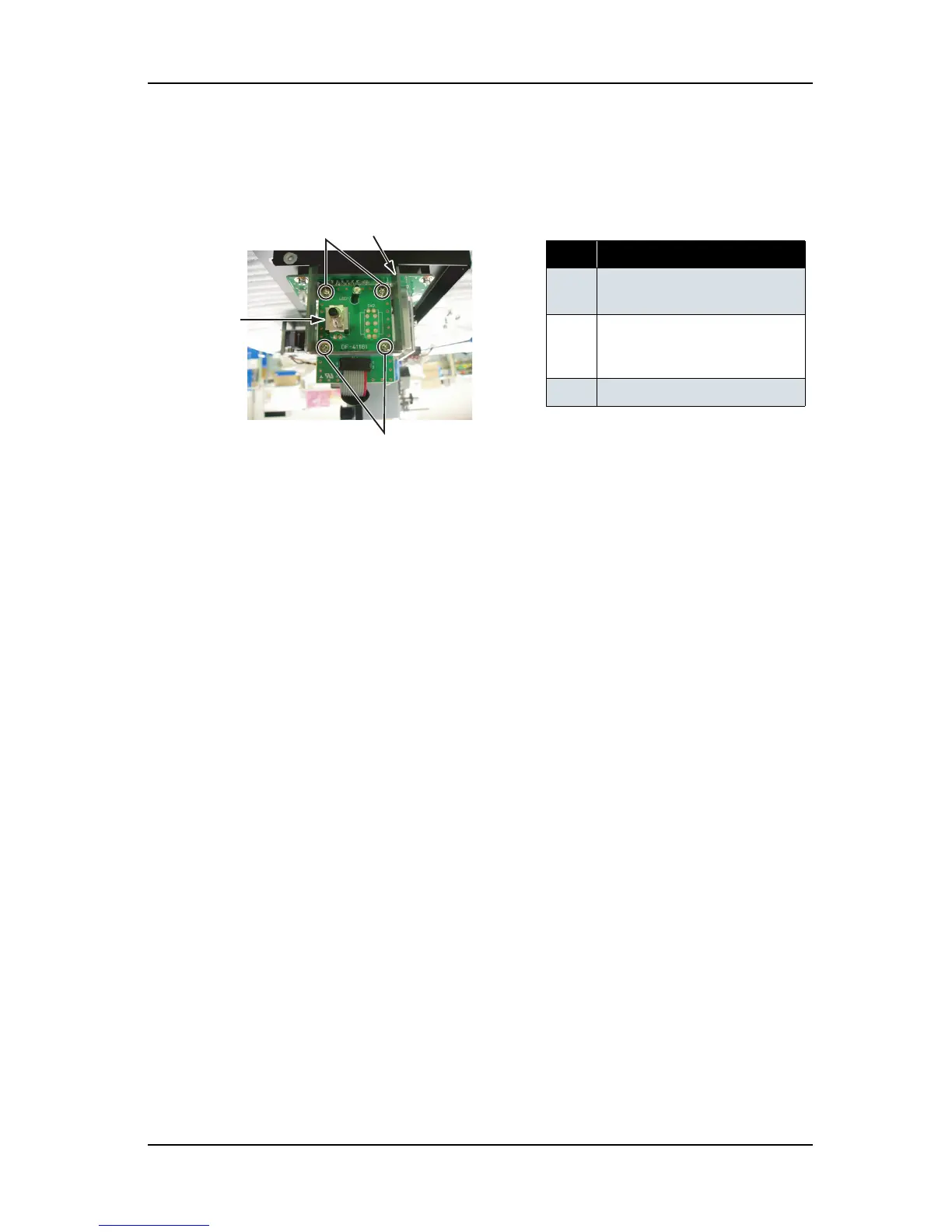

3. Remove the screws (pan head small screw M3 × 8: 4 pieces) that retain the VJ take up unit SW board
assembly on the SW mounting plate.
4. Remove the VJ take up unit SW board assembly.
5. To reassemble the unit, reverse the removal procedure.
表 4-139
No. Part name
1 VJ take up unit SW board
assembly
2
Screw that retains the VJ take up
unit SW board assembly (pan
head small screw M3
× 8)
3
SW mounting plate
3
1
2
2

MUTOH ValueJet Specifications

General

Technology	Piezo Inkjet
Ink Type	Eco-solvent ink
Print Resolution	Up to 1440 dpi
Resolution	Up to 1440 dpi
Ink Colors	CMYK, White
Media Width	64 inches
Interface	USB, Ethernet
Operating Systems	Windows
