C: Executed adjustment item is printed like this.
Bi-D 240: Bi- Lo/Hi 240 CPS
Bi-D 320: Bi- Lo/Hi 320 CPS
Bi-D 240B: Bi- Lo/Hi 240 CPS Banner
Bi-D 320B: Bi- Lo/Hi 320 CPS Banner
* Either “Lo” or “Hi” is displayed at where explained as “Lo/Hi” above.
• The following shows a case for Bi-D Low 240B Print2
Prints the pattern by using 2A nozzle.
* Both Uni-D / Bi-D High should be adjusted in the same procedure.

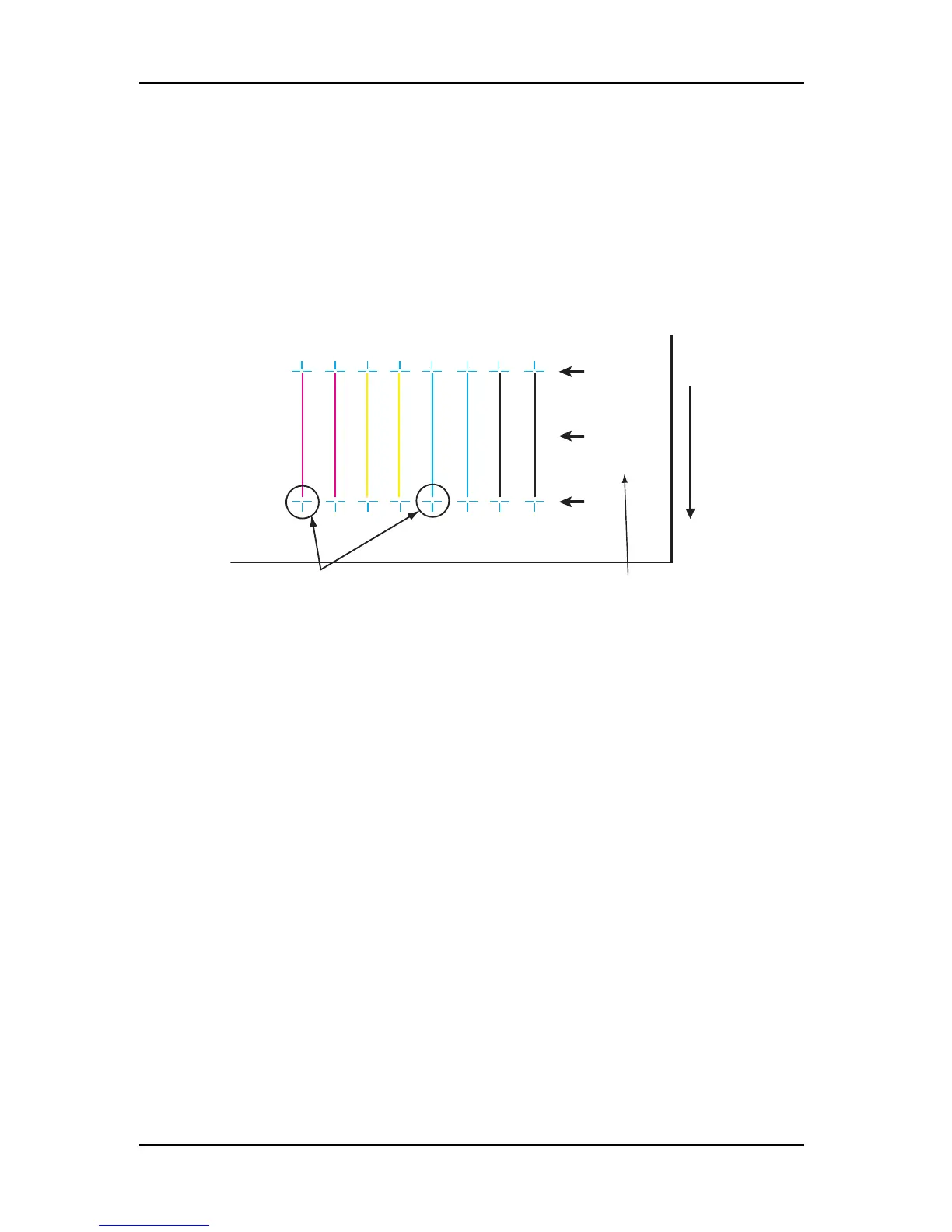

A: Media feed direction
B: Adjust the setting value so that these point matches.
C: Executed adjustment item is printed like this.
Bi-D 240: Bi- Lo/Hi 240 CPS
Bi-D 320: Bi- Lo/Hi 320 CPS
Bi-D 240B: Bi- Lo/Hi 240 CPS Banner
Bi-D 320B: Bi- Lo/Hi 320 CPS Banner
* Either “Lo” or “Hi” is displayed at where explained as “Lo/Hi” above.
Bi-Lo
240CPS
4B 4A 3B
3A
2B 2A
1B 1A
- + - + - + - + - + - + - + - +
B
C
A
