(2) Voltage Offset
This menu updates the voltage offset parameter (VSD3 small dot).
Table 5-14 Voltage offset item
Items Contents
240 CW Adjusts the VSD 3-S at 240 cps. CW printing.
240 CCW Adjusts the VSD 3-S at 240 cps. CCW printing.
320 CW Adjusts the VSD 3-S at 320 cps. CW printing.
320 CCW Adjusts the VSD 3-S at 320 cps. CCW printing.
[>] keys
[>] key
[>] key
[>] key

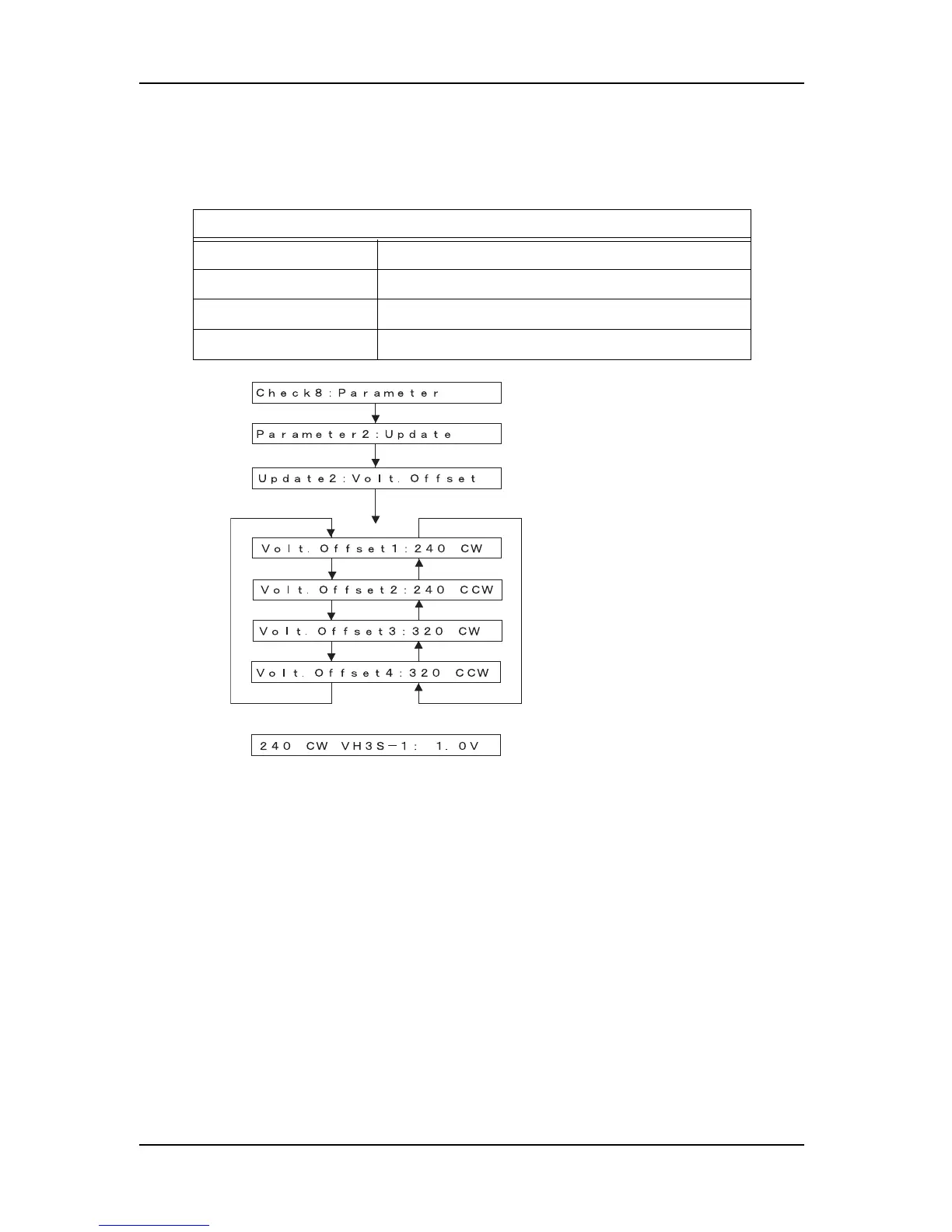

When it is 240 CW
[<] key
[<] key
[<] key
[<] key
Press [Setting/Value+] or [Setting/Value-] key
to change unit to pulse
Volt range: -5V to 5V (0.1V)
VH3L-1 to VH3L-4
VH3S-1 to VH3S-4
