MUTOH ValueJet User Manual

ValueJet 1304 Service manual
7-9 AP-74109 Rev 1.1
NOTE
You can skip operations 2, 3, 4, and 7 above if you upgrade the firmware version only.
NO
YES
NO
YES

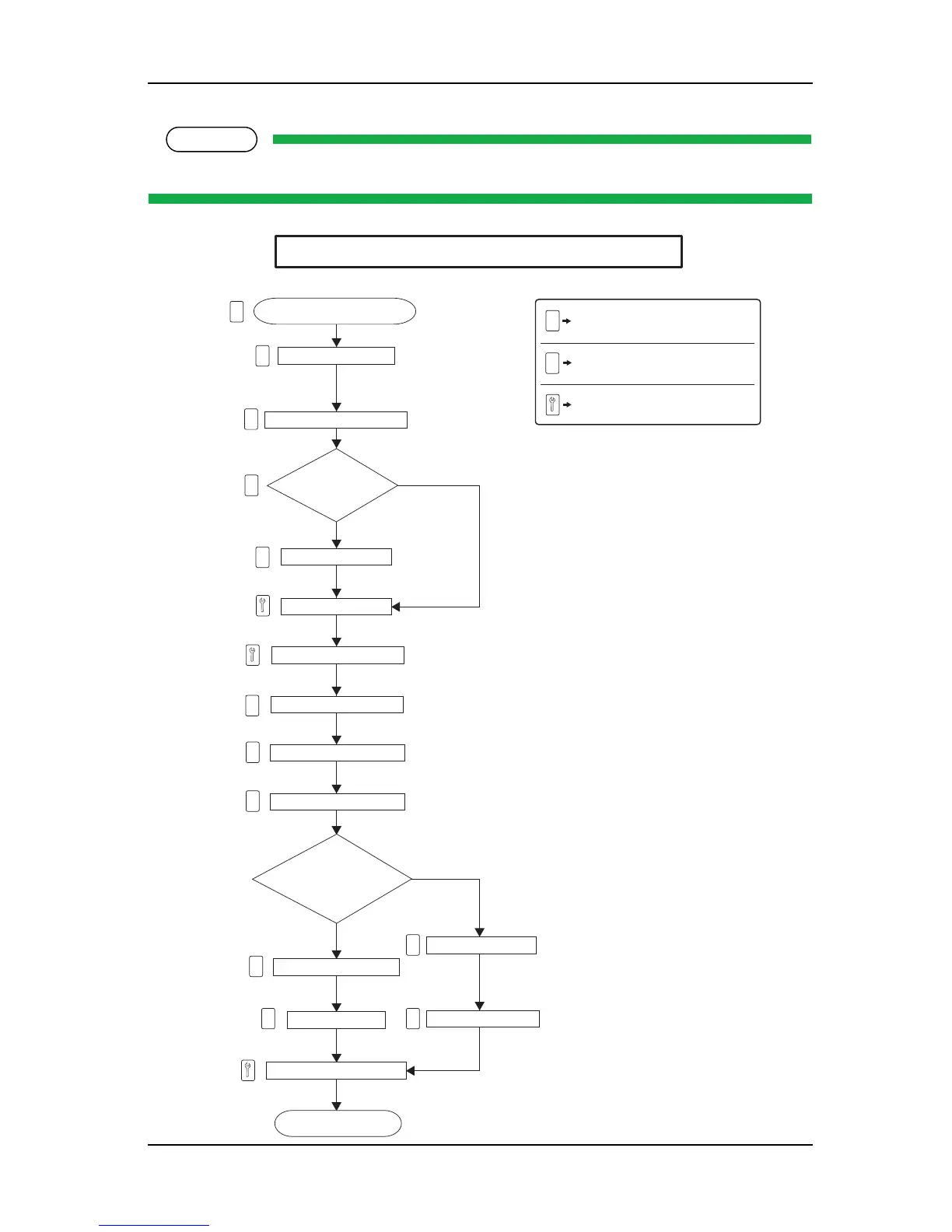

Workflow for Firmware installation after MAIN board replacement
Confirm IP Adress of Printer
Set IP Address of PC
Execute Board Manager mode
Parameter settings
accessible?
Save parameters
Replace MAIN board
Set DIP SW position to ON
Set DIP SW position to OFF
Install Firmware
Confirm Firmware installation
Parameters of old board
is saved?
Initialize NV RAM
Input parameters manually
Send parameters to printer
Turn off printer
End
䎰
䎰
䎰
䎳
䎳
䎳
䎳
䎰
䎰
䎳
䎳䎳
䎰
䎳
Select default IP address
Operation for MUTOH Maintenance Engineer
Assistant
Operation for operation panel
Maintenance work
