3.8.17 Replacing Carriage Assy 142
3.8 Replacing Cursor section VJ628XE-M-00

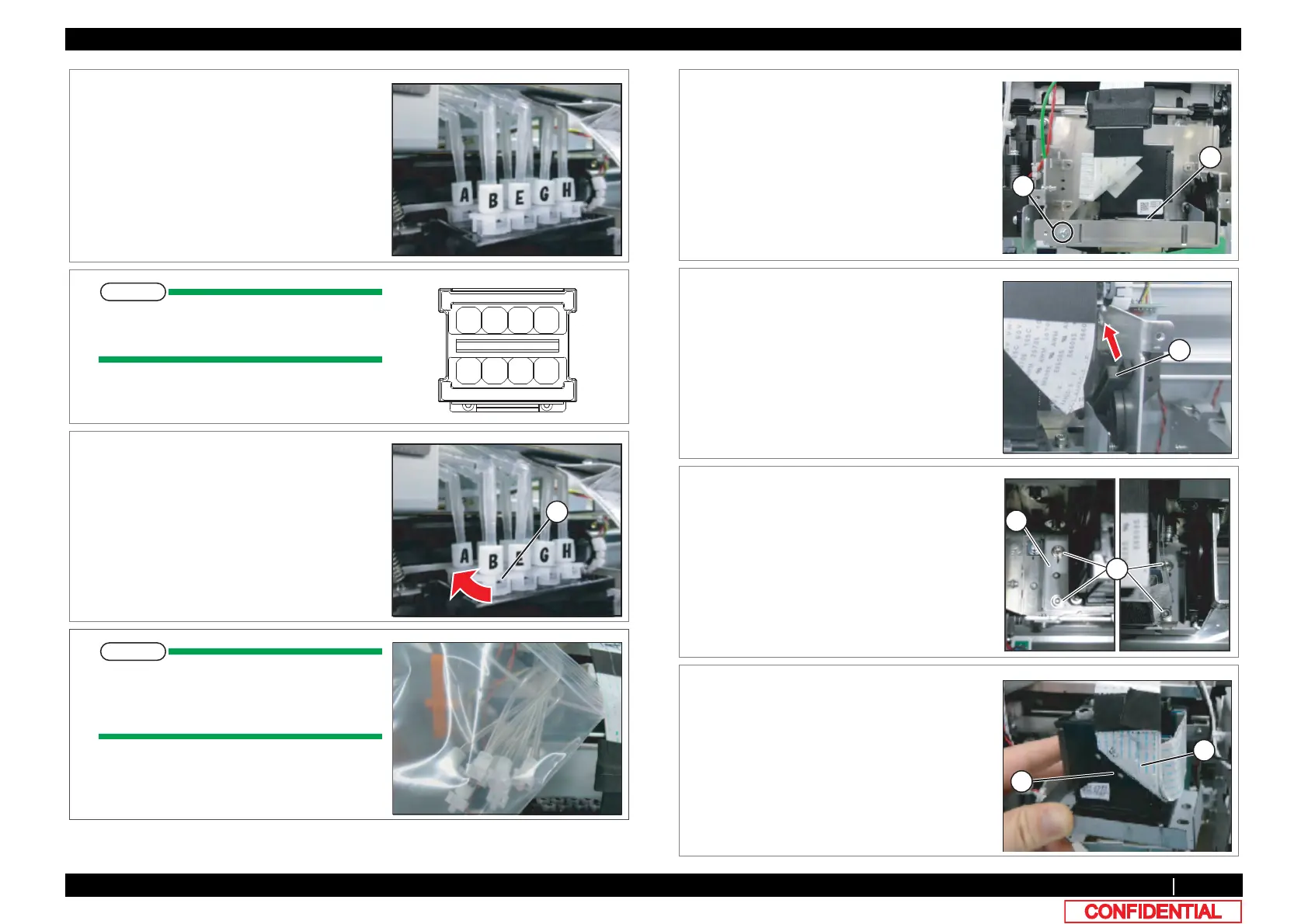

12 Mark on AlL Fitting Screw.
NOTE
Mark the place to which Tube is attached.
（ABCDEFGH)
13 Turn Connector Valve Head 45 degrees,
release the lock, and pull it out.
A : Connector Valve Head
㨀㧵㧼
After pulling out Connector Valve Head
from print head, put them into the plastic
bag to prevent the ink from dripping.
#
$
&
%
'
(
) *
A
14 Loosen the screw (1 pieces) retaining Head
Push Plate Spring.
A : Pan-head screw with spring washer and
flat washer M3ｘ6
B : Head Push Plate Spring
15 Raise the notch of Head adjustment cam to
the top.
16 Remove screws (4 pieces) retaining Head
base.
A : Pan-head screw with spring washer and
flat washer M3ｘ6
B : Head Base
17 Remove Print head (with Head base still
attached).
A
B
A
B
A
B
A
