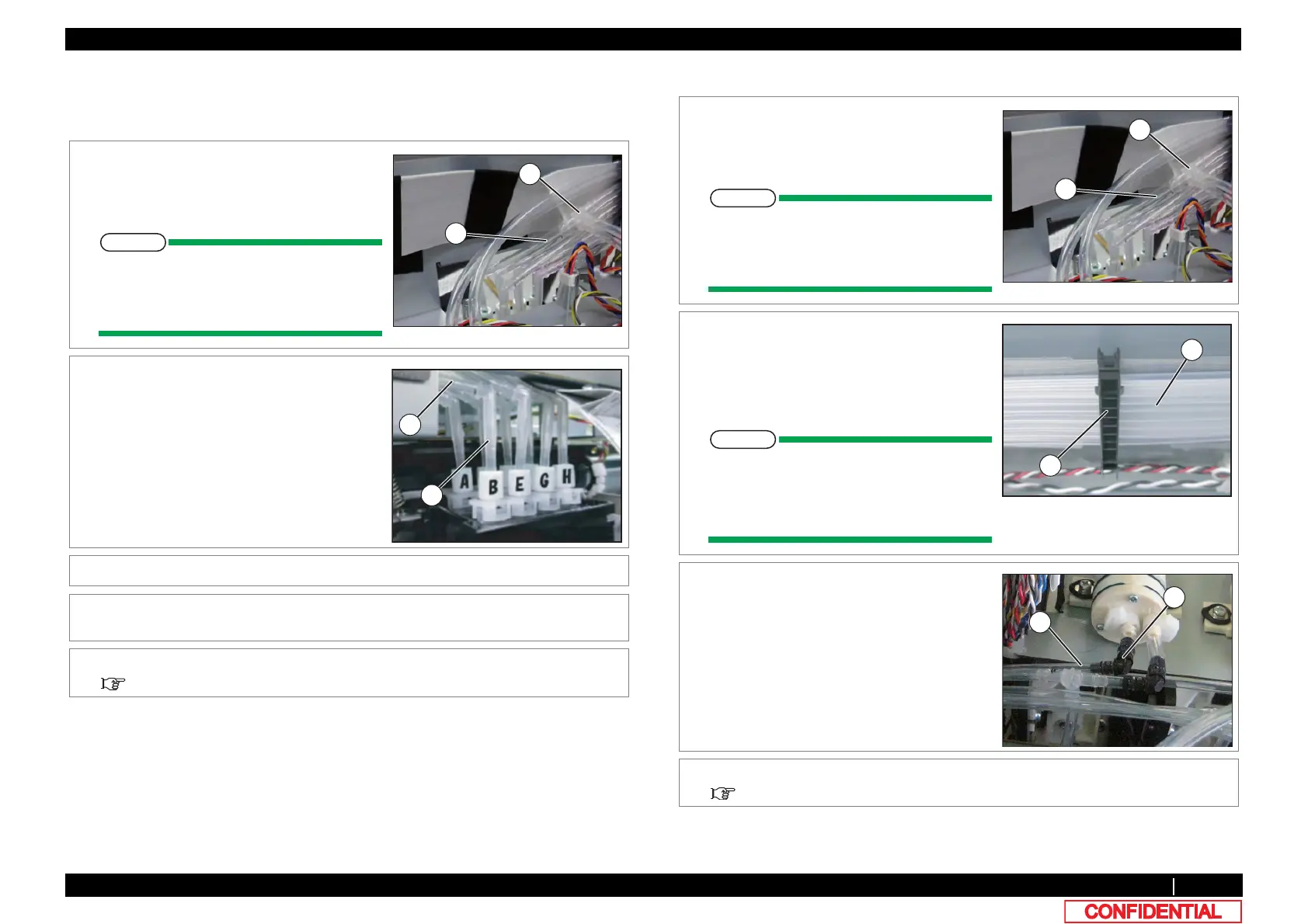

3.9.4 Replacing Ink Tube 155
3.9 Replacing Cable Guide section VJ628XE-M-00
(2) Ink Slot 3/4
(2-a)Head
(2-b)Circulation Pump (L Joint)
1 Remove Ink tube from T fitting.
A : T fitting
B : Ink tube
length
G nozzle:40ｍｍ
H nozzle: 50ｍｍ
2 Remove Ink tube from L joint.
A : L joint
B : Ink tube
3 Replace Ink tube.
4 To reassemble unit, reverse the removal
procedure.
5 Charge Ink.
5.5 Ink Charging Menu
1 Remove Ink tube from T fitting.
A : T fitting
B : Ink tube
length
Ink Slot 3: 1245ｍｍ
Ink Slot 4: 1200ｍｍ
2 Remove Ink Tube from Clamp Tubes (7
pieces).
A : Clamp Tube
B : Ink Tube
One place should work at a time. After
attaching again the Clamp of the part
which removed Ink Tube, the next part
should work.
3 Remove Ink tube from the L joint of Circulation
Pump.
A : L joint
B : Ink tube
4 Replace Ink tube.
5 To reassemble unit, reverse the removal
procedure.
6 Charge Ink.
5.5 Ink Charging Menu
To Next Page
