Operation

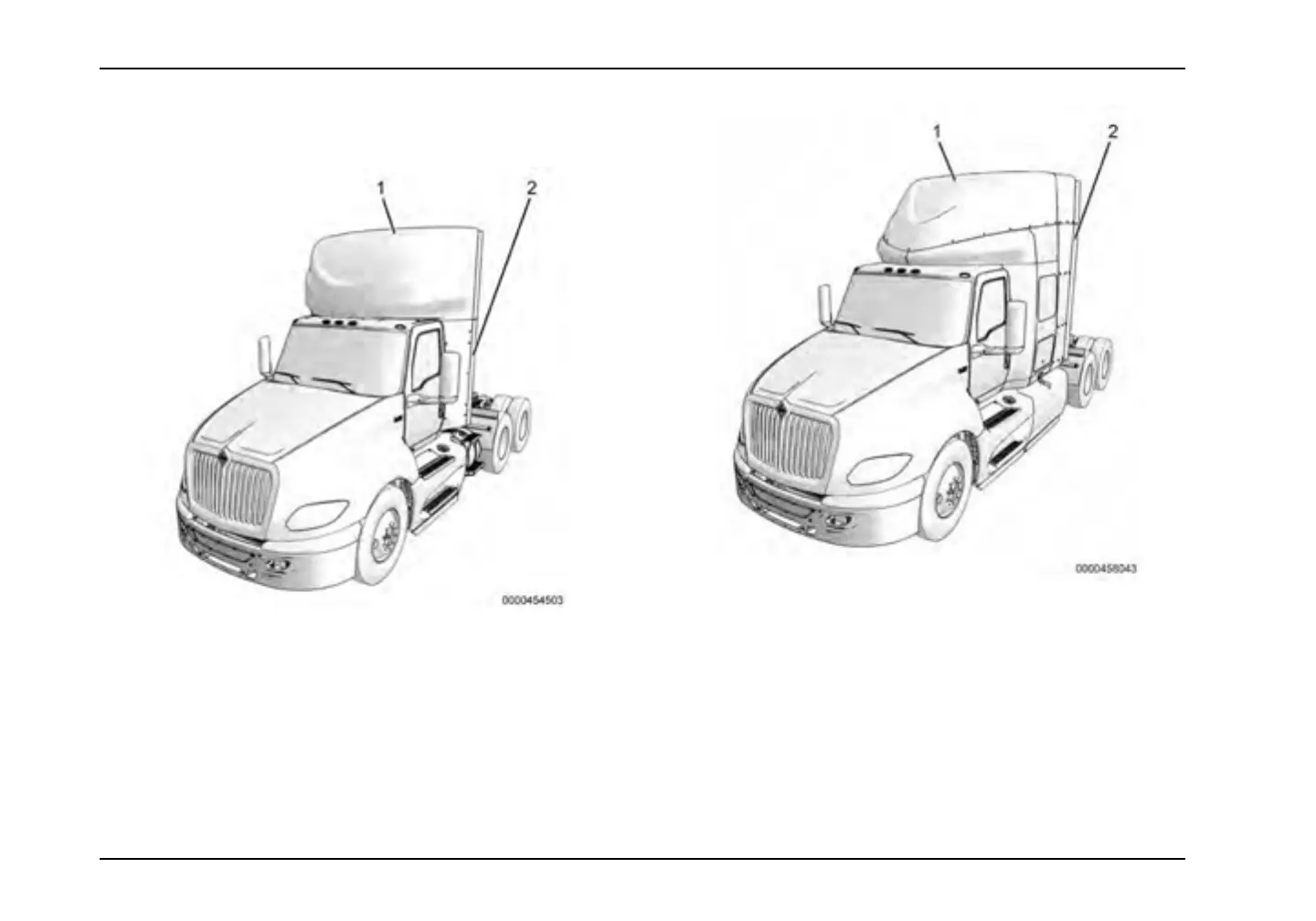

Seethefollowingimagesfortypicalairfairingandcabside

extenderlocations.

1.Airfairing

2.Cabsideextender

1.Airfairing

2.Cabsideextender

214
