Page | 26
SECTION 3.5 INPUT CONNECTIONS
3.5.1 CONNECT A/V SOURCES
External audio and video sources are connected to the appropriate inputs on
TriCaster’s backplate.

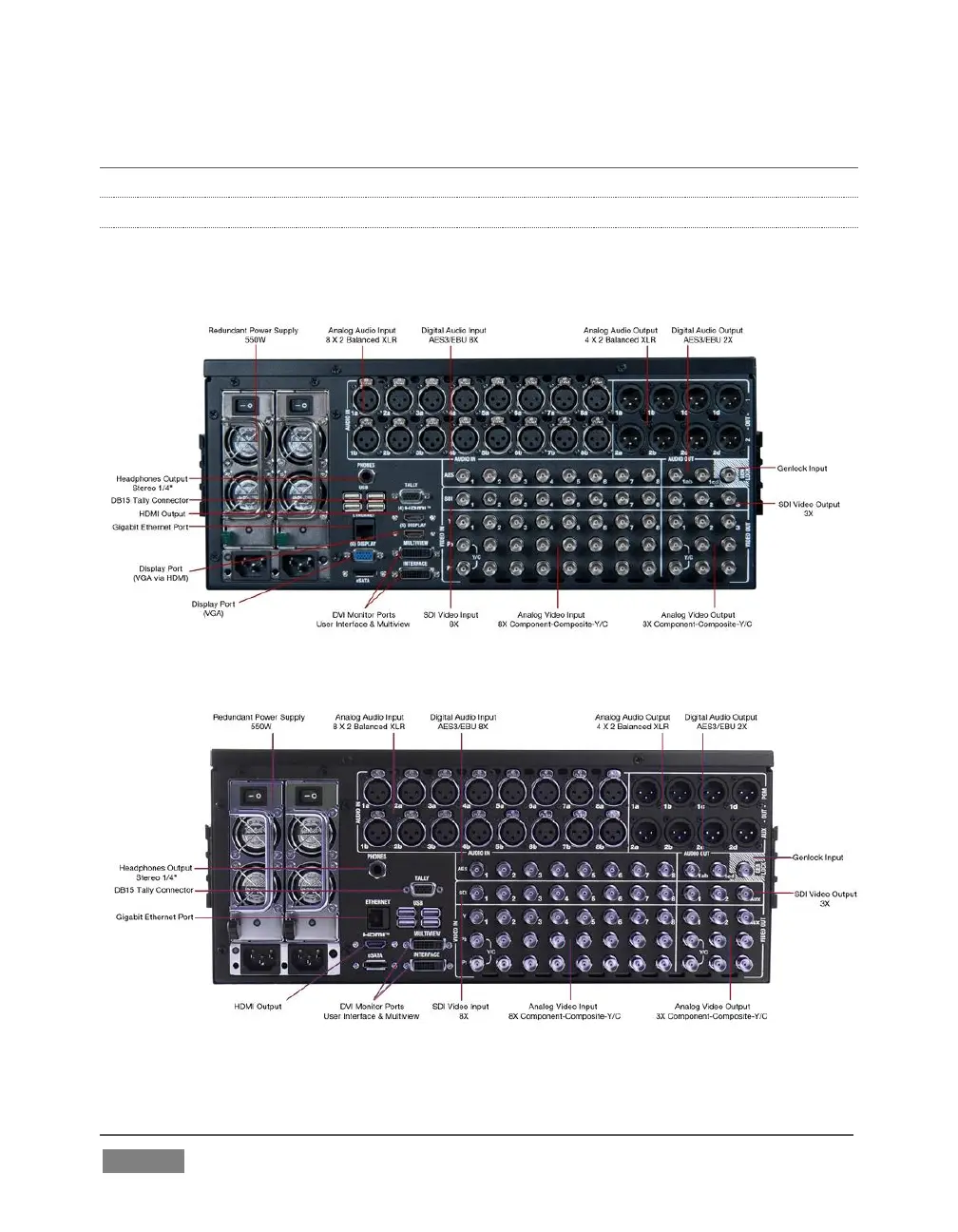

FIGURE 13 – TRICASTER 8000
FIGURE 14 - TRICASTER 860
