5.

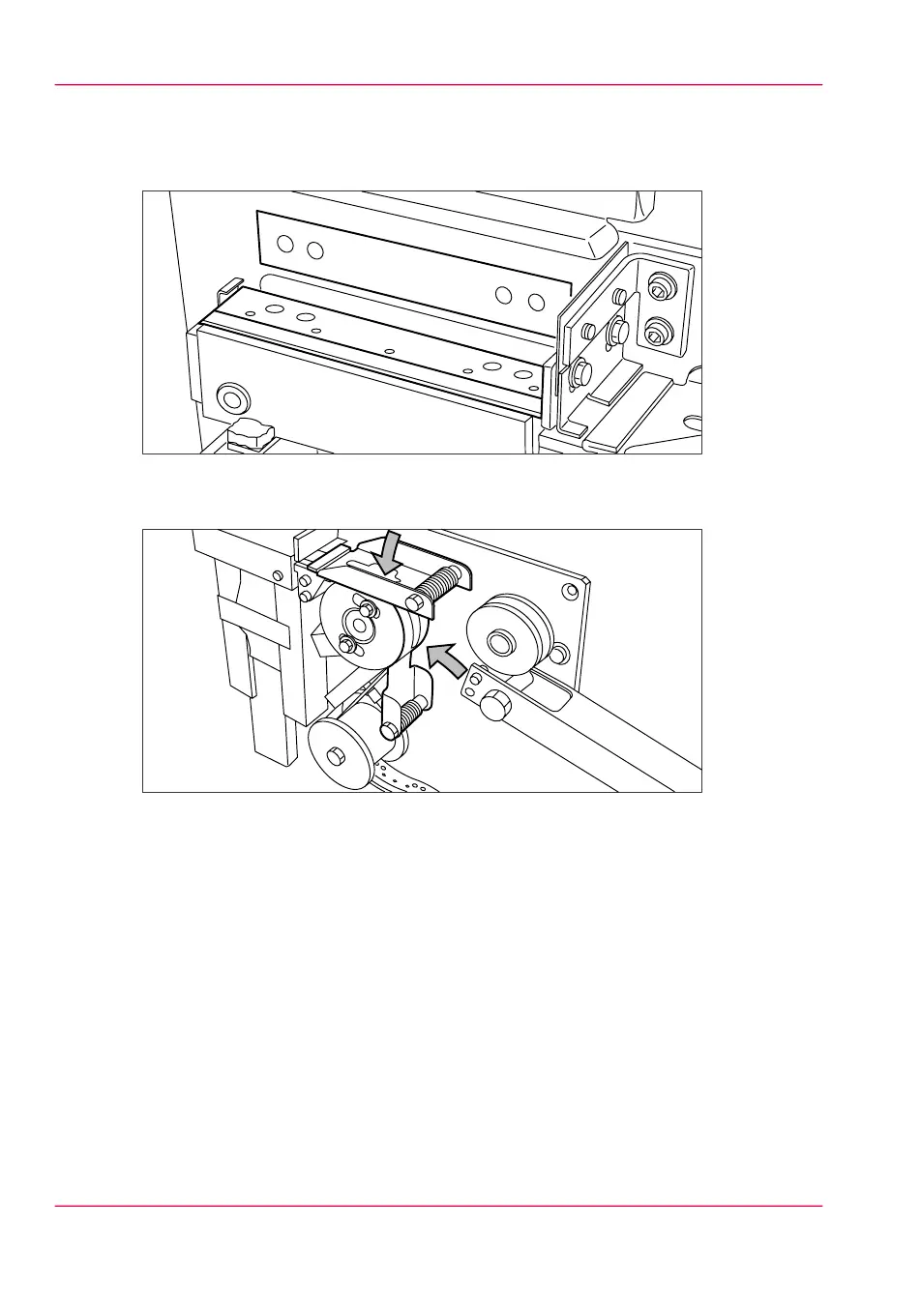

Align the holes in the tape with the hole pattern on the label. (You can find the label on
the frame plate of the reinforcement unit.) Lift the tape from the pin roller and push the
tape between the two knives until the holes are aligned.
[199] Adjusting the holes on the tape
6.
Close the guide plates of the pin roller.
[200] Closing the guide plates
Chapter 11 - System maintenance282
Insert a new tape roll
