3.

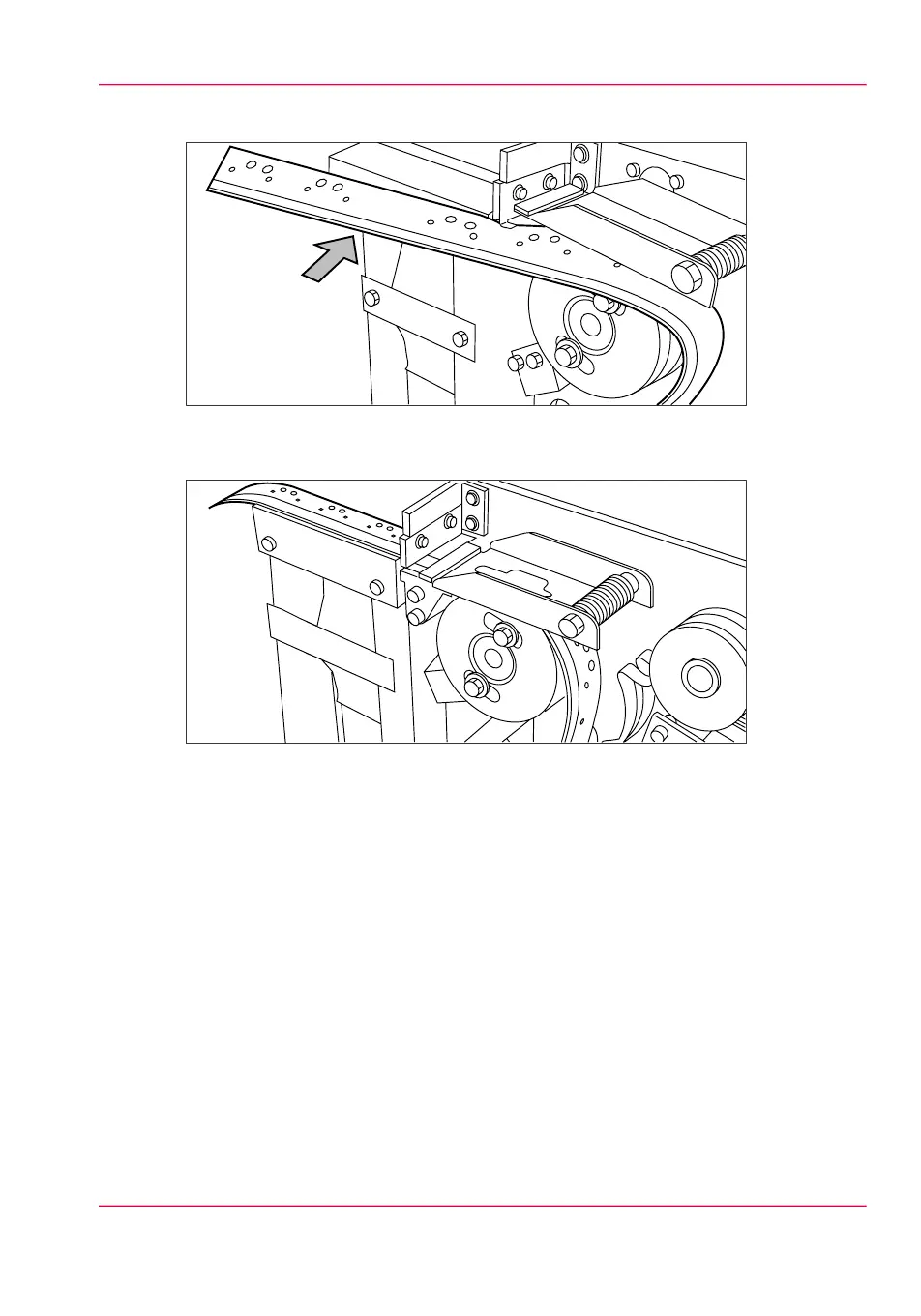

Guide the tape between the upper and lower knife and over the pin roller.
[197] Leading the tape between upper and lower knife
4.
Make sure that at least 200 mm (2 strip lengths) of tape protrudes out of the knife section.
[198] Protruding tape
Chapter 11 - System maintenance 281
Insert a new tape roll
