Measurements and Results
R&S
®
FSW
186User Manual 1173.9411.02 ─ 43
For symmetrical channel definition (see "Symmetrical Adjacent Setup" on page 182),
the dialog box is reduced as the upper and lower channels are identical.

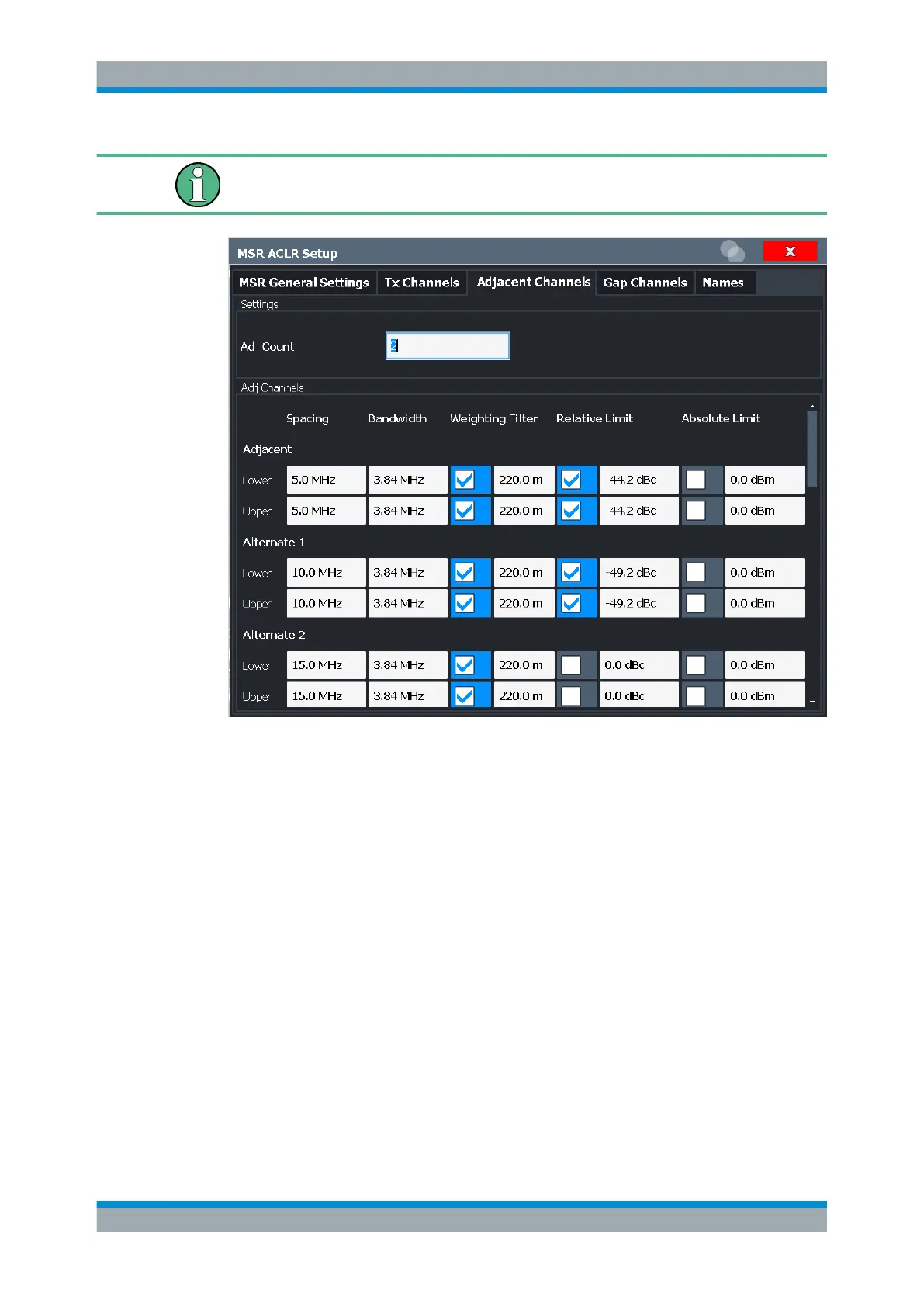

Figure 7-30: Asymmetrical adjacent channel definition
For details on setting up channels, see Chapter 7.2.6.3, "How to Configure an MSR
ACLR Measurement", on page 196.
Number of Adjacent Channels (Adj Count).................................................................186
Adjacent Channel Definition........................................................................................187
Adjacent Channel Spacings..........................................................................187
Adjacent Channel Bandwidths......................................................................187
Weighting Filters........................................................................................... 187
Limit Checking.............................................................................................. 188
Number of Adjacent Channels (Adj Count)
Defines the number of adjacent channels above and below the Tx channel block in an
MSR signal. You must define the carrier channel to which the relative adjacent-channel
power values refer (see "Reference Channel" on page 171).
Remote command:
[SENSe:]POWer:ACHannel:ACPairs on page 844
Channel Power and Adjacent-Channel Power (ACLR) Measurement
