R&S FSW Series User Manual

Measurements and Results
R&S
®
FSW
188User Manual 1173.9411.02 ─ 43
[SENSe:]POWer:ACHannel:FILTer[:STATe]:ALTernate<ch> on page 850
[SENSe:]POWer:ACHannel:FILTer[:STATe]:UACHannel on page 866
[SENSe:]POWer:ACHannel:FILTer[:STATe]:UALTernate<ch> on page 866
Alpha value:
[SENSe:]POWer:ACHannel:FILTer:ALPHa:ACHannel on page 848
[SENSe:]POWer:ACHannel:FILTer:ALPHa:ALTernate<ch> on page 848
[SENSe:]POWer:ACHannel:FILTer:ALPHa:UACHannel on page 865
[SENSe:]POWer:ACHannel:FILTer:ALPHa:UALTernate<ch> on page 865
Limit Checking ← Adjacent Channel Definition

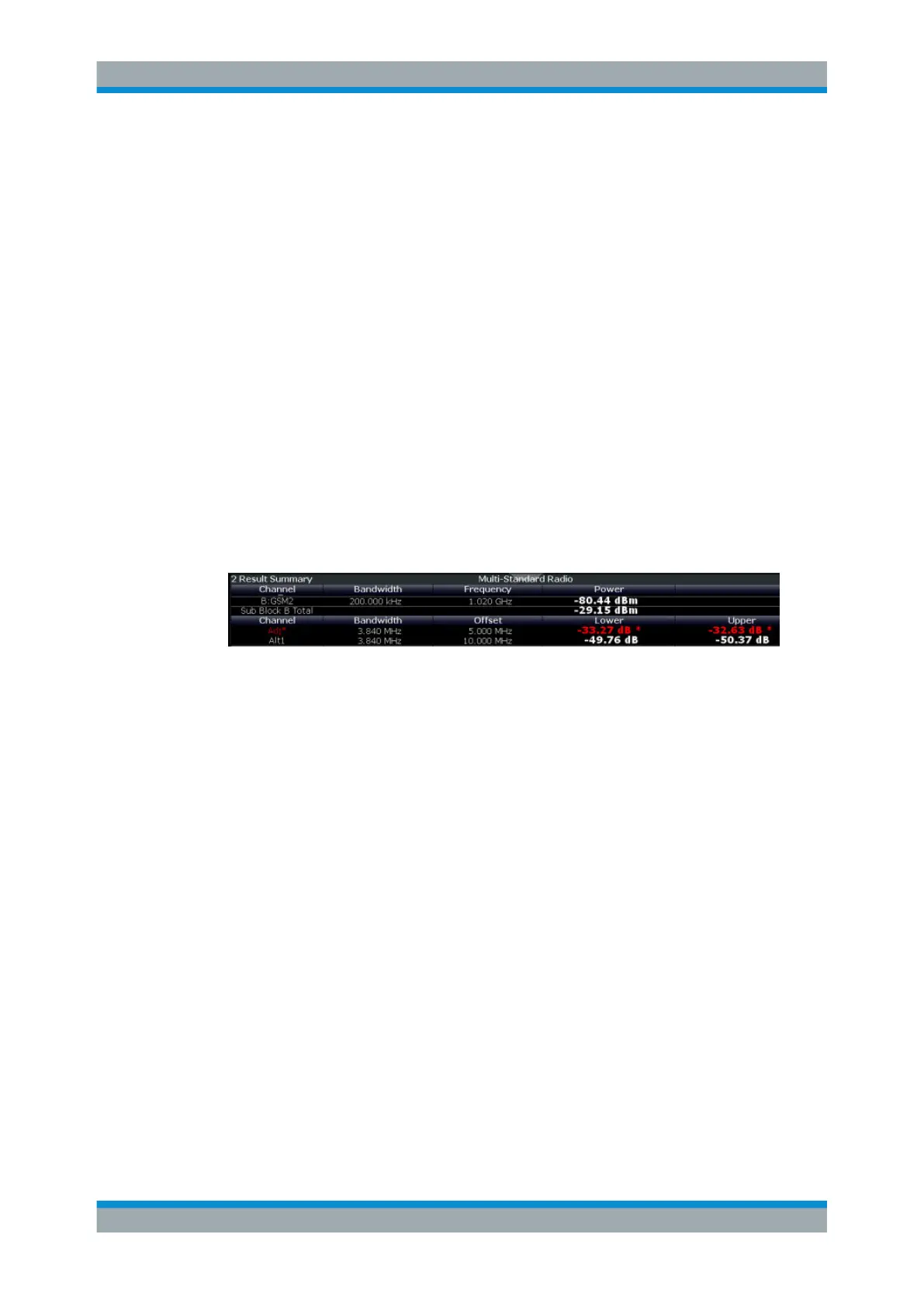

During an ACLR measurement, the power values can be checked whether they
exceed user-defined or standard-defined limits. A relative or absolute limit can be
defined, or both, for each individual adjacent channel. Both limit types are considered,
regardless whether the measured levels are absolute or relative values. The check of
both limit values can be activated independently. If any active limit value is exceeded,
the measured value is displayed in red and marked by a preceding asterisk in the
result table.
Note that in addition to activating limit checking for individual channels, limit checking
must also be activated globally for the MSR ACLR measurement (see "Limit Checking"
on page 182).
Remote command:
CALCulate<n>:LIMit<li>:ACPower[:STATe] on page 857
CALCulate<n>:LIMit<li>:ACPower:ACHannel:ABSolute:STATe on page 852
CALCulate<n>:LIMit<li>:ACPower:ACHannel:ABSolute on page 852
CALCulate<n>:LIMit<li>:ACPower:ACHannel[:RELative]:STATe
on page 854
CALCulate<n>:LIMit<li>:ACPower:ACHannel[:RELative] on page 853
CALCulate<n>:LIMit<li>:ACPower:ALTernate<ch>:ABSolute:STATe
on page 855
CALCulate<n>:LIMit<li>:ACPower:ALTernate<ch>:ABSolute on page 854
CALCulate<n>:LIMit<li>:ACPower:ALTernate<ch>[:RELative]:STATe
on page 857
CALCulate<n>:LIMit<li>:ACPower:ALTernate<ch>[:RELative]
on page 855
CALCulate<n>:LIMit<li>:ACPower:ACHannel:RESult? on page 853
7.2.5.4 MSR Gap Channel Setup
Access: "Overview" > "Select Measurement" > "Channel Power ACLR" > "CP / ACLR
Standard" > "Standard": "Multi-Standard Radio" > "CP / ACLR Config" > "Gap Chan-
nels" tab
The "Gap Channels" tab provides all the channel settings to configure gap channels in
MSR ACLR measurements.
Channel Power and Adjacent-Channel Power (ACLR) Measurement
