Sub Block Count......................................................................................................... 257

Sub Block / Center Freq..............................................................................................257

Standard / MSR Settings.............................................................................................257

Edit Sweep List........................................................................................................... 257

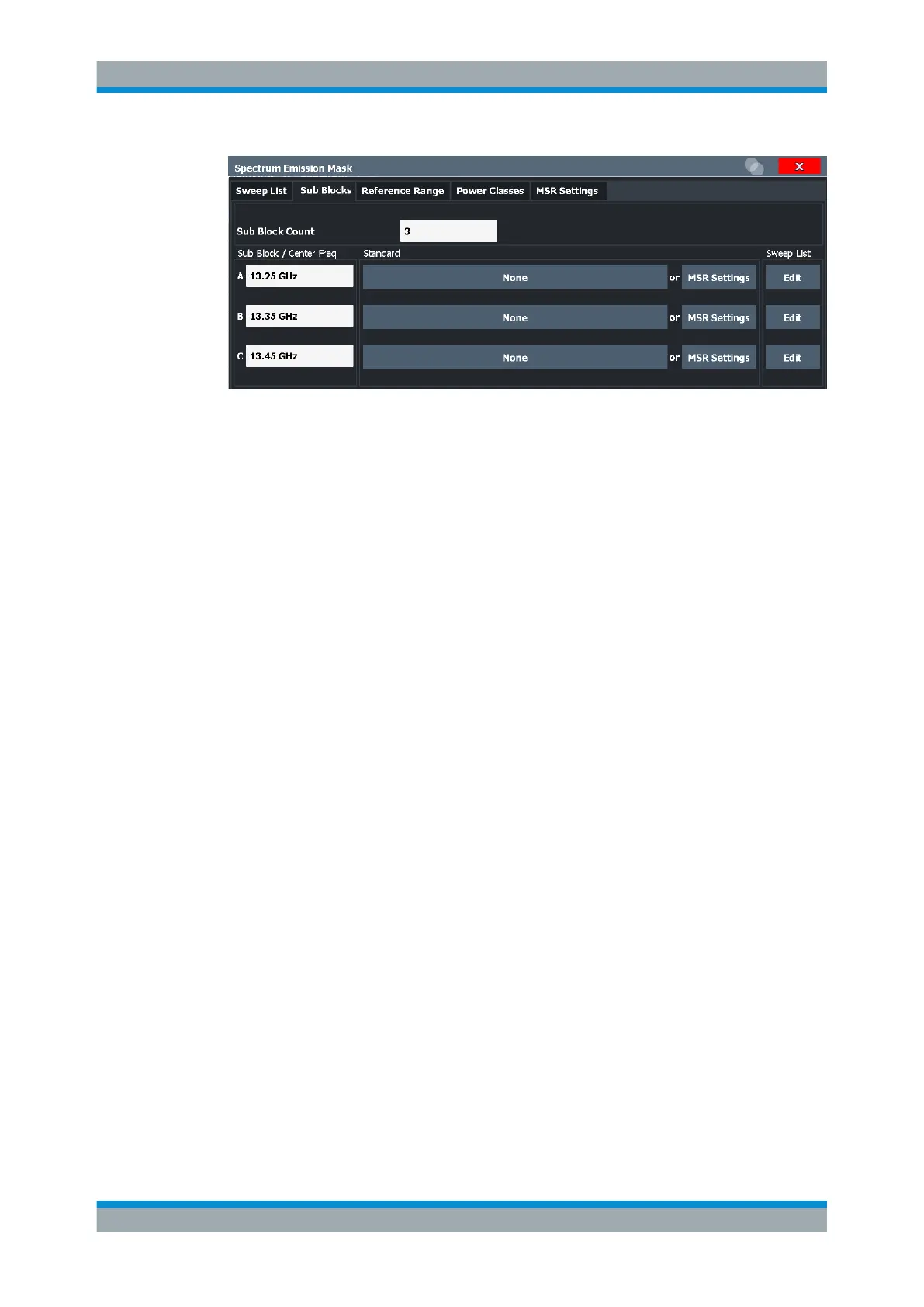

Sub Block Count

Defines the number of sub blocks. By default, the familiar SEM measurement with just

one single block of ranges is configured.

Remote command:

[SENSe:]ESPectrum<sb>:SCOunt on page 920

Sub Block / Center Freq

Defines the center frequency for an individual sub block. The center frequency deter-

mines the reference range used for each block.

For measurements with only one sub block, this setting corresponds to the global set-

ting in the "Frequency" settings (see Center Frequency).

Remote command:

[SENSe:]ESPectrum<sb>:SCENter on page 920

Standard / MSR Settings

Defines the use of a standard settings file or a multi-standard radio configuration for a

particular sub block. For details, see Chapter 7.6.5.6, "Standard Files", on page 263

and Chapter 7.6.5.5, "MSR Settings", on page 260.

Note that either a standard or an MSR setting can be selected; if one is selected, the

other is disabled.

Remote command:

[SENSe:]ESPectrum<sb>:PRESet[:STANdard] on page 918

Chapter 14.5.7.3, "Configuring a Multi-SEM Measurement", on page 920

Edit Sweep List

Switches to the "Sweep List" tab of the "Spectrum Emission Mask" dialog box to con-

figure the individual frequency ranges and mask limits for the corresponding sub block.

See Chapter 7.6.5.1, "Sweep List", on page 251.
