Dual-tone signal

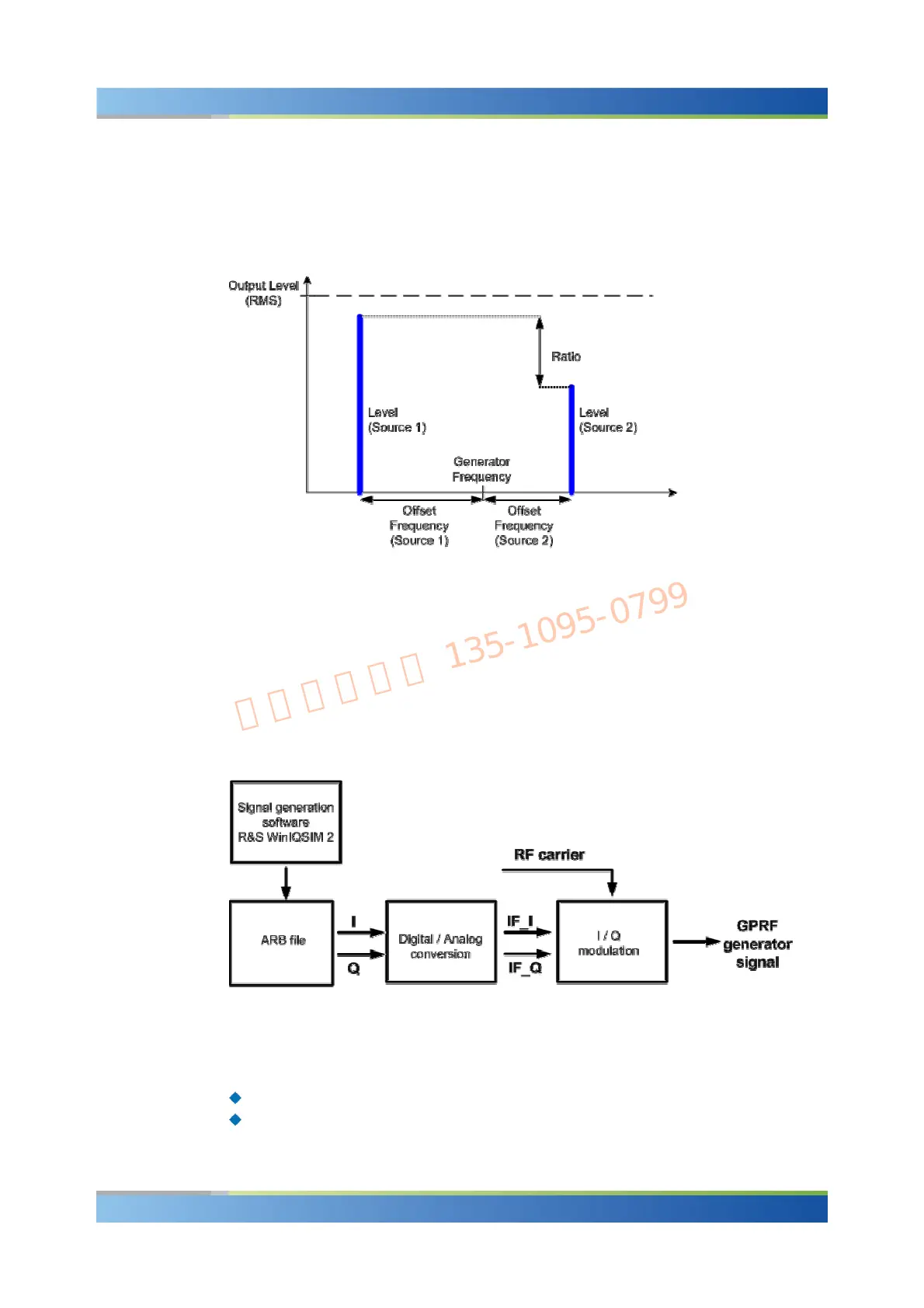

The dual-tone signal is a superposition of two CW signals Source 1 and Source 2 at
the output connector. The R&S CMW 500 provides two independent parameter sets for
the two signals. The level of the signals is set implicitly by means of the sum level
("Output Level (RMS)" and the "Ratio".
Dual-tone signal
7.1.1.2 Arbitrary RF Generator (Option R&S CMW-B110 A)
In arbitrary (ARB) baseband mode the R&S CMW 500 uses a waveform file (*.wv, ARB
File) to generate the GPRF generator signal. Waveform files define digital baseband
signals. The R&S CMW 500 converts the digital waveform into anlog I/Q signals and
modulates them onto the RF carrier. The modulated RF signal is fed to the selected
RF connector.
ARB generator
The R&S CMW 500 supports waveform files (.wv) generated with the Signal
Generation Software R&S WinIQSIM 2.
In arbitrary mode, the GPRF generator provides a wide range of modulated RF signals:
RF signals in accordance with different digital network standards
Customized RF signals using with various modulation schemes
