R&S
®
CMW 500 GPRF Applications
GPRF Measurements and Generators
Operating Manual 1202.3986.32 – 03 141

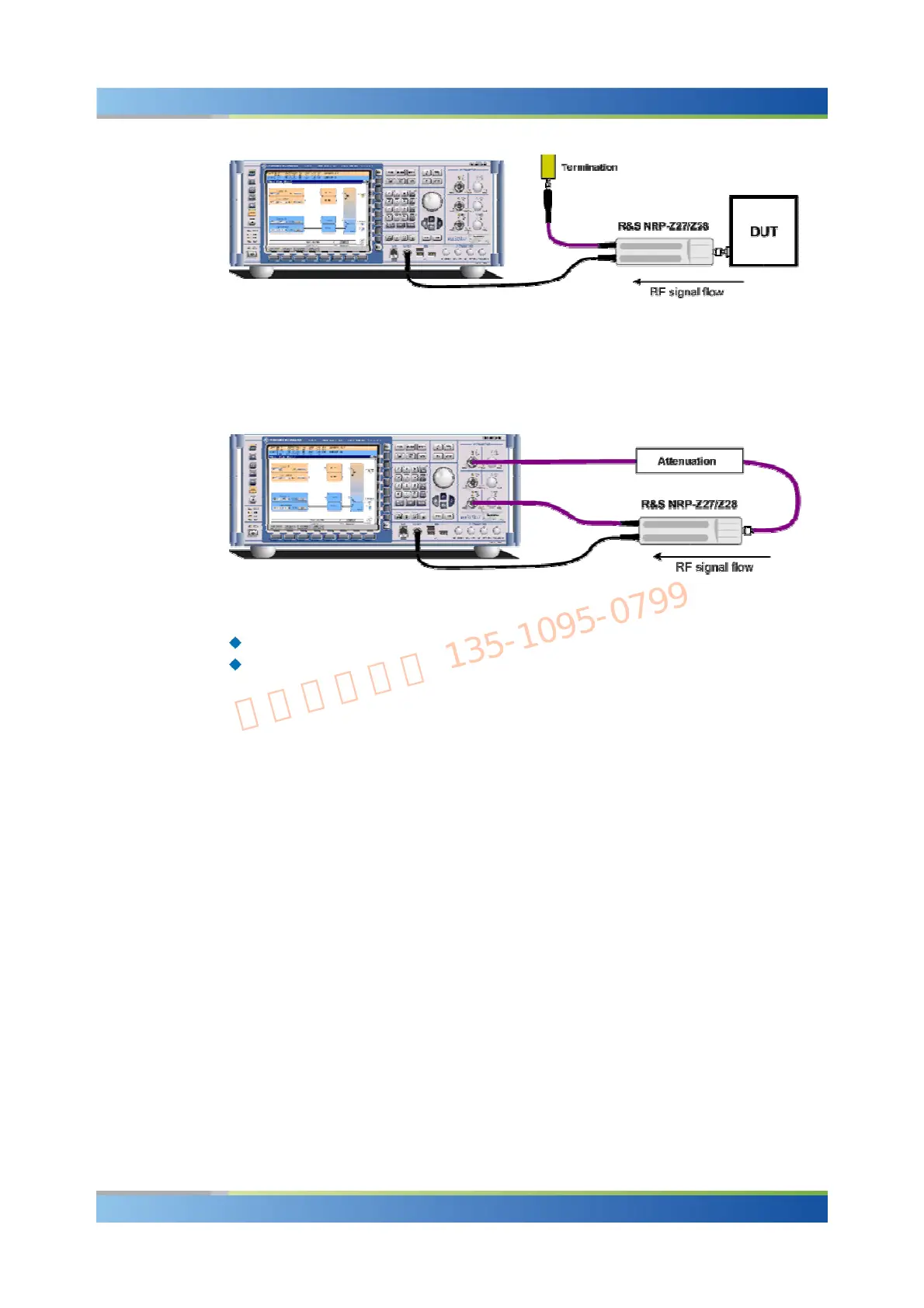

Test setup for external power sensor measurement on a DUT
An external power sensor can be used also to monitor the RF power at a particular
point in the test setup. e.g. in order to determine an attenuation in the test setup and
"calibrate" the RF source. Moreover it is possible to feed the sensor output signal back
to the R&S CMW 500, e.g. in order to perform an additional "Power" measurement.
Test setup for external power sensor measurement power calibration
The R&S CMW 500 supports the following sensor types:
R&S NRP-Z27
R&S NRP-Z28
Refer to the relevant documentation for information about the sensor properties.
7.1.3.2 Measurement Settings
The sensor is controlled via the SENSOR connection. All control parameters are
accessible from the "External Power Sensor Configuration" dialog; see External Power
Sensor Parameters.
