R&S
®
CMW 500 WiMAX Applications
WiMAX GUI Reference
Operating Manual 1202.3986.32 – 03 381
10.2.1.5 Multi Evaluation Configuration: Zone Definition
The "Zone Definition" parameters define the logical sub-channels for the measured UL
(PUSC) permutation zone. The multi-evaluation measurement analyzes a burst which
consists of several sub-channels; refer to the Map of Bursts settings.

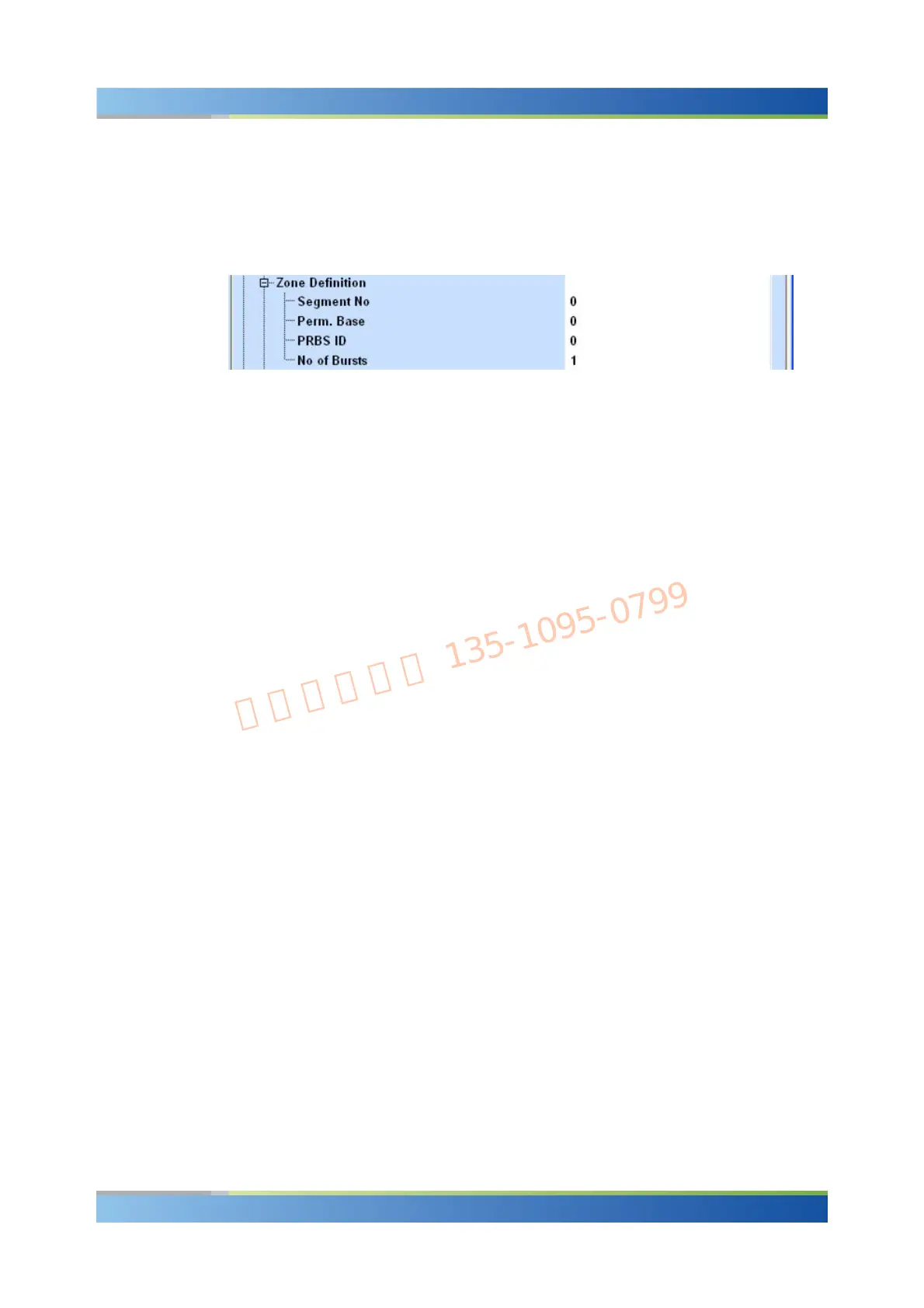

Multi Evaluation Configuration: Zone Definition
Measurement Parameters > Zone Definition > Segment No.
Specifies the segment number associated with the sub-channels. The total set of UL
sub-channels is grouped into three segments. One segment is used for deploying a
single instance of the MAC.
GPIB command: CONFigure:WIMax:MEASurement<i>:MEValuation:ZDSNo
Measurement Parameters > Zone Definition > Zone Length
Specifies the duration of the measured zone as an integer number of OFDMA symbols;
see Frame Settings and Burst Selection. The R&S CMW 500 uses a fixed 18-symbol
zone length.
GPIB command: CONFigure:WIMax:MEASurement<i>:MEValuation:ZLENgth
Measurement Parameters > Zone Definition > Perm Base
Specifies the UL_PermBase parameter which defines the assignment of tiles to sub-
channels; see Frame Settings and Burst Selection.
GPIB command: CONFigure:WIMax:MEASurement<i>:MEValuation:PBASe
Measurement Parameters > Zone Definition > No. of Bursts
Specifies the number of bursts within the measured UL permutation zone. The R&S
CMW 500 measures a single burst.
GPIB command: CONFigure:WIMax:MEASurement<i>:MEValuation:NOBursts
10.2.1.6 Multi Evaluation Configuration: Map of Bursts
The "Map of Bursts" parameters define the properties of the analyzed burst within the
UL PUSC permutation zone including the sub-channel and slot allocation. For
background information refer to Frame Settings and Burst Selection.
