Detailed Views: Spectrum Emission Mask

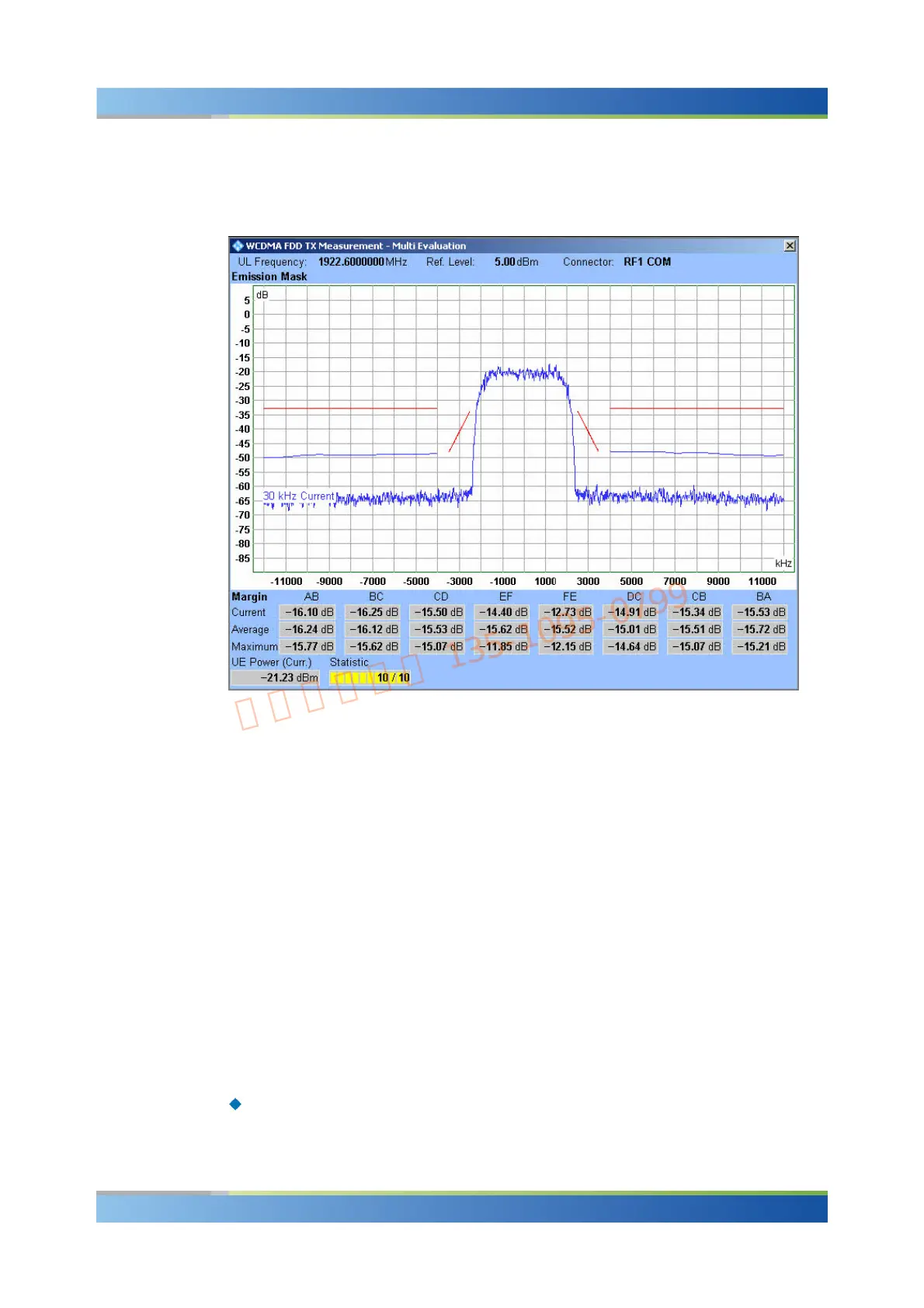

The spectrum emissions in the "Preappointed Slot" are displayed in a diagram (see
Overview) and as a table of statistical results.
WCDMA Multi Evaluation: Emission Mask
The emission mask results are calculated in resolution bandwidths of 30 kHz (lower
blue curve, including the center) and 1 MHz (upper curves at offset frequencies larger
than 3.5 MHz). The table below the diagram contains the values which are relevant for
the limit check; see "Conformance Requirements".
Current
RMS power in the current measurement interval, averaged over a limit line section.
Average
Average of the "Current" values referenced to the last statistics cycle; see Averaging.
Maximum
Maximum of all "Current" values since the start of the measurement.
The "UE Power" and the "Statistic" results are calculated as described above (Detailed
Views: Modulation and Code Domain Power).
Press "Display > ...Trace Select..." to select the statistical results to be displayed in
the diagram.
