[STX]70,1,N,DM:03FEFFE0536C92A8･･････
[CR][LF][ETX]
• Write successful (IDm read fail)
[STX]9,1,I,DM:[CR][LF][ETX]
• Write fail (IDm read failed)
[STX]9,0,I,ID:[CR][LF][ETX]
[Supplemental explanation]
• The write status and IDm is returned when [DC2]PK is received after RFID write.
• Although write is successful status will be returned without data if you fail to read IDm since IDm
read will be done separately from write.
• Return data remains the same when code write is specified without print data. Previous value
will be returned.

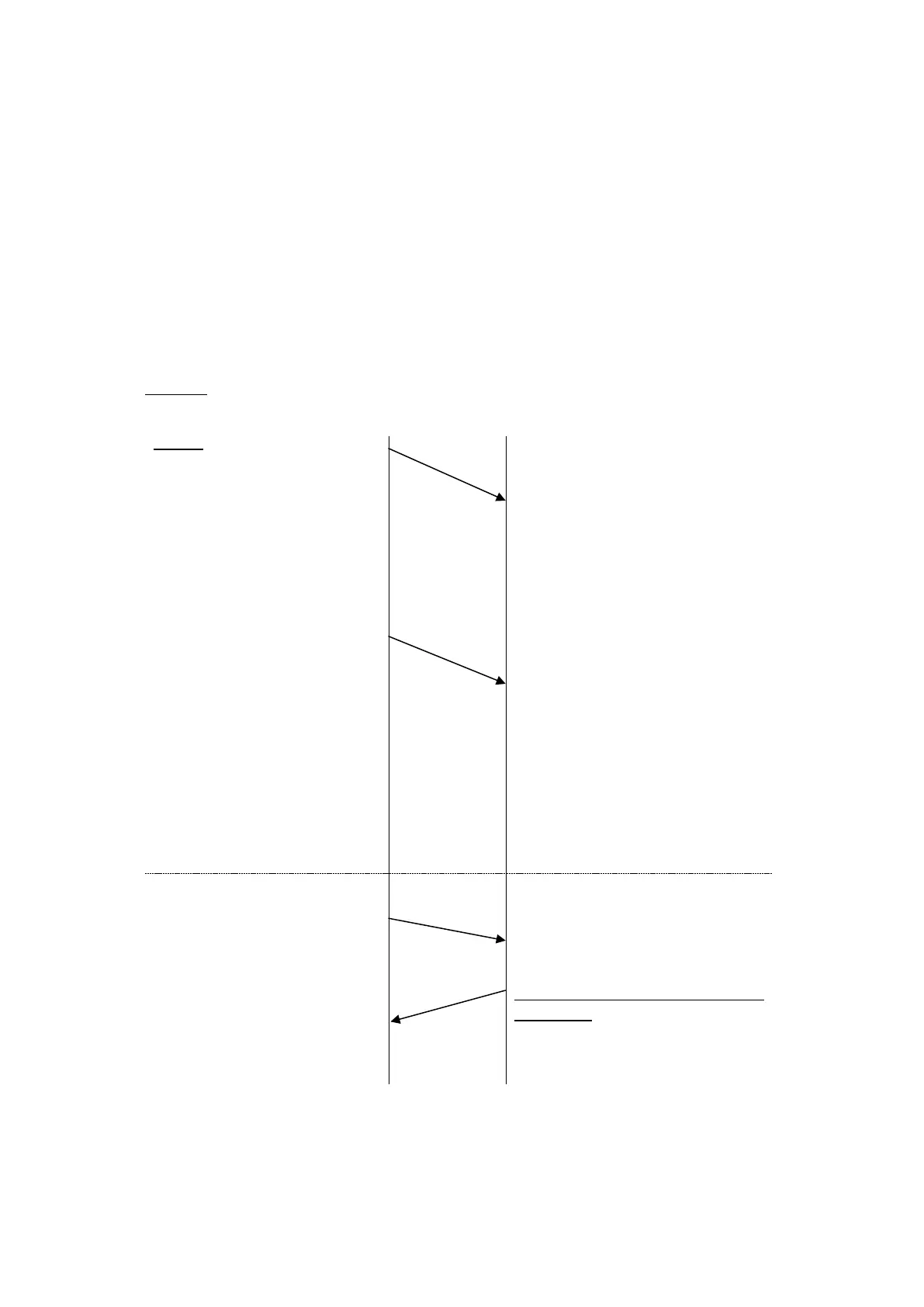

<RU>,01 return sequence (for a tag having the IDm of
03FEFFE0536C92A8）
Host
Printer
<RU>
,
01
*1
Return based on [DC2]PK
The settings of return based on [DC2]PK are
retained
Enabled until power is turned OFF
<RK>4,D13,4912345678904
Write command
Acquire ID
m
immediately after successful
write, and store it in the me
mory with the
success status.
[DC2]PK
Return the write status (write success) and
ID
m
data
[STX]72,1,N,DM:03FEFFE0536C92A8
･･････
[CR][LF][ETX]
*2
*1 Most common commands such as <A>, <Z> are not described in the above diagram.
*2 The content of the return IDm is an example. The actual value varies depending on the tag.
[Supplemental explanation]
