Section 04 ENGINE (2-STROKE)

Subsection 04 (TOP END)

F06D0TA

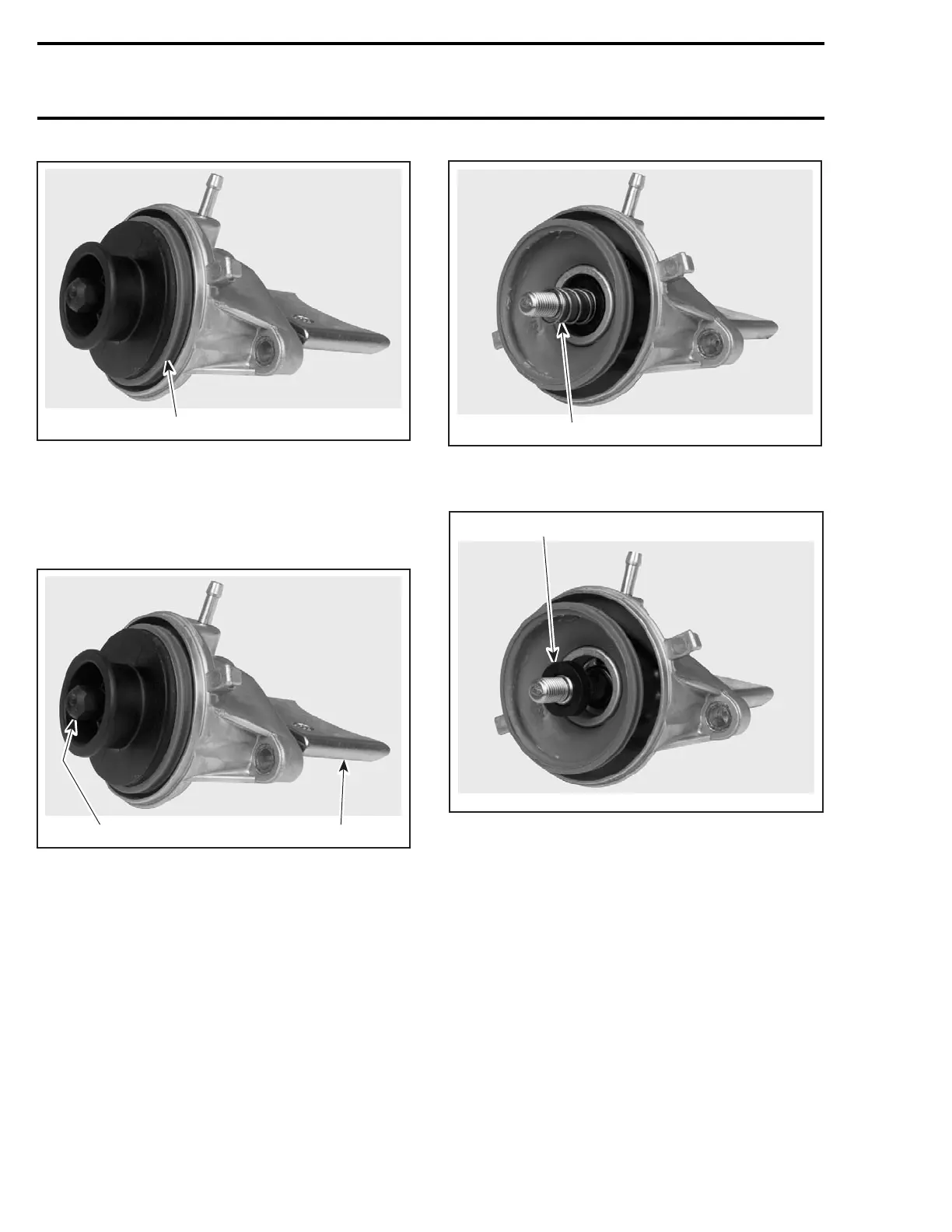

1. Bellows removed from piston

Unscrew valve piston no. 20 from sliding valve

no. 22.

NOTE: Hold the sliding valve to prevent it from

turning.

F06D0TB

1. Unscrew piston

2. Hold sliding valve

Remove compression spring no. 29.

A06D26A

1. Remove spring

Remove supporting ring no. 28.

F06D27A

1. Remove supporting ring

Remove O-ring no. 23.
