Section 04 ENGINE (2-STROKE)

Subsection 04 (TOP END)

F06D28A

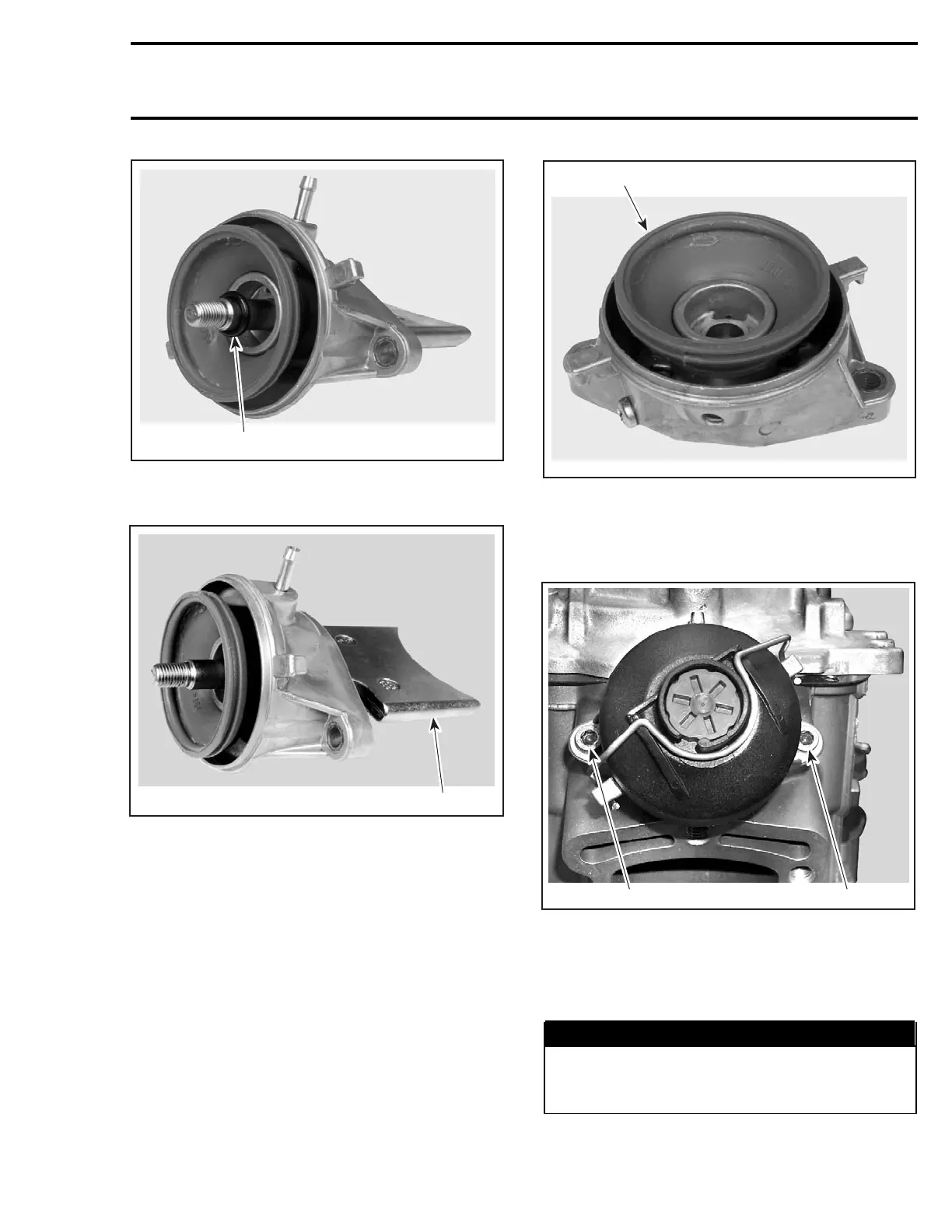

1. Remove O-ring

Remove sliding valve no. 22.

F06D0UA

1. Remove sliding valve

Remove bellows no. 21.

F06D0VA

1. Remove bellows

947 DI Engines

Loosen Allen screws no. 26 each side of RAVE

valve.

F12D0UA

1. Remove screws

Remove RAVE valve no. 15.

Remove the cover no. 18 of the valve by releasing

the spring no. 16.



WARNING

Firmly hold cover to valve base. The com-

pression spring inside the valve is applying

pressure against the cover.
