Section12ELECTRICALSYSTEM
Subsection 04 (INSTRUMENTS AND ACCESSORIES)
Display Selection
Repeatedly pressing the MODE button scrolls
the following displays: Compass, tachometer,
speedometer, average speed, distance, hourme-
ter, water temperature, exterior temperature,
depth gauge (if so equipped),andtriphourme-
ter.

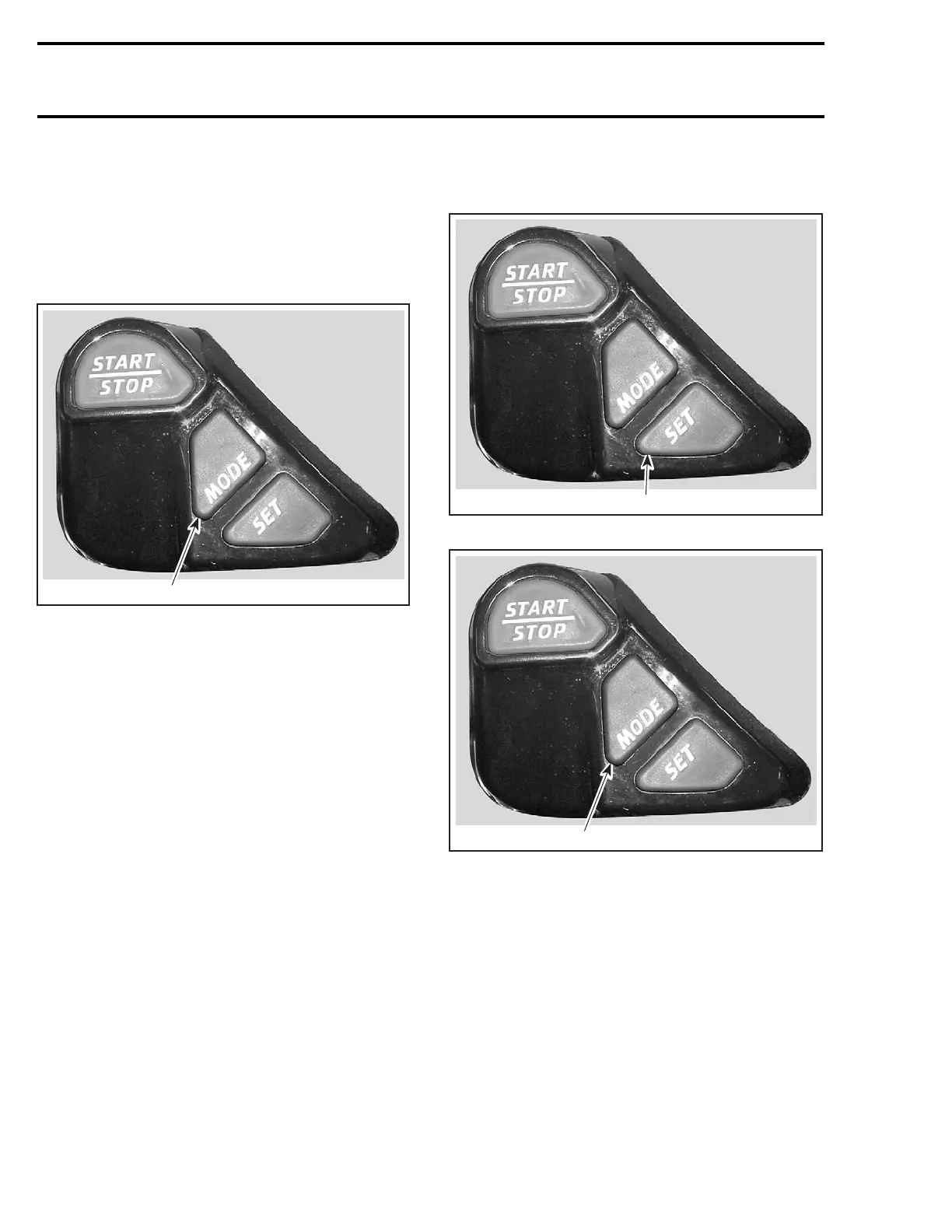

F18L09C
1
1. Press to change display mode
When you are satisfied with your choice, stop
pressing the button and it will become active.
The display you have chosen will remain until it is
changed.
Display Priorities
As a self test at start-up, the needles of the
speedometer and tachometer will sweep to their
maximum position, all LCD segments and the
LED will turn on for 3 seconds each time the infor-
mation center is activated (when safety lanyard is
installed). This allows the driver to validate they
areallworkingproperly.
When the information center is activated, the last
function set will be displayed.
In the event of a warning message, the message
will blink and override the units display unless
MODE button is pressed. The display will then
display the last function after 10 seconds.
If more than one warning message occurs, the
blinking messages will scroll every 4 seconds.
Other Functions
The following describes how to select other avail-
able functions.
Language Option
While in the compass mode:
F18L09D
1
1. Press and hold for 2 seconds
F18L09C
1
1. Repeatedly press
598 smr2004-Complete Line Up
