Section 13 PROPULSION
Subsection 02 (DRIVE SYSTEM)
F08I04B
1

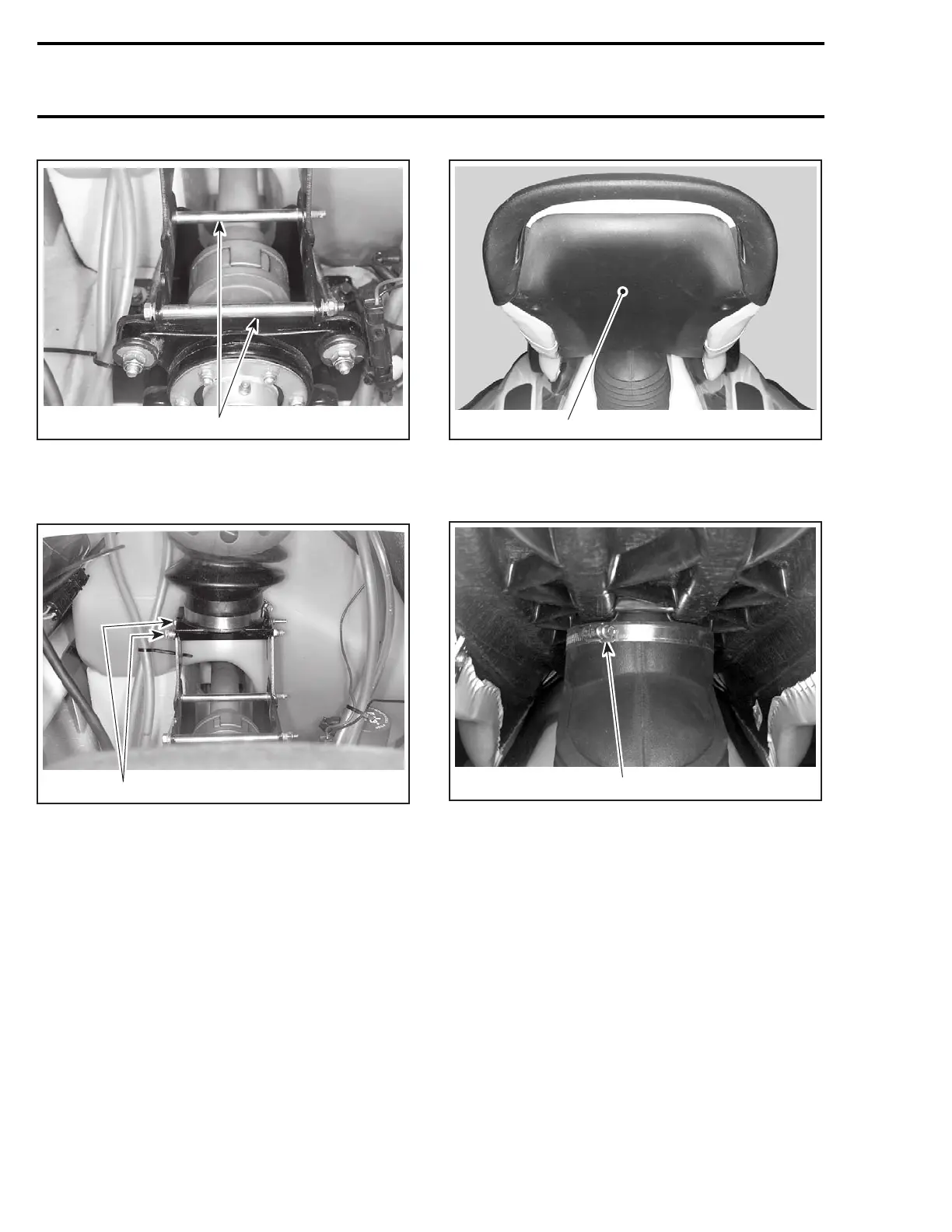

1. Remove bolts, lock nuts and sleeves
Loosen bolts and lock nuts retaining the lower
support of the shock absorber.
F08Q01A
1
TYPICAL
1. Remove bolts and lock nuts
Loosen 4 screws and remove bottom cover of
seat.
F08L11A
1
1. Remove cover
Loosen gear clamp retaining the outer boot of the
shock absorber.
F08L12A
1
1. Loosen gear clamp
Tilt seat.
Remove front drive shaft.
Seal Carrier of Mid Bearing
XP DI Models
To remove the seal carrier from support, loosen
the 6 nuts no. 21.
