Section13PROPULSION
Subsection 02 (DRIVE SYSTEM)
2

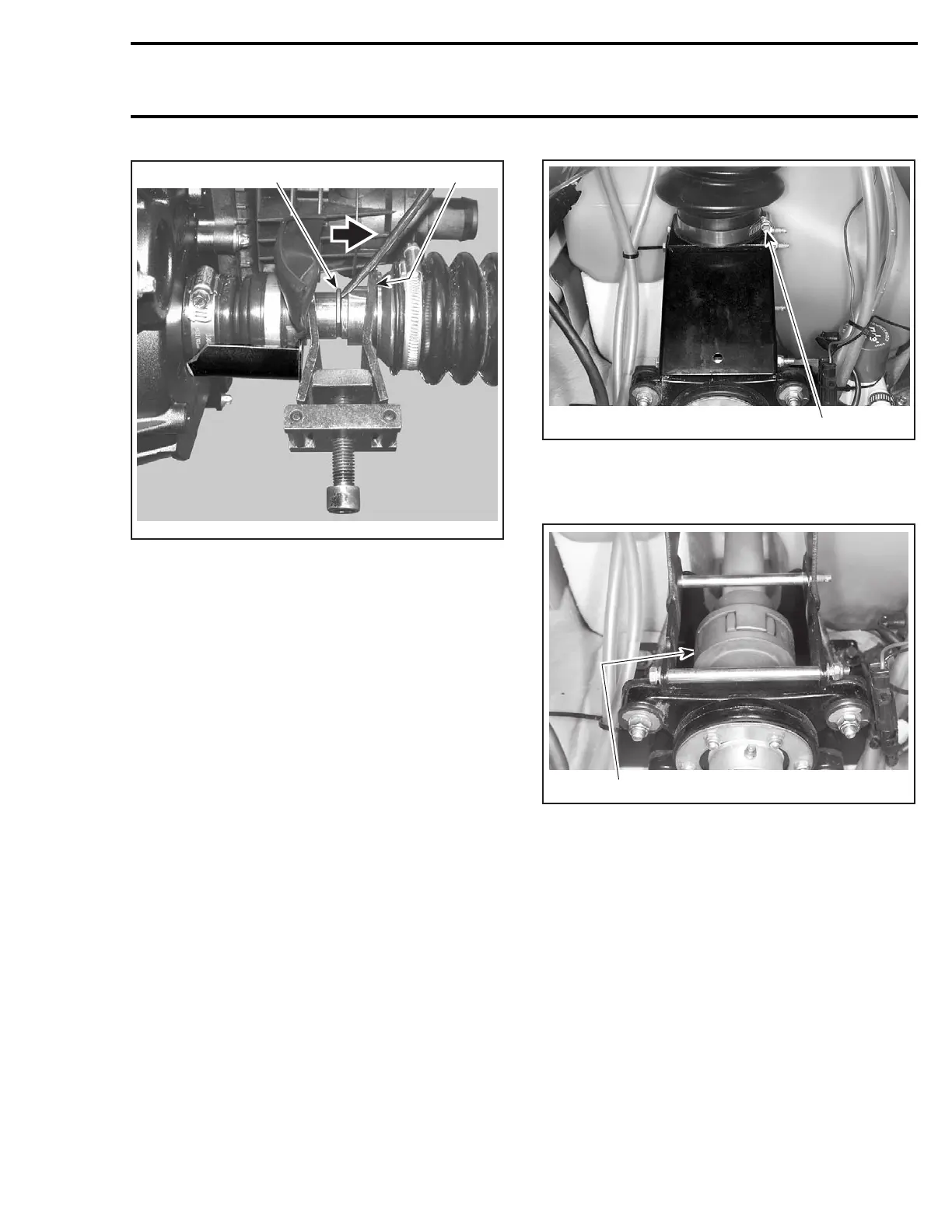

F18I0BA
1
TYPICAL
1. Largest opening here
2. Remove circlip
Remove drive shaft holder tool then drive
shaft/floating ring tool.
NOTE: Use this sequence to minimize the amount
of movement the drive will slide back into PTO
seal assembly.
Drive Shaft
GTI Series
Pull out drive shaft
NOTE: If the drive shaft is jammed into PTO fly-
wheel, it may be necessary to remove PTO fly-
wheel from engine to then remove drive shaft.
4–TEC Models
Place rags under PTO housing to prevent spillage.
If spillage occurs, clean immediately with the pul-
ley flange cleaner (P/N 413 711 809) to prevent oil
stains.
Remove drive shaft.
NOTE: It may require a slight jerk to the rear to re-
move the drive shaft from the PTO seal assembly.
Rear Drive Shaft
XP DI Models
Remove rear access panel.
Remove protective plate no. 18.
F08I03B
1
1. Remove protective plate
Pull rear drive shaft until coupler no. 19 is disen-
gage from splines.
F08I04A
1
1. Pull drive shaft to disengage coupler from splines
Remove rear drive shaft.
Remove coupler no. 19.
Front Drive Shaft
XP DI Models
Remove PTO flywheel guard no. 1.
Remove bolts, lock nuts and sleeves from sup-
port.
smr2004-Complete Line Up 661
