Section 02 MAINTENANCE
Subsection 04 (STORAGE)

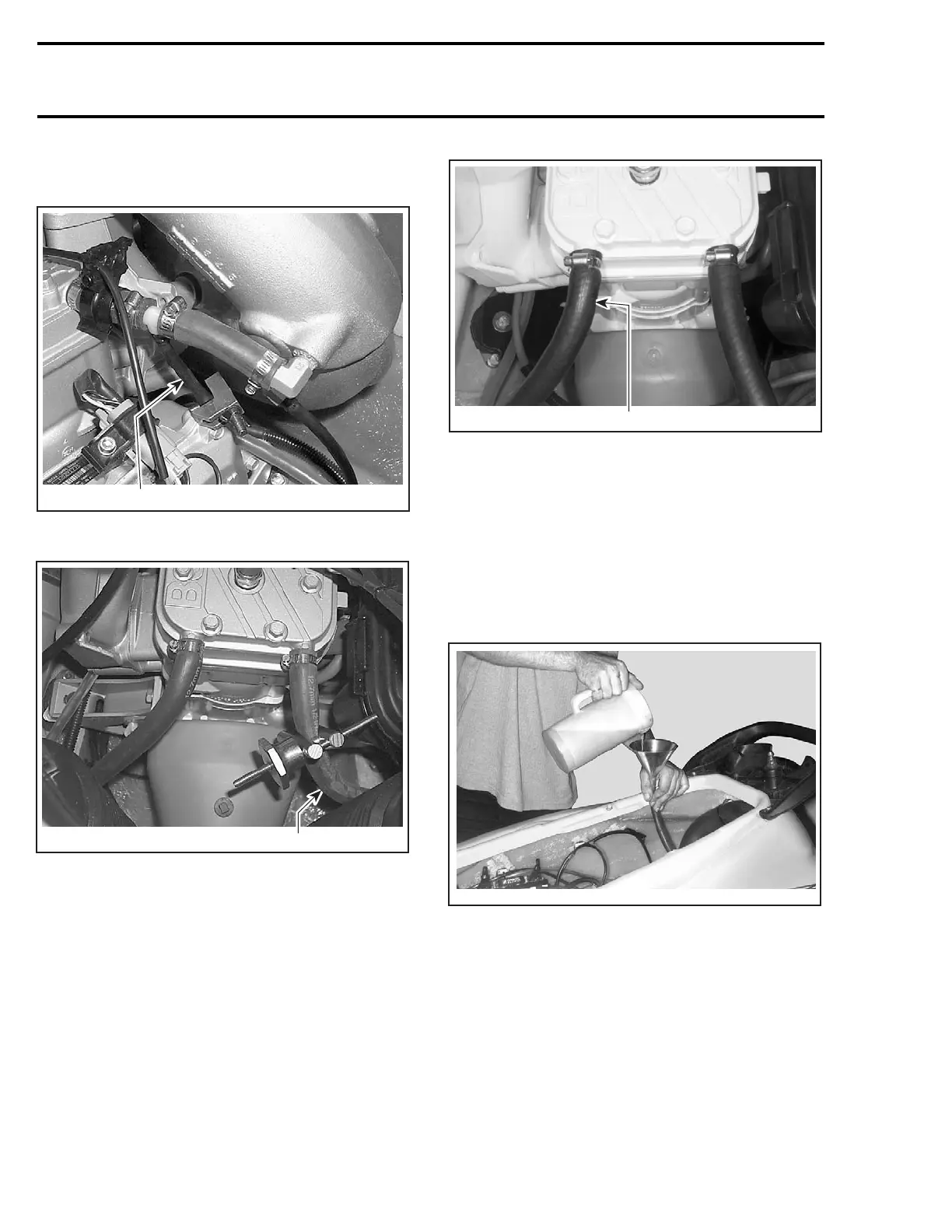

Install hose pincher on injection hose going to
tuned pipe.
F17E03A
1
GTI AND GTI LE MODELS — 717 ENGINES
1. Hose pincher on injection hose going to tuned pipe
F17E01A
1
717 AND 787 RFI ENGINES
1. Engine water outlet hose
Hose Disconnection
Some hoses have to be disconnected. Discon-
nect hoses at the following location.
F06E0EB
1
717 AND 787 RFI ENGINES
1. Disconnect engine water inlet hose
717 Engines
Temporarily install a short piece of hose to engine
water inlet at cylinder head.
All 2-Stroke Models except DI
Insert a funnel into hose and pour antifreeze in
engine until the colored solution appears at the
cooling system bleed outlet.
F07E0LA
787 RFI Engines
Disconnect hose just above T-fitting as shown.
44 smr2004-Complete Line Up
