Section 18 WIRING DIAGRAM

Subsection 01 (WIRING DIAGRAMS)

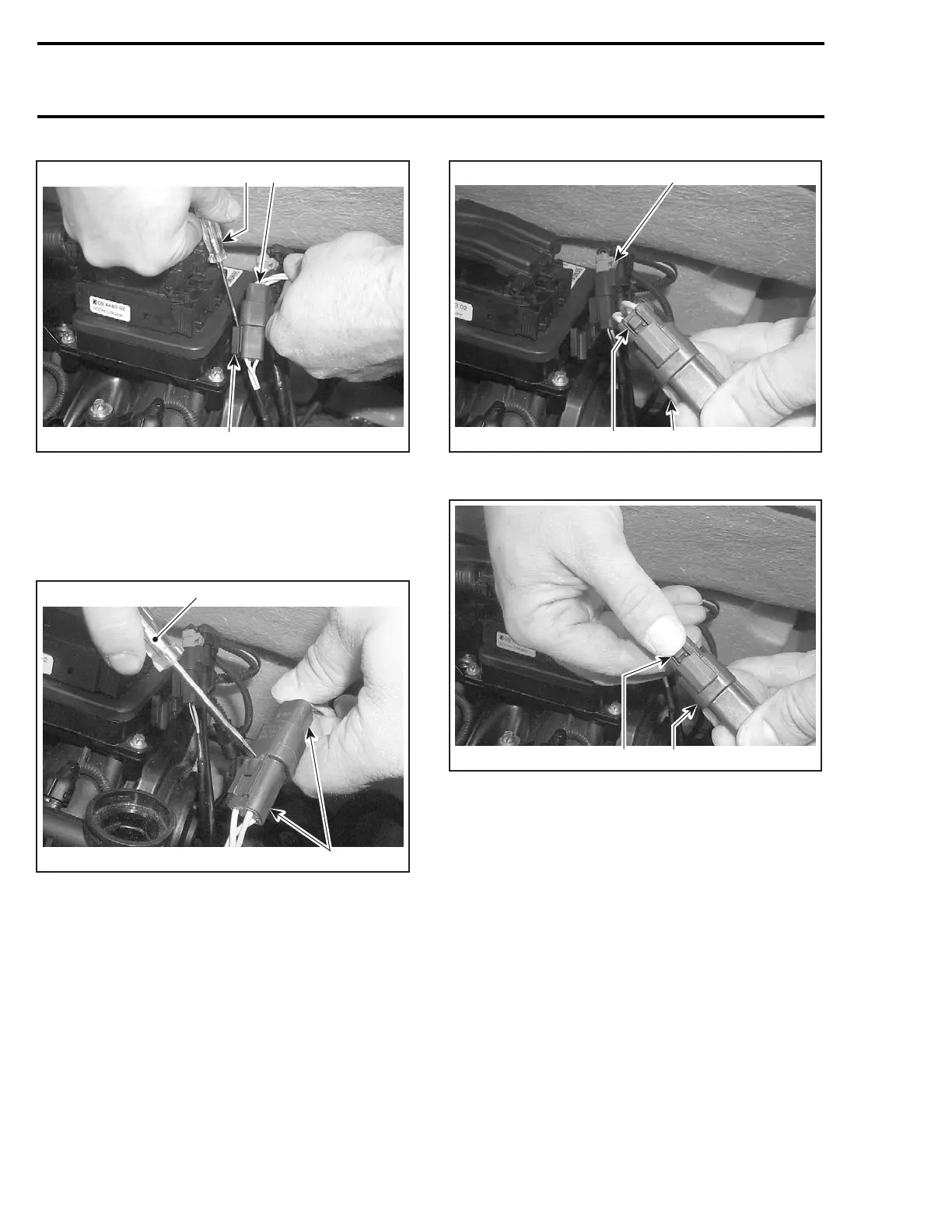

F18Z0KA

1. Engine connector bracket

2. Deutsch connectors

3. Flat screwdriver

To disconnect the two Deutsch connectors, slide a

flat screwdriver between each other to disengage,

press the release button and disconnect them.

F18Z0LA

1. Flat screwdriver

2. Deutsch connectors

F18Z0MA

1. Release button

2. Deutsch connectors

F18Z0NA

1. Deutsch connectors

2. Press release button

788 smr2004-Complete Line Up
