5. Configuring the encoder:
– Since you selected Telegram 4 in the axis Drive configuration dialog, the Encoder
drive configuration dialog provides a new "Encoder in telegram" entry in the navigation
tree. When you select the "Encoder in telegram" entry, the right pane displays two
entries, Encoder 1 and Encoder 2, with encoder values.
– Motion control assigns one of the encoders as the drive encoder and the other
encoder as the machine encoder. When you select either Encoder 1 or Encoder 2,
you determine which encoder is assigned as the drive encoder. The encoder that you
do not select is assigned as the machine encoder.

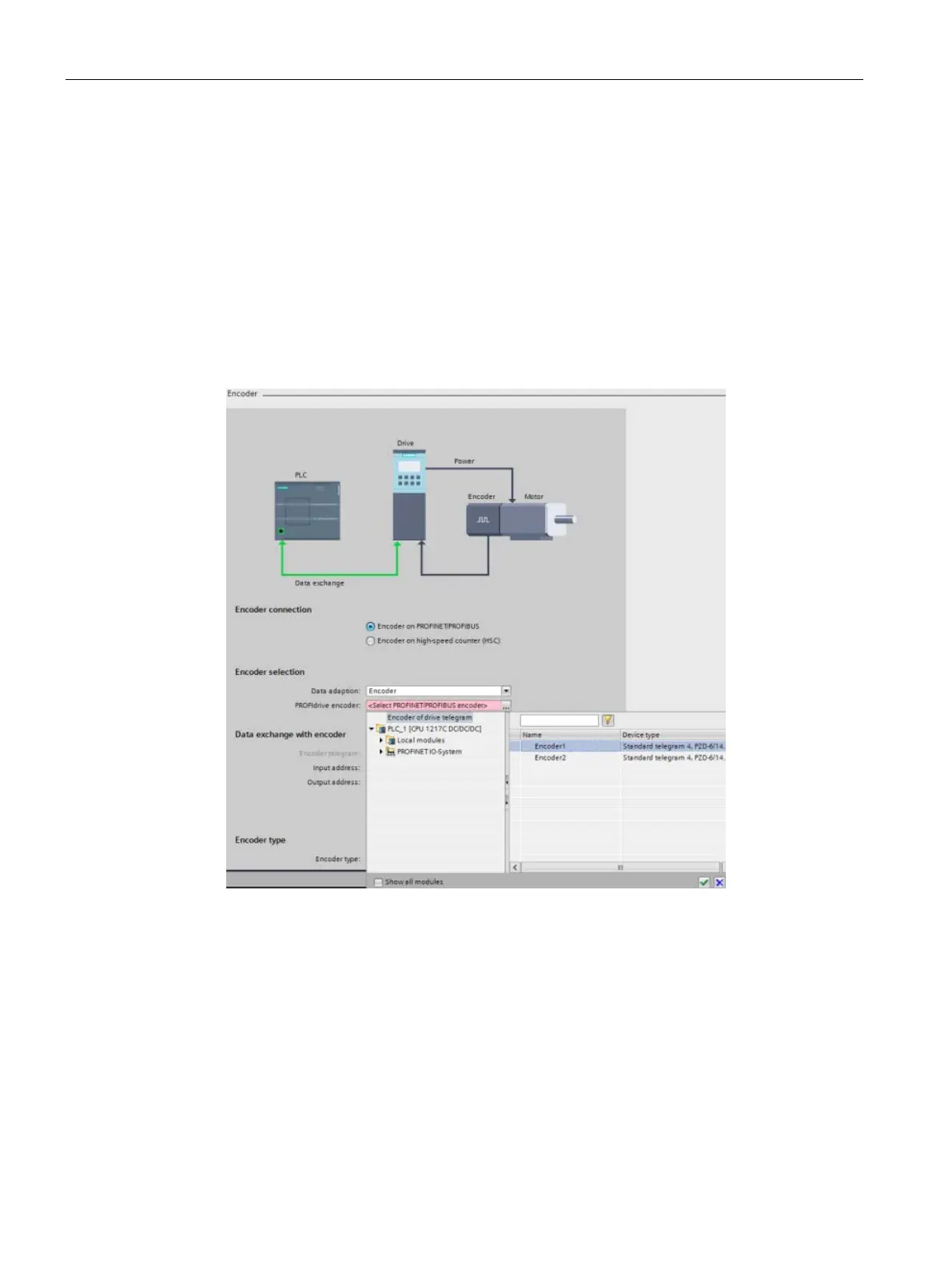

– After you select the drive encoder, click the green check mark button to enter the
configuration:
